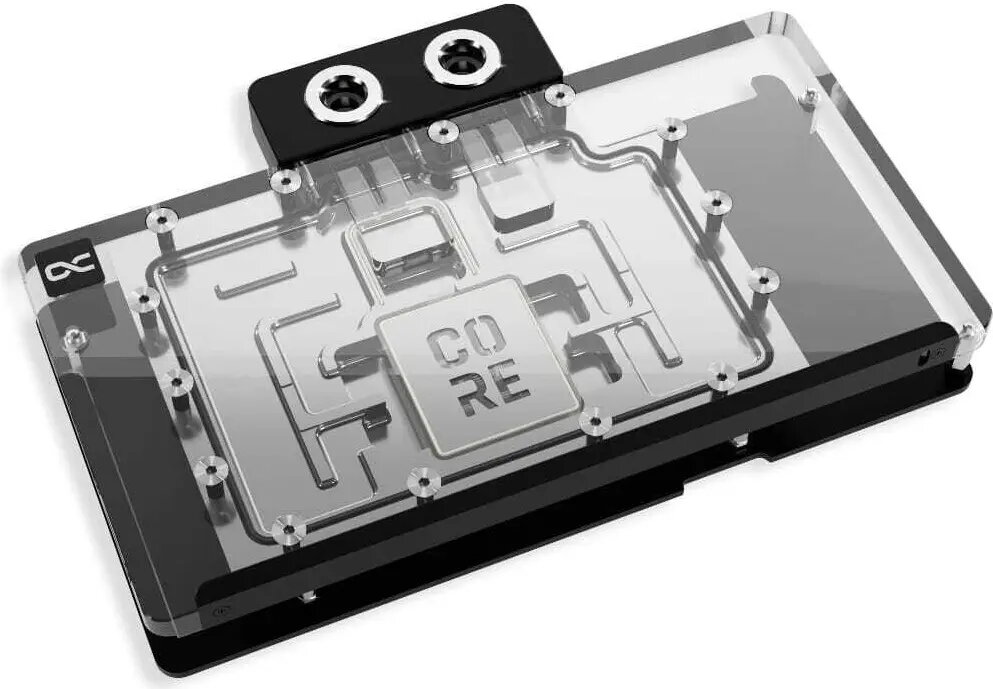

Cooling block Alphacool Core RX 9070 XT TUF+ Prime Transparent Chrome backplate

Alphacool Core RX 9070 XT TUF+ Prime Transparent Chrome backplate is a full-cover cooling block specifically designed for the RX 9070 XT graphics card series. Built for liquid-cooling configurations, the block provides direct-contact cooling for the GPU and nearby components while the transparent chrome backplate gives visual access to PCB areas and adds structural support. The unit is intended to improve heat transfer, reduce operating temperatures and help maintain stable performance during sustained loads.

Advantages

The cooling block uses a full-cover design to make direct thermal contact with the GPU and surrounding components, increasing overall heat dissipation efficiency compared with air-only coolers. The transparent chrome backplate enables visual inspection of PCB components and complements the cooling assembly with added rigidity to the graphics card. Compatible with standard liquid-cooling loops, the unit supports improved thermal stability under heavy workloads and helps reduce fan noise by offloading thermal load to the loop.

Suitable for

• Custom liquid-cooled gaming PCs using RX 9070 XT series graphics cards
• Workstations requiring lower GPU temperatures for extended rendering or simulation sessions
• System builds where visual presentation of internal components is desired
• Overclocking setups aiming for improved thermal headroom

Key specifications

• Compatibility: designed for RX 9070 XT series graphics cards (full-cover block form factor)
• Cooling method: liquid cooling, direct-contact full-cover block for GPU and nearby components
• Backplate: transparent chrome finish providing visual access and structural reinforcement
• Material interface: metal cold plate contacting GPU and component pads (nickel-plated or similar finish typical for Alphacool blocks)
• Connection: standard G1/4" threading for coolant inlet/outlet (suitable for common fittings and tubing)
• Mounting: includes mounting hardware to attach to compatible PCB layouts of RX 9070 XT cards

How to use

Install the Alphacool Core RX 9070 XT TUF+ Prime Transparent Chrome backplate as part of a closed liquid-cooling loop following the manufacturer's mounting instructions. Begin by removing the original cooling solution from the graphics card, clean thermal surfaces, apply appropriate thermal interface materials to the GPU and memory/VRM contact points, then align and fasten the full-cover block to the PCB using the supplied hardware. Connect the block to your loop using G1/4" fittings and verify leak-free operation before powering the system. Ensure correct orientation and sufficient clearance for adjacent components within the chassis.

Usage recommendations

Use coolant compatible with Alphacool components and perform leak testing at low pump speed before initial operation. Periodically check fittings and coolant condition, and follow ESD-safe handling when installing or servicing the block.
