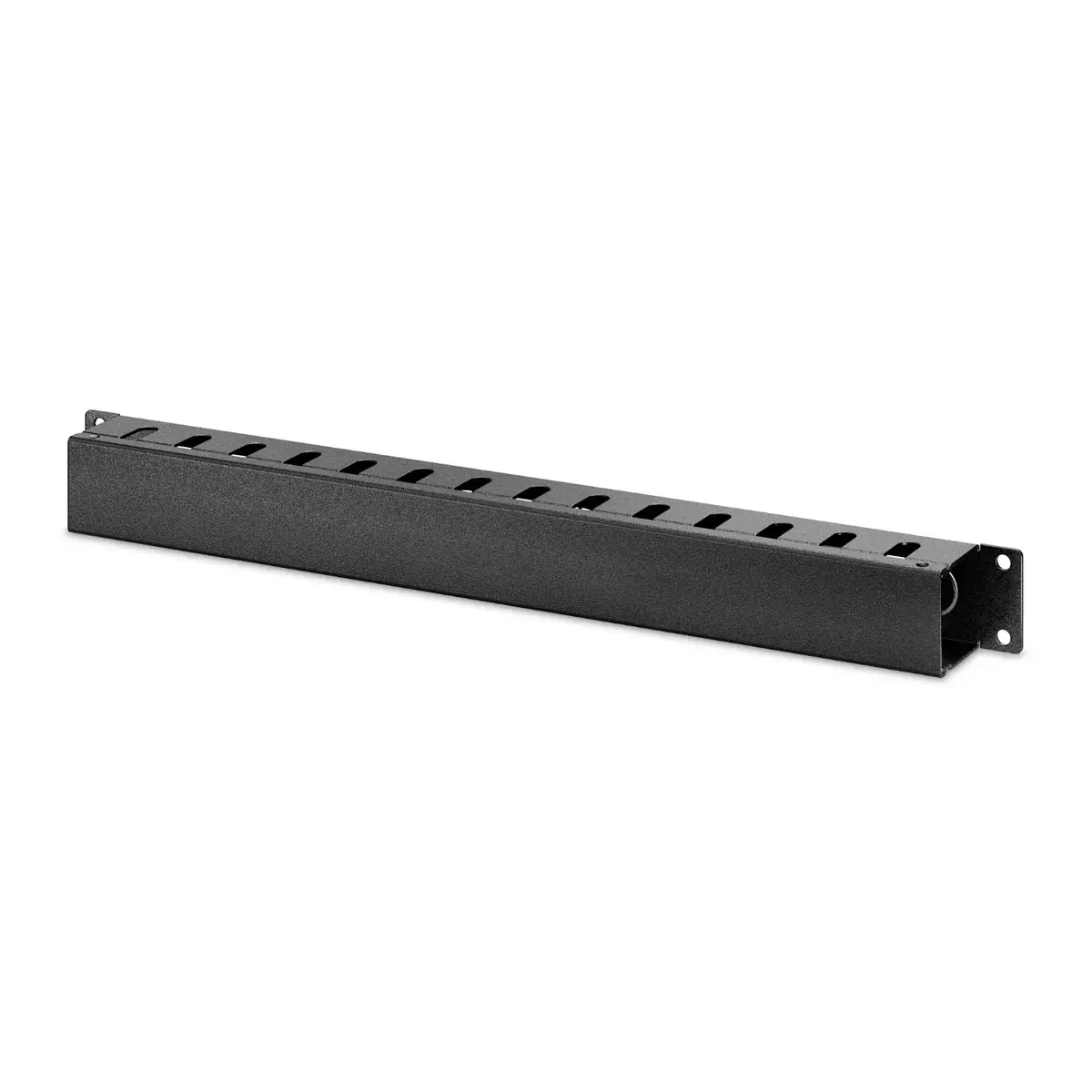

Cable management panel APC ER7HCM

The APC ER7HCM is a 1U cable management panel for 19" racks that provides a compact and structured solution to organize network, power and patch cables. Finished in black with a width of 483 mm and a height of 45 mm, the panel is intended to be mounted in standard rack enclosures and helps maintain a neat cable routing path. It reduces cable clutter, contributes to improved airflow around equipment and supports a safer, easier-to-maintain rack environment.

Advantages

This cable management panel occupies a single rack unit while offering a clean routing surface for multiple cables, helping to prevent tangles and strain on connectors. The slim profile preserves valuable rack space and the durable finish resists abrasion and frequent handling. By centralizing cable paths, it assists in maintaining consistent airflow and simplifying future changes or audits of rack cabling.

Suitable for

• Organizing patch cables in data center racks
• Managing power and network cables in server rooms
• Improving cable routing in telecom cabinets
• Small to medium enterprise network closets

Key specifications

• Rack unit height: 1U (approximately 45 mm)
• Mounting standard: 19-inch rack compatible
• External width: 483 mm
• Finish: black
• Form factor: flat panel for horizontal cable routing
• Pack quantity: 1 piece

How to use

Install the panel in an available 1U position of a 19" rack using appropriate rack screws and cage nuts if required by the rack. Route cables along the panel keeping them parallel to the rack face and distribute cable bundles to avoid excessive stress on connectors. For changes, loosen cable ties or straps and re-route individual cables as needed. Regular visual checks will help ensure fasteners remain secure and cable paths remain unobstructed.

Usage recommendations

For best results, group cables by type (data, power, fiber) and use velcro straps or reusable cable ties to hold bundles to the panel. Avoid overfilling the panel; leave space for future additions and ensure airflow is not restricted around active equipment.
