UPS APC Smart-UPS X SMX3000HV

Name: UPS APC Smart-UPS X SMX3000HV SMX3000HV
Brand: APC
SKU: 16852
Price: 2760.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The APC Smart-UPS X SMX3000HV is a line-interactive UPS with a capacity of 3000VA and 2700W output power. It features 8 C13 and 2 C19 outlets, USB connectivity, and expandable runtime. With a sealed lead-acid battery providing 738 VAh, it offers a typical backup time of 6.25 minutes at full load. Its compact rackmount/tower design is 4U high, making it suitable for various setups. Compliance with multiple certifications ensures reliability and safety.

Available at price 2,760.49 €: 1 pcs.

Total available for order: 193 pcs.

Warranty: 2 Years

SKU: 16852

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

12.10.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

12.10.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

15.10.2026 {{selectedOffer.courierDeliveryString}}

From 53.99 € (Weight: 48.60 kg)

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 920.16 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment, Leasing for legal entities

36 months installment: from 76.68 euros per month

Leasing for legal entities: from 96.07 euros per month

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

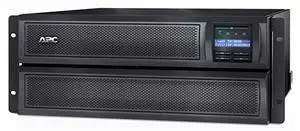

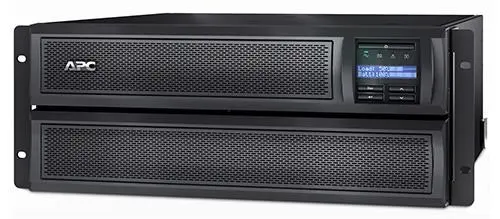

The APC Smart-UPS X SMX3000HV is a 3 kVA / 2700 W line-interactive UPS in a 4U rack/tower form factor designed to keep IT equipment online during power interruptions. It supplies pure sine wave emergency power to connected devices, offers an LCD for local status and control, and supports runtime extension via optional external battery packs. The unit includes multiple input power cords (BS1363A, IEC 320 C20 and Schuko) and provides 8x IEC 320 C13 and 2x IEC 320 C19 outlets. A SmartSlot accepts an optional Network Management Card for remote management and controlled shutdown of physical and virtual servers.

Advantages

The SMX3000HV provides immediate automatic emergency power on mains failure, helping prevent data loss and hardware damage. Its user-replaceable internal battery cartridge and compatibility with external battery packs allow extended runtime and lower lifecycle cost. The UPS includes Switched Outlet Groups for phased startup, remote reboot and selective load shedding, and surge protection against peak voltages. Optional network management enables SNMP monitoring, remote graceful shutdown and integration with EcoStruxure IT.

Suitable for

Small to medium data closets and server rooms
Network switches, routers and firewall equipment
Physical servers, virtual machines and hyperconverged infrastructure (HCI)
Workstations and critical business PCs

Key specifications

Model: APC Smart-UPS X SMX3000HV (MPN: SMX3000HV, EAN: 731304292616)
Topology: Line-interactive
Capacity: 3 kVA / 2700 W
Battery: Sealed lead-acid, user-replaceable cartridge (APCRBC143 compatible)
Battery energy: 738 VAh (typical)
Typical full-load runtime: ~6.25 minutes

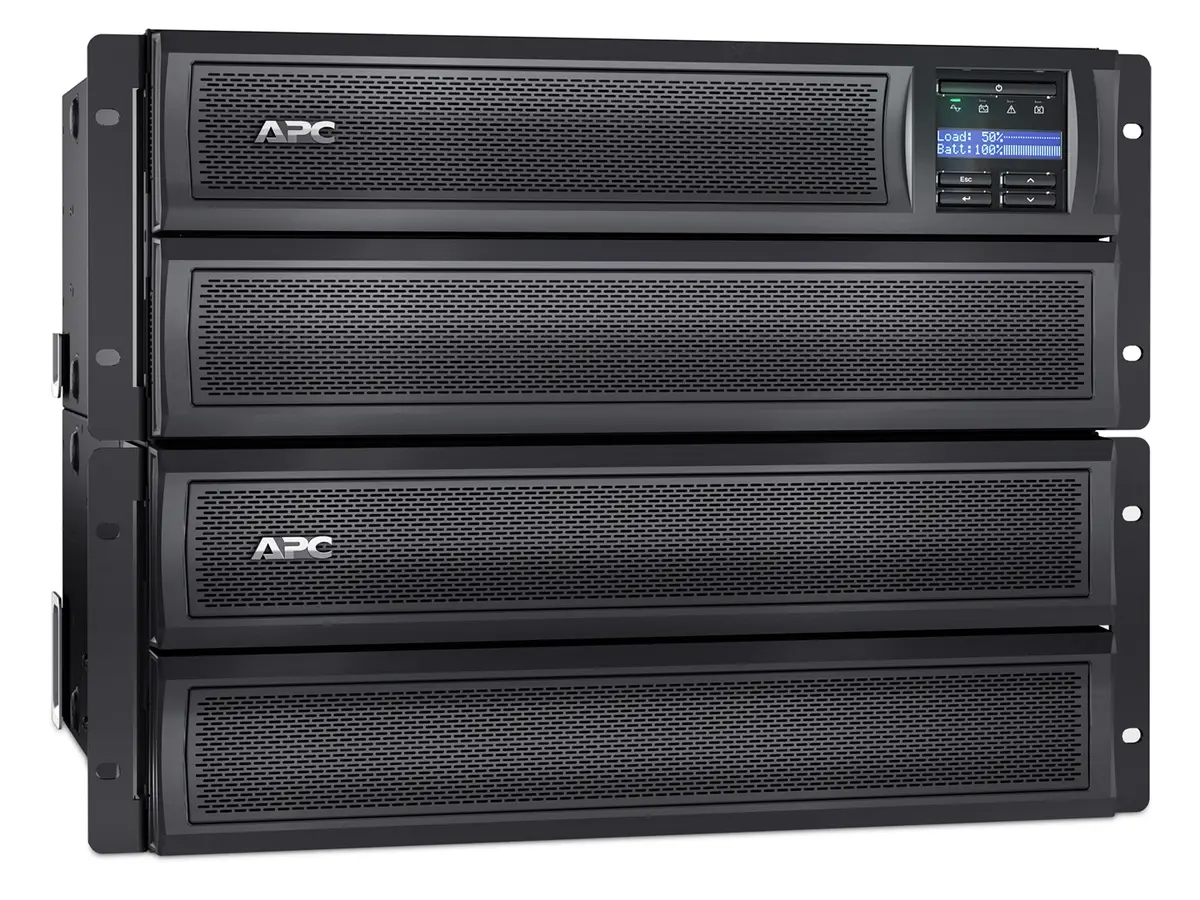

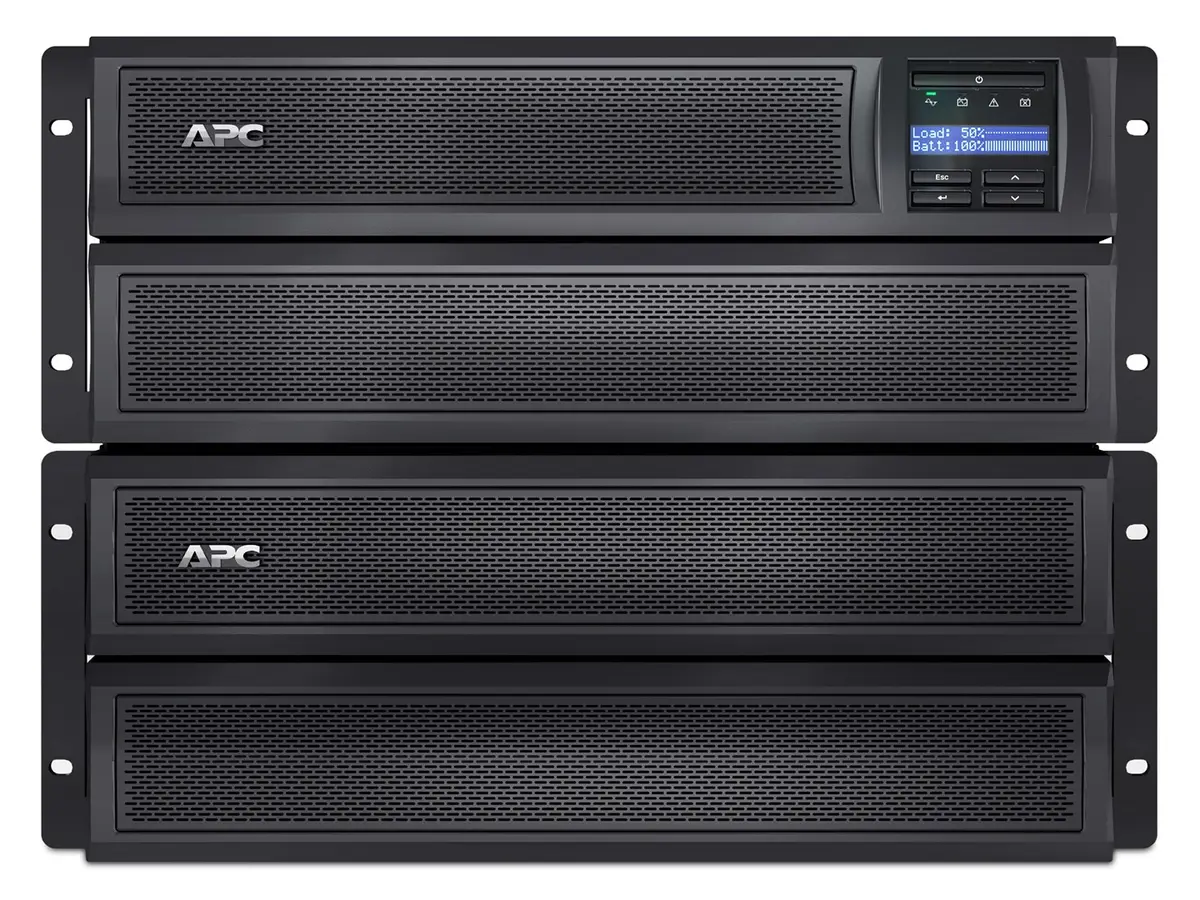

Expandable runtime: Supports external battery packs (SMX120BP)

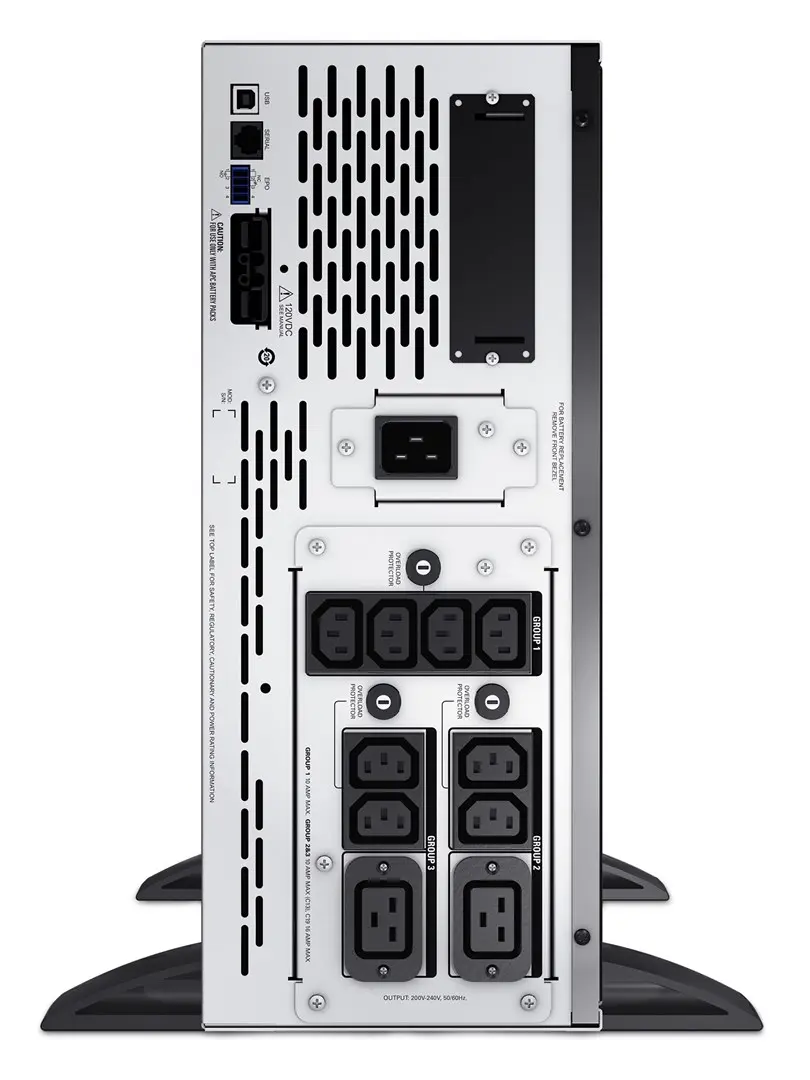

Outlets: 8 × IEC 320 C13, 2 × IEC 320 C19
Input connectors/cables included: BS1363A, IEC 320 C20, Schuko CEE 7/EU1-16P

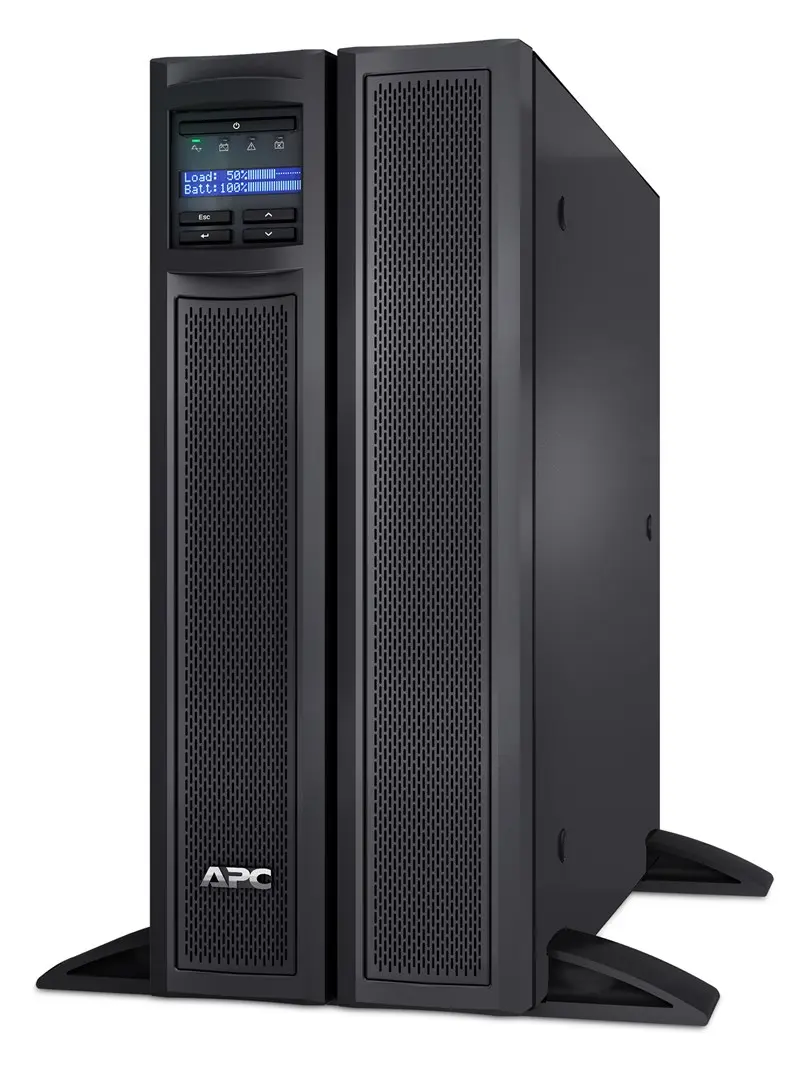

Form factor: 4U rackmount / tower convertible (rack feet and front-post brackets included)
Weight: 38.64 kg

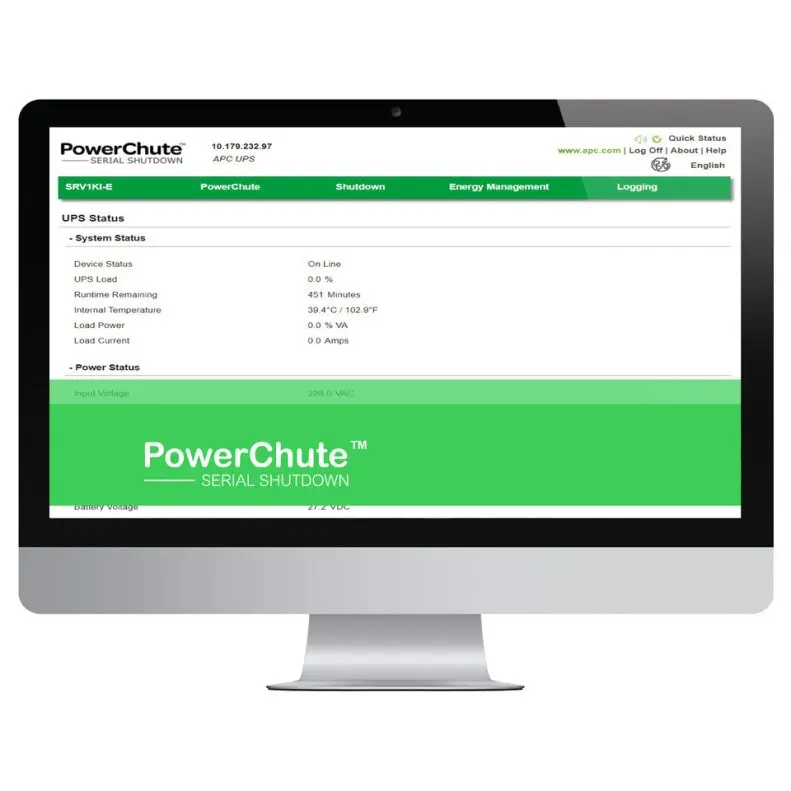

Communications: USB, SmartSlot for optional Network Management Card (AP9640/AP9641)
Warranty: 3 years factory (UPS) / 2 years (battery); optional extension with APC service pack

How to use

Install the SMX3000HV in a 19" rack (4U) using the supplied front-post brackets or place it upright using the included tower feet. Connect critical equipment to the IEC C13 and C19 outlets and attach the appropriate input power cord for your region. For remote management, insert an APC Network Management Card into the SmartSlot and configure SNMP or EcoStruxure IT access. Use the LCD for local monitoring and configure Switched Outlet Groups to stagger equipment start-up or to remotely reboot specific circuits. Replace the internal battery cartridge following the user-replaceable battery instructions without powering down connected loads when hot-swap replacement is supported.

Usage recommendations

For predictable shutdowns and maximum runtime, install the optional external battery packs (SMX120BP) and configure PowerChute software or PowerChute Network Shutdown with a Network Management Card. Schedule regular battery health checks and replace the APCRBC143 cartridge according to battery test results to maintain backup capacity and reliability.

Specifications

Form factor: The shape or design of the product.: Rackmount/Tower
Input frequency: The frequency (Hz) which is required to power the product.: 50/60
Input operation voltage (max): The maximum input voltage supported by the device.: 280 V
Input operation voltage (min): The minumum voltage needed by the device during operation.: 140 V
Waveform:: Sine
Output power: The power that the device can produce.: 2700 W
Output power capacity: The maximum power that the device can produce.: 3 kVA
UPS topology: The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.: Line-Interactive
Product colour: The colour e.g. red, blue, green, black, white.: Black, Stainless steel

All features

Other features

Nominal output voltage: The voltage which the manufacturer states that the device can produce.: 230

Logistics data

Harmonized System (HS) code:: 85078000
Total carbon footprint (kg of CO2e): The total mean carbon footprint value generated across various lifecycle stages (manufacturing, transportation / logistics, use and end of life) per unit (for one single product) i.e., measured in kilograms CO2e.: 2447.6
Products per pallet: Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.: 6 pc(s)

Packaging data

Package weight: Weight of the packaged product.: 47730 g
Package height: The distance from the top to the bottom of the packaging.: 330 mm
Package depth: The distance from the front to the back of the packaging.: 633 mm
Package width: The distance from one side of the packaging to the other.: 586 mm
Software CD:: Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 38.64 kg
Height: The measurement of the product from head to foot or from base to top.: 432 mm
Depth: The distance from the front to the back of something.: 483 mm
Width: The measurement or extent of something from side to side.: 178 mm

Certificates

Certification:: C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, REACH
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS

Packaging content

Quick installation guide:: Yes
Manual:: Yes
Cables included:: USB cable, RS-232
Rack mount kit:: Yes

Operational conditions

Non-operating altitude:: 0 - 15000
Operating altitude:: 0 - 3000
Storage relative humidity (H-H):: 0 - 95
Operating relative humidity (H-H):: 0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.: -15 - 45
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 40

Design

LED indicators:: Status
Display type: Type of display (screen) e.g. LCD.: LCD
Cable length: How long the cable is.: 1.83 m
Rack capacity: The spase that device fill in rack.: 4U
Product colour: The colour e.g. red, blue, green, black, white.: Black, Stainless steel
Form factor: The shape or design of the product.: Rackmount/Tower

Battery

Automatic battery test:: Yes
Hot-swap battery:: Yes
Battery recharge time: Approximate time required to recharge the battery from completely empty to completely full: 3 h
Battery life (max):: 5 year(s)
Typical backup time at half load: The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity).: 18 min
Typical backup time at full load: The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity).: 6.25 min
Battery capacity:: 738 VAh
Battery technology: The type of battery in the device, e.g. nickel–cadmium (NiCd).: Sealed Lead Acid (VRLA)

Ports & interfaces

SmartSlot:: Yes
Number of output IEC jumpers:: 2
AC outlets quantity: The number of sockets in the device where AC electrical power can be connected.: 10 AC outlet(s)
Power plug: A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.: C20 coupler
AC outlet types: The type of outlet for AC electricity.: C19 coupler, C13 coupler

Features

Auto-restart:: Yes
Audible alarm(s): Alarms that make a sound when they are activated (set off).: Yes
Surge protection:: Yes
Noise level: The amplitude level of the undesired background noise, usually measured in decibels (db).: 55 dB
Emergency Power Off (EPO):: Yes
Crest factor:: 3:1
Efficiency:: 98.5 %
Hold time (min):: 2 ms
Hold time (max):: 10 ms
Surge energy rating: A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure.: 645 J
Automatic Voltage Regulation (AVR):: Yes
Output frequency regulation:: 50/60
Output operation voltage (max): The maximum output voltage produced by the device.: 240 V
Output operation voltage (min): The minumum voltage produced by the device during operation.: 208 V
Input frequency: The frequency (Hz) which is required to power the product.: 50/60
Input operation voltage (max): The maximum input voltage supported by the device.: 280 V
Input operation voltage (min): The minumum voltage needed by the device during operation.: 140 V
Waveform:: Sine
Output power: The power that the device can produce.: 2700 W
Output power capacity: The maximum power that the device can produce.: 3 kVA
UPS topology: The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.: Line-Interactive

Hide Show all

Instructions

mmo_19196055_1474542092_2359_5956.pdf

apc-SMX3000HV-16852.pdf

Description

Instructions

mmo_19196055_1474542092_2359_5956.pdf

apc-SMX3000HV-16852.pdf

Machine translation. Load original

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

The UPS APC Smart-UPS X SMX3000HV is compared against several similar line-interactive uninterruptible power supplies with identical power ratings. All reviewed devices share a 3000VA / 2700W capacity, sinusoidal waveform output, and expandable runtime capabilities. The practical differences lie in the outlet configurations (featuring either two or one C19 connector), enclosure finish details, and minor design variations.

⚙️ The specifications comparison table below outlines the core technical attributes such as power output, waveform, topology, and outlet counts to help you evaluate hardware compatibility.

Parameter	UPS APC Smart-UPS X SMX3000HV	UPS APC Smart-UPS X SMX3000HV	UPS APC Smart-UPS X SMX3000HVNC	UPS APC Smart-UPS X SMX3000RMHV2UNC	UPS APC Smart-UPS X SMX3000RMHV2U	UPS APC Smart-UPS X SMX3000RMHV2UNC	Practical significance
UPS topology	Line-Interactive	Line-Interactive	Line-Interactive	Line-Interactive	Line-Interactive	Line-Interactive	Identical power protection type ensuring stable operation for sensitive hardware.
Output power	2700 W / 3 kVA	2700 W / 3 kVA	2700 W / 3 kVA	2700 W / 3 kVA	2700 W / 3 kVA	2700 W / 3 kVA	Equal load capacity suitable for high-demand IT setups.
Waveform	Sine	Sine	Sine	Sine	Sine	Sine	Pure sine wave output is ideal for servers equipped with active PFC power supplies.
Output outlets	8 C13, 2 C19	8 C13, 2 C19	8 C13, 2 C19	8 C13, 1 C19	8 C13, 1 C19	8 C13, 1 C19	Configurations with two C19 sockets accommodate more high-draw power cables.

◎ The suitability table below evaluates which product is best aligned with specific deployment scenarios and connection requirements.

Use case	Recommended product	Why
Connecting hardware requiring multiple C19 high-current power connections	UPS APC Smart-UPS X SMX3000HV	Provides two C19 outlets, offering better flexibility for powering specialized high-density devices.
Standard rack deployments with minimal C19 dependency	Any of the alternative models	If the exact count of C19 outlets is not critical, the alternative versions deliver the exact same core power protection and runtime performance.

The UPS APC Smart-UPS X SMX3000HV is functionally identical to the compared alternatives in terms of power delivery, topology, and backup capabilities. Opt for this specific model if your setup requires two C19 output outlets to properly connect your target power cords.
