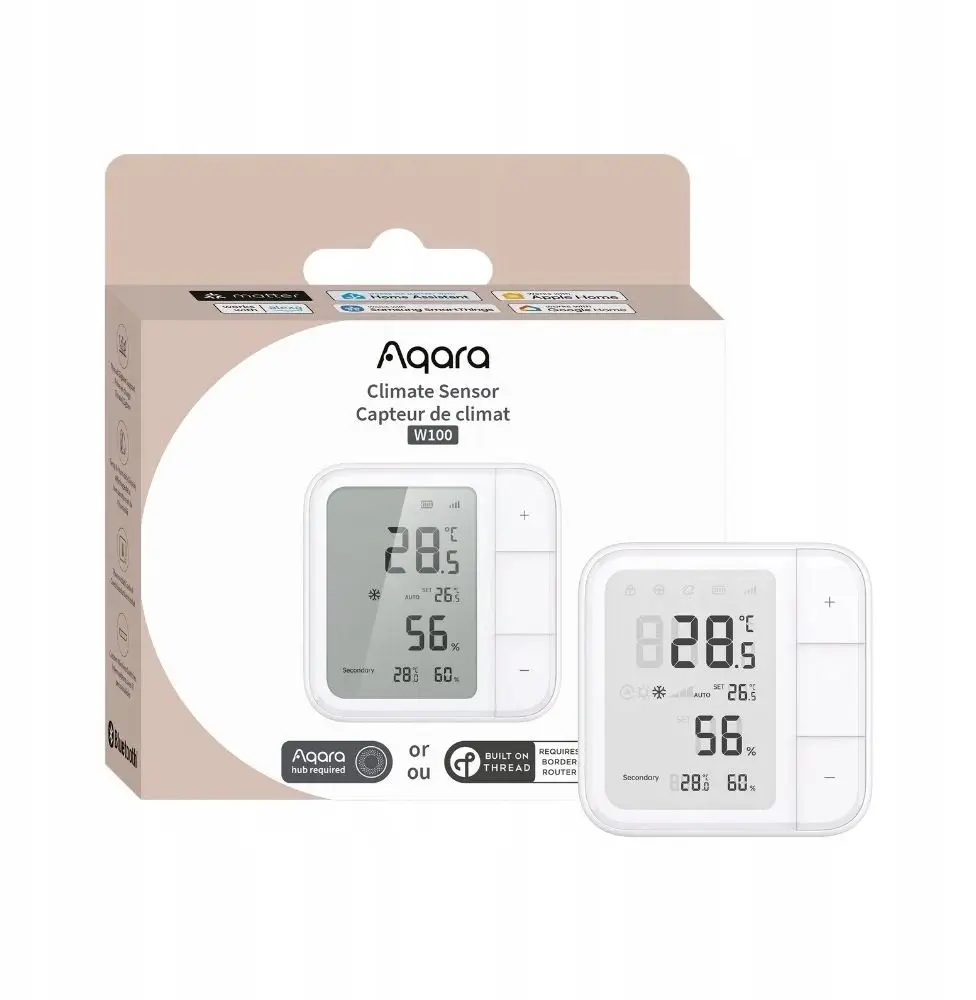

Smart Home Climate Sensor Aqara TH-S04D

A highly precise sensor with a 3.4-inch LCD display monitors temperature and humidity in real time. It supports Zigbee and Thread technologies, which enables integration with third-party products or connection via an Aqara hub for advanced features, such as remote HVAC control. Thanks to three parametric buttons that can trigger up to nine different actions, it contributes to increased comfort, energy efficiency, and smart home automation.

Notes:

• Using the device within a specific Matter ecosystem requires a Matter Controller for that system and a Thread Border Router.
• It is necessary to use an Aqara Zigbee hub.
• To switch between protocols, a factory reset of the device is required.
• Wireless switch configurations set previously will be deleted when connecting the device to an Aqara thermostat.
• Connection to an Aqara temperature and humidity sensor is possible exclusively through the Aqara Home app in Zigbee mode.
• The secondary display area is only available when the device is connected to an Aqara hub in Zigbee mode.
• The device can be connected to the Aqara Radiator Thermostat E1 exclusively through settings in the Aqara Home app in Zigbee mode.
• Battery life data is based on tests conducted by the Aqara laboratory under default device conditions.
• The option to customize sampling frequency and message sending is only available through the Aqara Home app settings in Zigbee mode.

Dual-Protocol with Matter compatibility

Supports Matter through Thread and Zigbee. Matter compatibility enables smooth integration with external systems such as Apple Home, Amazon Alexa, Google Home, and others, providing a comprehensive and flexible experience ready for the future. At the same time, Zigbee together with the Aqara hub allows using exclusive Aqara Home features. Users can switch between protocols according to their preferences.

3 parametric buttons

The Aqara Climate W100 sensor is equipped with three parametric buttons that respond to simple, double, and long presses and allow triggering up to 9 automations or scene configurations. Whether you need to wirelessly turn a device on and off, or switch it to comfort mode with a single touch, this flexibility allows for immediate adaptation and creation of an optimal living environment.

Precise sensor with LCD display

This device features a very accurate temperature sensor (±0.2℃) and humidity sensor (±2%RH) along with a 3.4-inch LCD display that shows current environmental data. It contributes to increased living comfort and ensures ideal conditions for storage, greenhouses, and a healthy environment for people with sensitive needs.

Integration of external sensors

In Zigbee mode, the device allows connection to an Aqara temperature and humidity sensor, displaying additional data in the secondary display area. This solution allows users to monitor conditions in multiple locations simultaneously. If no external sensor is connected, the secondary area by default displays local temperature and humidity values, which facilitates an overview of the current environment and contributes to maintaining a comfortable living space.

HVAC remote control integration

The sensor can be connected to an Aqara thermostat via the Aqara hub or to a third-party IR air conditioner using the Aqara Hub M3, enabling wireless remote control of the HVAC system. It allows setting temperature, humidity, mode, and other parameters directly from the device, which automatically optimizes environmental comfort and increases energy efficiency without the need for physical intervention on the HVAC unit.

Long battery life with configured performance

It is powered by two CR2450 batteries and provides a lifespan of up to 2.4 years in Zigbee mode and 2.3 years in Thread mode with normal use. It allows flexible configuration of sensor sampling and message frequency, optimizing the balance between performance and energy consumption. This adaptability ensures long-term and reliable functionality with minimal maintenance, offering a seamless and comfortable smart home experience.

Specifications:

• Product name: Climate Sensor W100
• Model: TH-S04D
• Product dimensions: 86 × 86 × 13.65 mm (3.39 × 3.39 × 0.54 in.)
• Temperature range: -20 °C ~ 60 °C (4 °F ~ 140 °F)
• Relative humidity: 0 ~ 98% RH, non-condensing
• Wireless protocols: Thread/Zigbee, Bluetooth

Package includes:

• 1 pc Aqara Climate Sensor W100
• 1 pc User manual
• 1 pc Declaration of conformity
• 1 pc Set of screws
• 1 pc Wall mount
• 1 pc Table stand
