header-product Fan ARCTIC P14 PWM Pressure-optimised 140 mm
12.99 €

Fan ARCTIC P14 PWM Pressure-optimised 140 mm

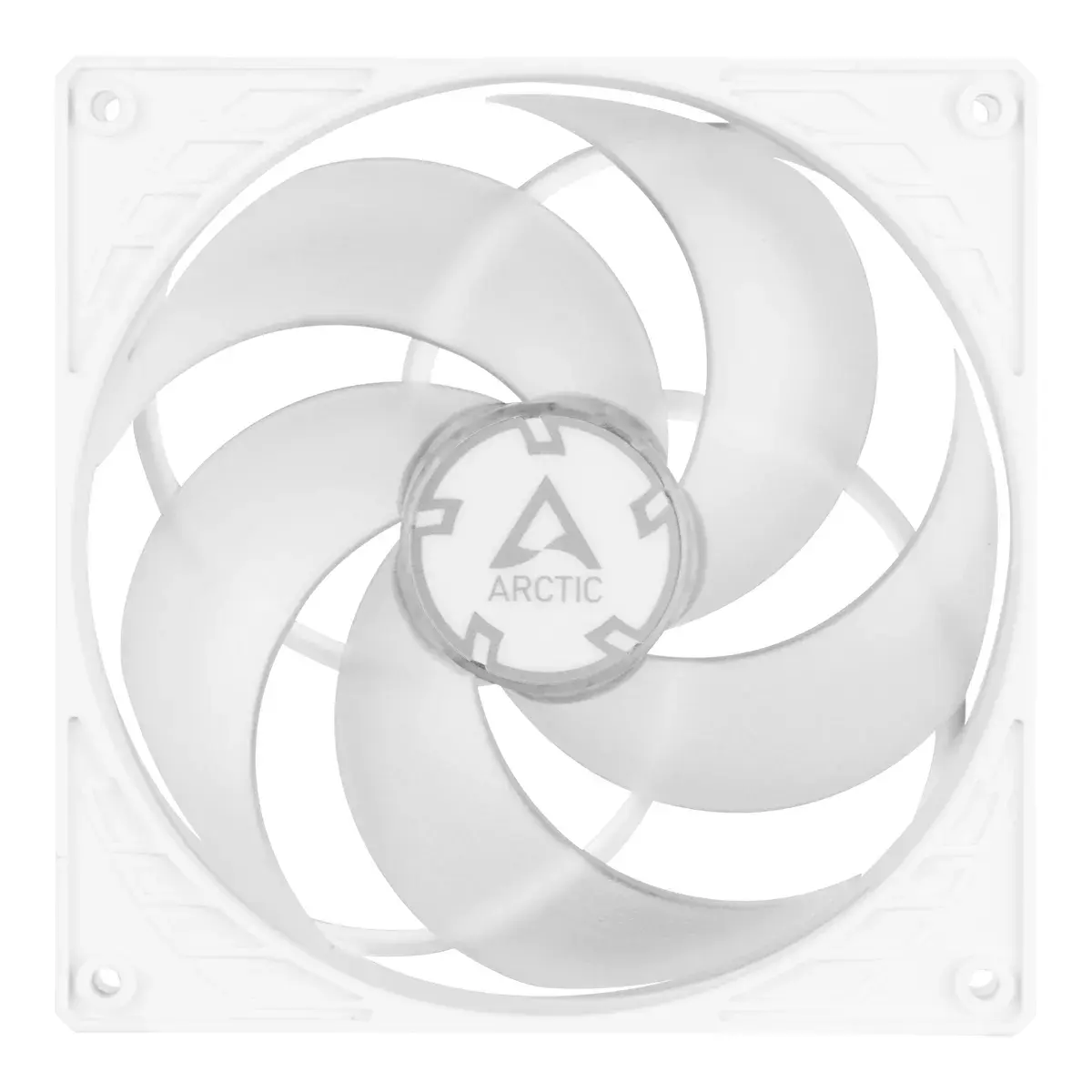

Fan ARCTIC P14 PWM Pressure-optimised Photo 1
Fan ARCTIC P14 PWM Pressure-optimised Photo 2
Fan ARCTIC P14 PWM Pressure-optimised Photo 3
Fan ARCTIC P14 PWM Pressure-optimised Photo 4
Fan ARCTIC P14 PWM Pressure-optimised Photo 5
Fan ARCTIC P14 PWM Pressure-optimised Photo 1
Fan ARCTIC P14 PWM Pressure-optimised Photo 2
Fan ARCTIC P14 PWM Pressure-optimised Photo 3
Fan ARCTIC P14 PWM Pressure-optimised Photo 4
Fan ARCTIC P14 PWM Pressure-optimised Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Fan ARCTIC P14 PWM Pressure-optimised 140 mm

{{email}}
You keep track of price changes

Fan ARCTIC P14 PWM Pressure-optimised 140 mm

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The ARCTIC P14 PWM is a 140 mm fan designed for optimal airflow and pressure. It features a rotational speed range of 200 to 1700 RPM, ensuring efficient cooling with a noise level of just 0.3 sone. With a maximum airflow of 123.76 m³/h and a static pressure of 2.4 mmH2O, this fan is perfect for high-performance setups. The Fluid Dynamic Bearing (FDB) ensures durability and quiet operation. Voltage: 12 V, dimensions: 140x140x27 mm, available in transparent and white colors.
Available at price 12.99 €: 1 pcs.
Total available for order: 2 pcs.
Warranty: 2 Years
SKU: 3953825
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
14.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
17.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.23 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
17.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ARCTIC P14 PWM Pressure-optimised 140 mm is a 140 mm case and heatsink fan engineered for high static pressure and efficient airflow. It features redesigned fan blades and an improved motor with low coil temperature for extended service life. The fan operates on 12 V, measures 140×140×27 mm and is available in transparent or white finishes.

Advantages

The pressure-optimised blade design delivers higher static pressure, making the fan effective on heatsinks and in restricted airflow environments. PWM control provides stepless regulation across a wide RPM range from 200 to 1700 RPM for precise cooling and noise management. Fluid Dynamic Bearing (FDB) reduces friction and operating noise while increasing longevity. The motor development lowers coil temperature, contributing to a longer service life and a 10-year warranty.

Suitable for

  • CPU and GPU heatsinks requiring high static pressure
  • Radiators in liquid cooling loops
  • PC cases with restricted airflow or dust filters
  • Silent or balanced-performance system builds

Key specifications

  • Fan diameter: 140 mm (140×140×27 mm)
  • RPM range: 200–1700 RPM (PWM-controlled)
  • Maximum airflow: 123.76 m³/h
  • Static pressure: 2.4 mmH2O
  • Noise level: 0.3 sone
  • Bearing type: Fluid Dynamic Bearing (FDB)
  • Voltage: 12 V
  • Weight: 0.194 kg
  • Colours: Transparent, White
  • Brand/MPN/EAN: ARCTIC / ACFAN00223A / 4895213703109

How to use

Install the ARCTIC P14 PWM in the intended fan location on the case, radiator or heatsink using the supplied mounting screws or compatible fasteners. Connect the 4-pin PWM cable to a motherboard header or fan controller that supports PWM to enable stepless speed regulation. Ensure airflow orientation matches the desired intake or exhaust direction and verify clearance around the fan for optimal performance.

Usage recommendations

Use PWM control for dynamically adjusting fan speed according to temperature. For radiator or heatsink installation, place the fan to push air through the fins for maximum static-pressure efficiency. Clean the fan and surrounding filters periodically to maintain airflow and cooling performance.

Specifications

Type:
Fan
Fan diameter:
140 mm
Weight:
0.194 kg
Supported processor sockets:
Not supported
Product colour:
White, Transparent
All features

Performance

Type:
Fan
Fan diameter:
140 mm
Supported processor sockets:
Not supported
Rotational speed (min):
200 RPM
Rotational speed (max):
1700 RPM
Maximum airflow:
72.8 cfm
Compatible processor series:
Not supported
Airflow:
123.76 m³/h
Maximum air pressure:
2.4 mmH2O
Bearing type:
Fluid Dynamic Bearing (FDB)
Pulse-width modulation (PWM) support:
Yes
Noise level:
0.3 sone
Suitable location:
Computer case
Quantity per pack:
1 pc(s)

Design

Product colour:
White, Transparent
Number of fans:
1 fan(s)
Fan connector:
4-pin
Number of fan blades:
5

Weight & dimensions

Cable length:
0.4 m
Weight:
0.194 kg
Package weight:
234 g
Height:
27 mm
Width:
140 mm
Depth:
140 mm
Package depth:
143 mm
Package height:
29 mm
Package width:
143 mm

Power

Power consumption (typical): Power consumption in switched-on state expressed in W.
1.44 W
Rated current:
0.12 A
Voltage:
12
Starting voltage:
3.9 V

Packaging content

Package type:
Box
Number of screws:
4
Screws included:
Yes

Logistics data

Harmonized System (HS) code:
84733080

Description

Machine translation. Load original

Reasons to buy

Optimised for Static Pressure

During the development of the new P14 PWM, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM is particularly suitable for use on heatsinks and radiators.

Optimised for Static Pressure

More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

More Efficient Technology

Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Maximum Quietness, Minimum Vibration

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.

Extended Life Span

200 to 1700 RPM regulated via PWM

Thanks to the 4-pin connector, the RPM can be regulated in a broad spectrum via PWM. In this way, noise is kept at a minimum while maximum cooling performance is guaranteed when needed.

200 to 1700 RPM regulated via PWM

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

High Quality Bearing

Two Way Installation

- Push warm air out of the case

- Pull cool air into your case

Two Way Installation
