Thermal pad ARCTIC TP-3 120x20mm 1.5mm Blue 4 pcs

High Performance - very soft

Based on silicone and a special filler, TP-3 also outperforms high-performance pads, especially when height differences of closely spaced chips typically occur due to manufacturing tolerances. The TP-3 offers excellent thermal conductivity despite extremely low hardness.

Minimization of thermal resistance

The thinner the pad, the lower the thermal resistance. The TP-3 pad with a thickness of 0.5 mm can easily be compressed to 0.3 mm and thus compensate for height differences between various components of up to 0.2 mm. Please note that due to the extremely low hardness, the installation of the 0.5 mm pad requires extra care. Please refer to the user manual.

Versatile Applications

Heat-conducting, vibration-damping, mouldable, electrically insulating — safe and easy to use. Thanks to its good compression properties, the soft heat conduction pad is particularly gentle on components while remaining an effective heat conductor. In addition to the standard format for M.2, the TP-3 is available in various sizes and thicknesses and can be easily cut to the desired shape and size. This makes it ideal for RAMs, chipsets and ICs of all kinds used in PCs, laptops, consoles, graphics cards and electronic devices in general.

Safe handling

The ARCTIC TP-3 is electrically insulating, non-adhesive and easy to handle. This ensures optimal and safe heat transfer in many application areas.

Bridging gaps

The TP-3 pads are softer than conventional pads and therefore particularly suitable for different chip heights and possible tolerances. Thanks to their good compressibility, the thermal pads act as perfect gap fillers and bridge uneven surfaces and air gaps without stressing sensitive or protruding components.

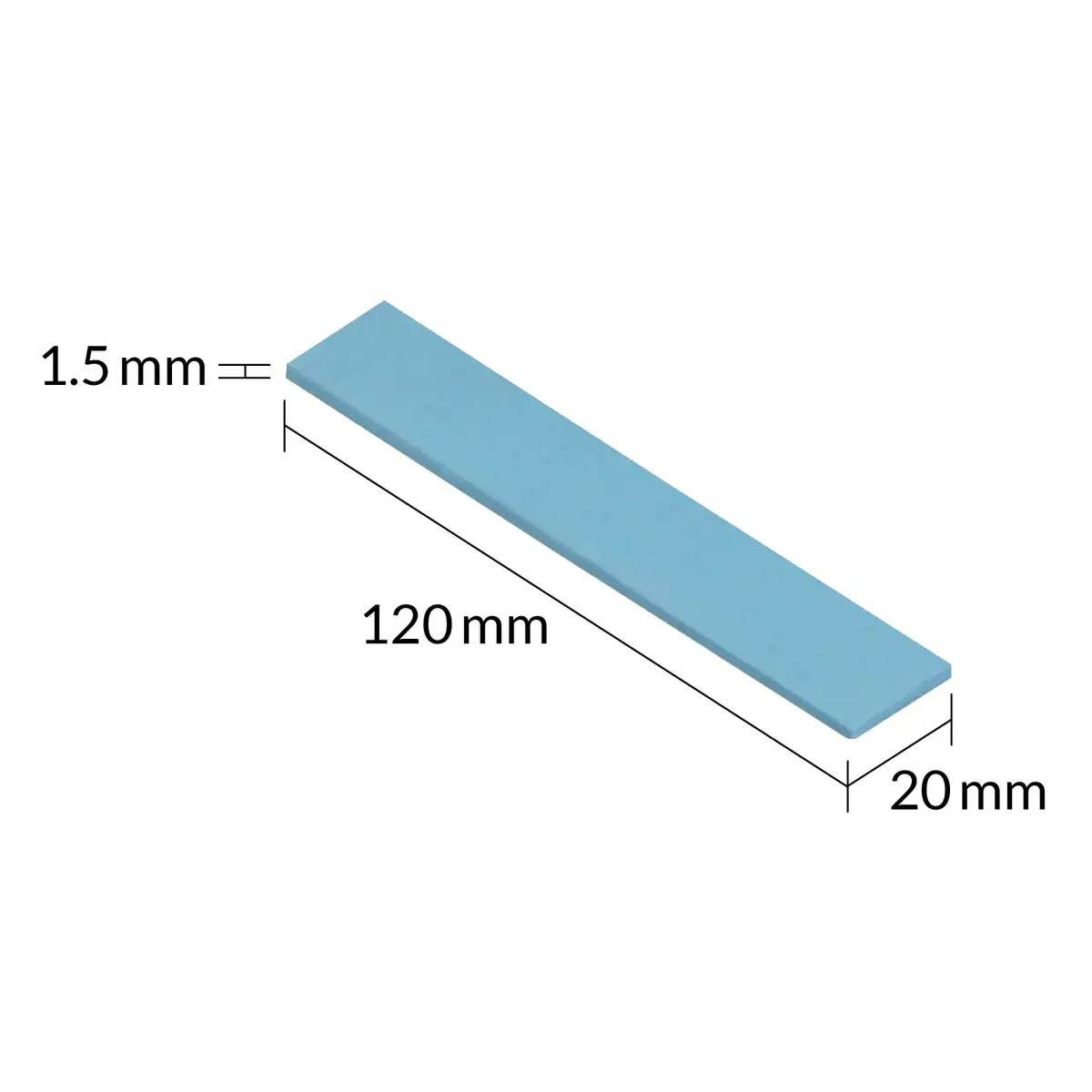

Available in different thicknesses and sizes

Our thermal pads are available in 0.5 mm, 1.0 mm and 1.5 mm thicknesses. The 0.5 mm variant is ideally suited as an alternative to heat-conducting foil. The pads come in different dimensions depending on their thickness and can be cut to any required size.
