ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX

Name: ASRock B650D4U Micro ATX Server 8275148
Brand: ASROCK
SKU: 12477829
Price: 424.99 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

ASRock B650D4U Micro ATX Server Motherboard, AMD B650 Chipset, Socket AM5, DDR5 Support

New Arrival

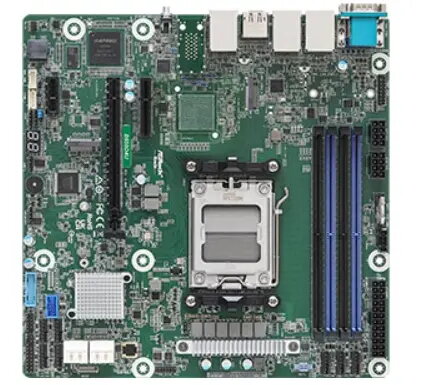

ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX Photo 1

ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX Photo 2

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Price for companies: 351.23€ Price is valid only for legal clients

Short description

The ASRock B650D4U is a micro ATX server motherboard featuring the AMD B650 chipset and Socket AM5, designed for AMD Ryzen 3 and 5 processors. It supports DDR5-SDRAM memory up to 32 GB and offers versatile storage options via M.2 and SATA III interfaces with RAID 0, 1, 10 support. Equipped with an Aspeed AST2600 onboard graphics controller, this board is engineered for reliable server performance and efficient data management in professional environments.

Available for order: 21 pcs.

Warranty: 2 Years

SKU: 12477829

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 1.08 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

pay in 3 equal parts

today

0 €

afterward

3 mth. х 141.66 €

overpayment

0 €

All payment Methods Hide details

All payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment

36 months installment: from 11.81 euros per month

Price for companies: 351.23€ Price is valid only for legal clients

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ASRock B650D4U is a high-performance micro ATX server motherboard engineered for professional environments requiring reliability and efficiency. Built on the AMD B650 chipset and featuring the Socket AM5, this board is specifically designed to support AMD Ryzen 3 and 5 processors. It provides a stable foundation for server applications, offering robust connectivity and advanced data management capabilities in a compact form factor.

Advantages

This motherboard stands out due to its specialized server-grade features, including integrated remote management via IPMI, which allows for efficient system administration from any location. The inclusion of the Aspeed AST2600 graphics controller ensures reliable video output for server monitoring without requiring additional hardware. Furthermore, the support for DDR5 memory and PCIe 5.0 technology ensures that the system remains fast and responsive, capable of handling demanding workloads with ease while maintaining high data integrity through ECC memory support.

Suitable for

Small to medium business server deployments
Data storage and management workstations
Remote server administration and monitoring
Professional virtualization environments

This motherboard may not be suitable for high-end gaming builds or workstations requiring extensive multi-GPU configurations, as its design is strictly optimized for server-side stability and professional management rather than consumer-grade multimedia performance.

Key specifications

Form factor: Micro-ATX (9.6" x 9.6")
Processor socket: AMD Socket AM5
Memory: 4 DIMM slots supporting DDR5 ECC/non-ECC UDIMM
Expansion slots: 1 PCIe 5.0 x16, 1 PCIe 5.0 x4, 1 PCIe 4.0 x1
Storage interfaces: 1 M.2 (PCIe 5.0 x4), 1 M.2 (PCIe 4.0 x4), 4 SATA 6Gb/s
Networking: 2 RJ45 (1GbE) ports via Intel i210
Graphics: Onboard Aspeed AST2600
Management: Integrated IPMI

To use the ASRock B650D4U, install the motherboard into a compatible micro ATX chassis and secure it with the appropriate standoffs. Insert your AMD Ryzen 3 or 5 processor into the AM5 socket, ensuring the locking mechanism is fully engaged. Install the DDR5 memory modules into the DIMM slots, following the dual-channel configuration guidelines. Connect your storage drives via the SATA or M.2 interfaces and attach the necessary power cables from your power supply unit. Once assembled, connect the network cables to the RJ45 ports to enable remote management access.

What to consider before purchase

Ensure your computer case supports the micro ATX form factor.
Verify that your processor is compatible with the Socket AM5 interface.
Confirm that your power supply unit provides sufficient wattage for your specific server configuration.
Check if your cooling solution is compatible with the AM5 socket mounting requirements.

Usage recommendations: For optimal server stability, always ensure the BIOS is updated to the latest version and utilize ECC memory modules if your workload requires high data reliability. Configure the IPMI settings immediately upon initial setup to facilitate seamless remote management.

Specifications

Motherboard form factor:: Micro ATX
Motherboard chipset:: AMD B650 Express
Component for:: Server
Processor socket:: Socket AM5
Number of memory slots:: 4
Maximum internal memory:: 32 GB
Supported memory types:: DDR5-SDRAM

All features

Features

Motherboard form factor:: Micro ATX
Motherboard chipset:: AMD B650 Express
Component for:: Server
PC health monitoring:: Voltage, FAN, CPU
Motherboard chipset family:: AMD

Processor

Processor manufacturer:: AMD
Maximum number of SMP processors:: 1
Compatible processor series:: AMD Ryzen 3, AMD Ryzen 5
Processor socket:: Socket AM5

Memory

Number of memory slots:: 4
Maximum internal memory:: 32 GB
Supported memory types:: DDR5-SDRAM
Supported memory clock speeds:: 5200, 3600
Memory voltage:: 1.1
Memory slots type:: DIMM
Supported memory clock speed (max):: 5200 MHz
ECC сompatibility:: ECC & non-ECC

Expansion slots

PCI Express x4 (Gen 4.x) slots:: 1

Graphics

On-board graphics card model:: Aspeed AST2600

Network

Ethernet LAN:: Yes
Wi-Fi:: No

Internal I/O

USB 2.0 connectors:: 0
Number of COM connectors:: 1
ATX Power connector (24-pin):: Yes
TPM connector:: Yes
EPS power connector (8-pin):: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:: 0
Number of SATA III connectors:: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:: 0

Rear panel I/O ports

Serial ports quantity:: 1
USB 2.0 ports quantity:: 0
Ethernet LAN (RJ-45) ports:: 2
VGA (D-Sub) ports quantity:: 1
DVI-D ports quantity:: 0
HDMI ports quantity:: 1
IPMI LAN (RJ-45) port:: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:: 0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:: 0

Storage controllers

RAID levels:: 10, 1
RAID support:: Yes
Supported storage drive interfaces:: SATA III, M.2

BIOS

BIOS memory size:: 256 Mbit
BIOS type:: UEFI AMI
ACPI version:: 6.4

Weight & dimensions

Width:: 243.84 mm
Depth:: 243.84 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 90
Storage temperature (T-T):: -40 - 70
Operating temperature (T-T):: 10 - 35

Hide Show all

Instructions

asrock-8275148-12477829.pdf

Description

Instructions

asrock-8275148-12477829.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX cost, and is it available for purchase?

The price is 424.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 21 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 30.06.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment. All transactions are 100% secure and encrypted.

Can ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX be purchased with a lease?

Yes, the purchase is available both on credit and with an interest-free installment plan. We work with leading banks and leasing companies in Latvia, allowing you to make your purchase on convenient terms — with a minimal down payment and a repayment period from 3 to 36 months. You can apply for credit or installments for the ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX online, and the application process is as simple as possible:

Select the product on the website and add it to your cart;
When placing your order, choose the payment method “Installments”;
Fill in the required details for the lending partner;
Receive a decision within a few minutes.

For more information about available payment options, interest-free installment terms, and credit conditions in Latvia, please visit the Payment page.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All ASROCK products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized ASROCK service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: motherboard form factor, motherboard chipset, component for, processor socket, number of memory slots, maximum internal memory, supported memory types, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for ASRock B650D4U Server Motherboard | Socket AM5 Micro ATX?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
