header-product Motherboard Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX
80.99 €

Motherboard Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

Motherboard Asrock B760M-HDV/M.2 D4, code Photo 1

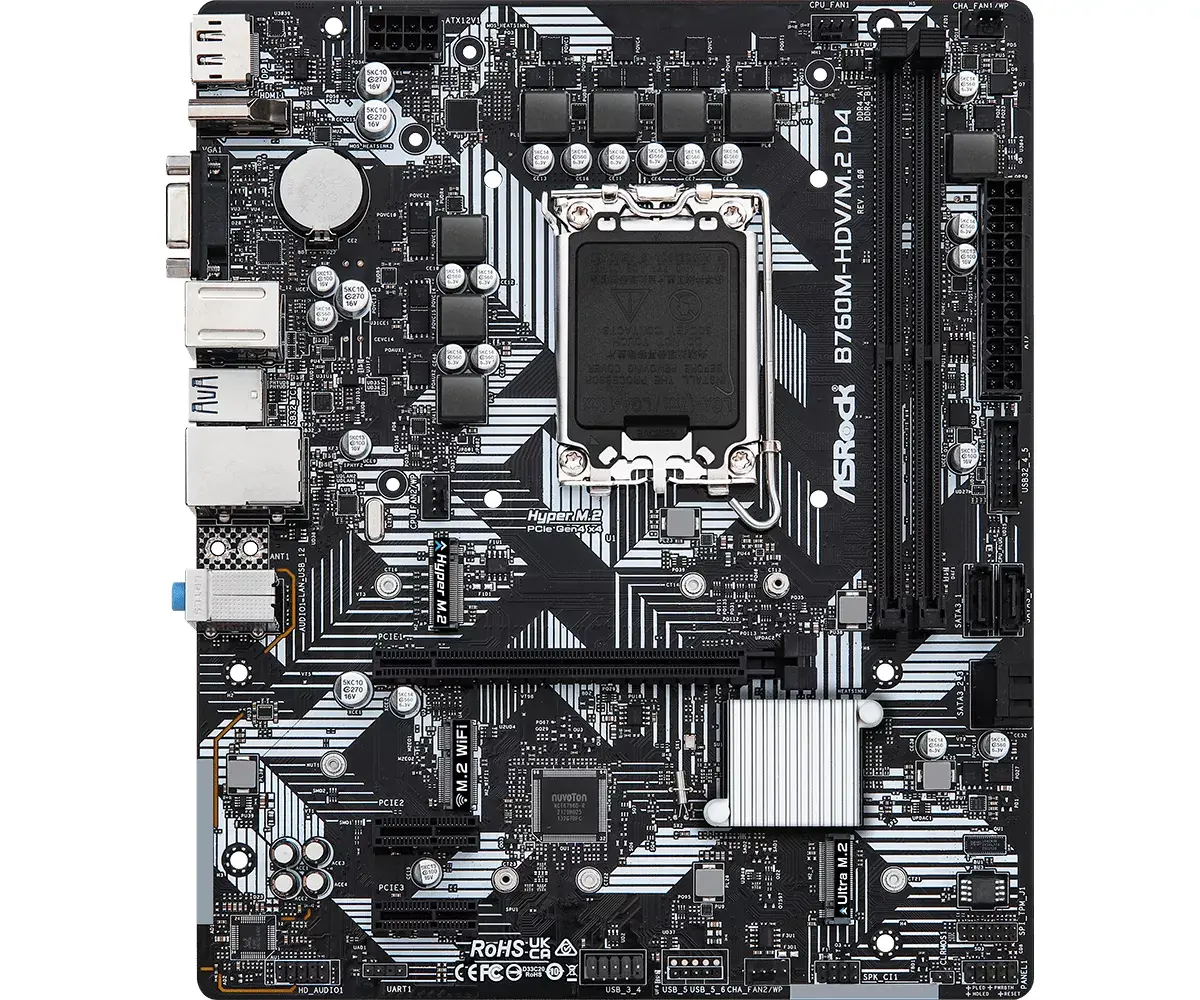

Motherboard Asrock B760M-HDV/M.2 D4, code Photo 2

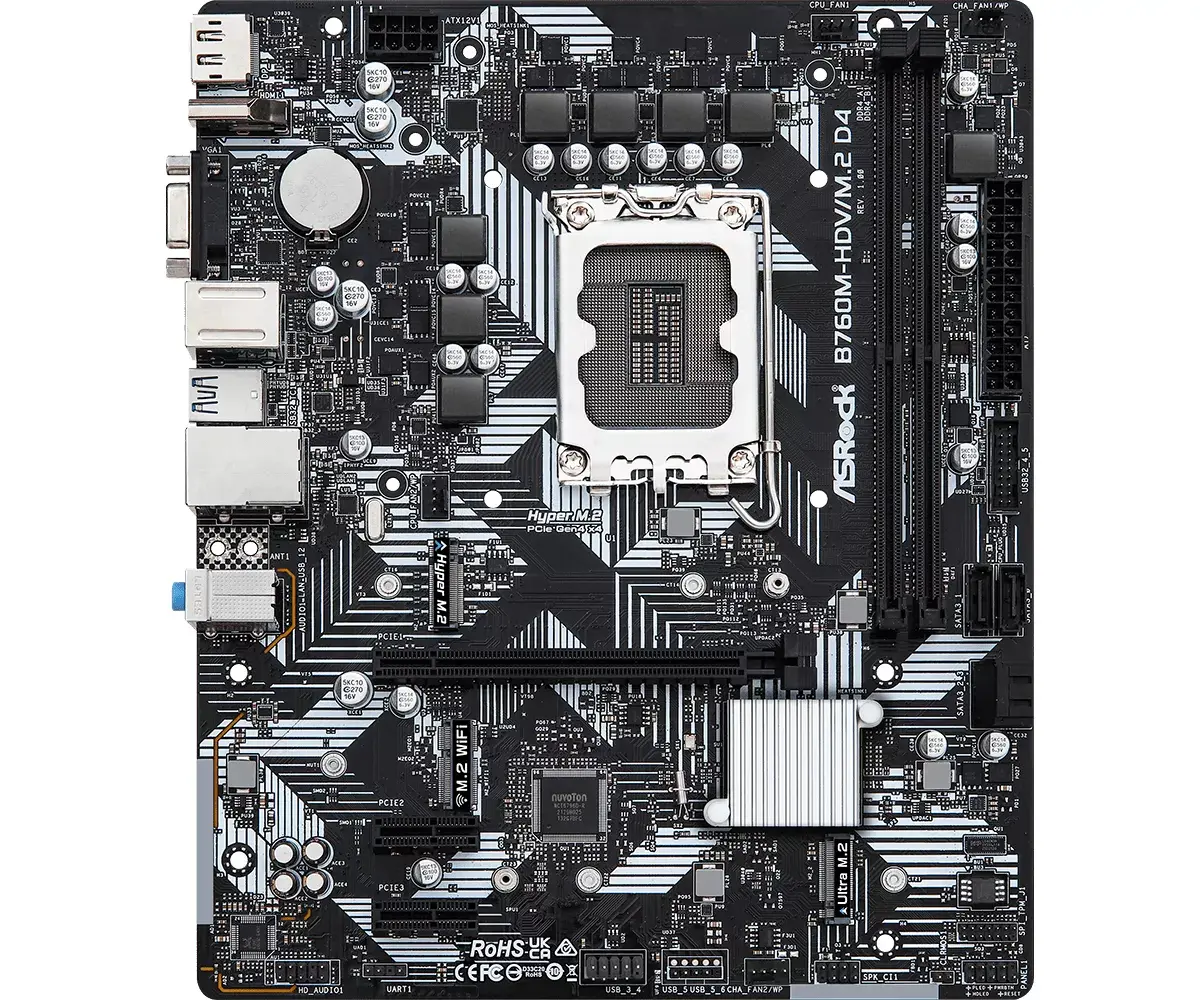

Motherboard Asrock B760M-HDV/M.2 D4, code Photo 3

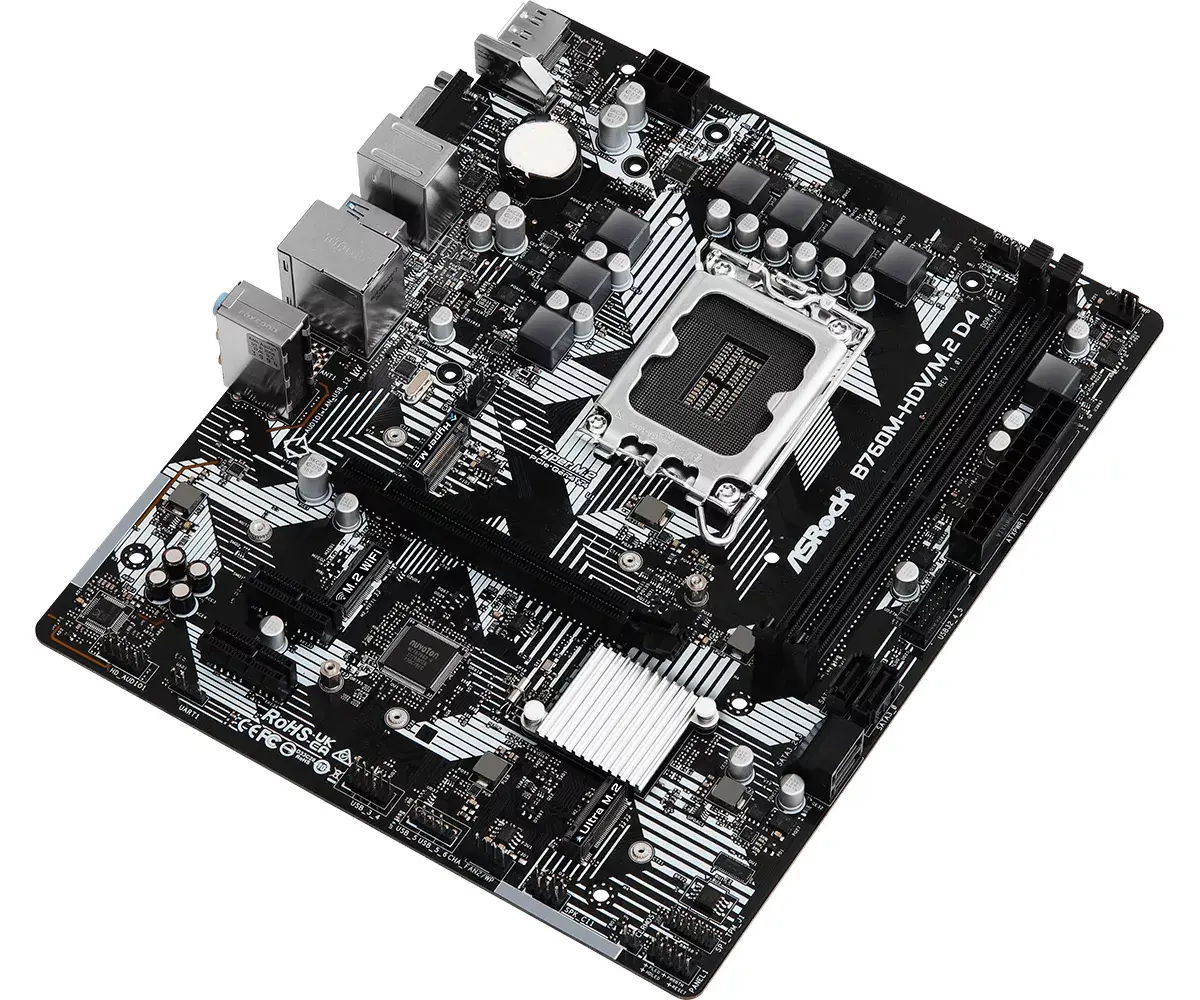

Motherboard Asrock B760M-HDV/M.2 D4, code Photo 4

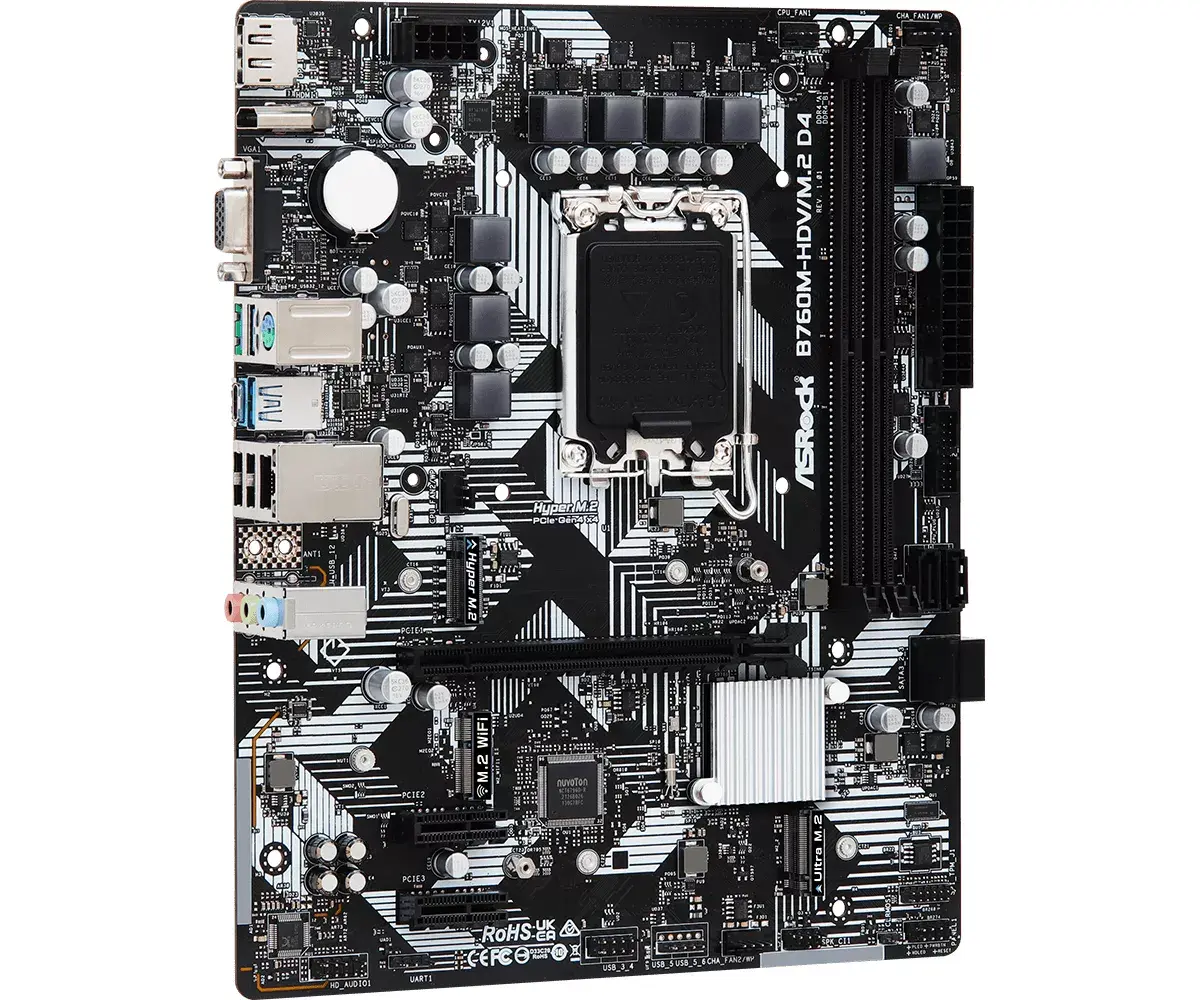

Motherboard Asrock B760M-HDV/M.2 D4, code Photo 5

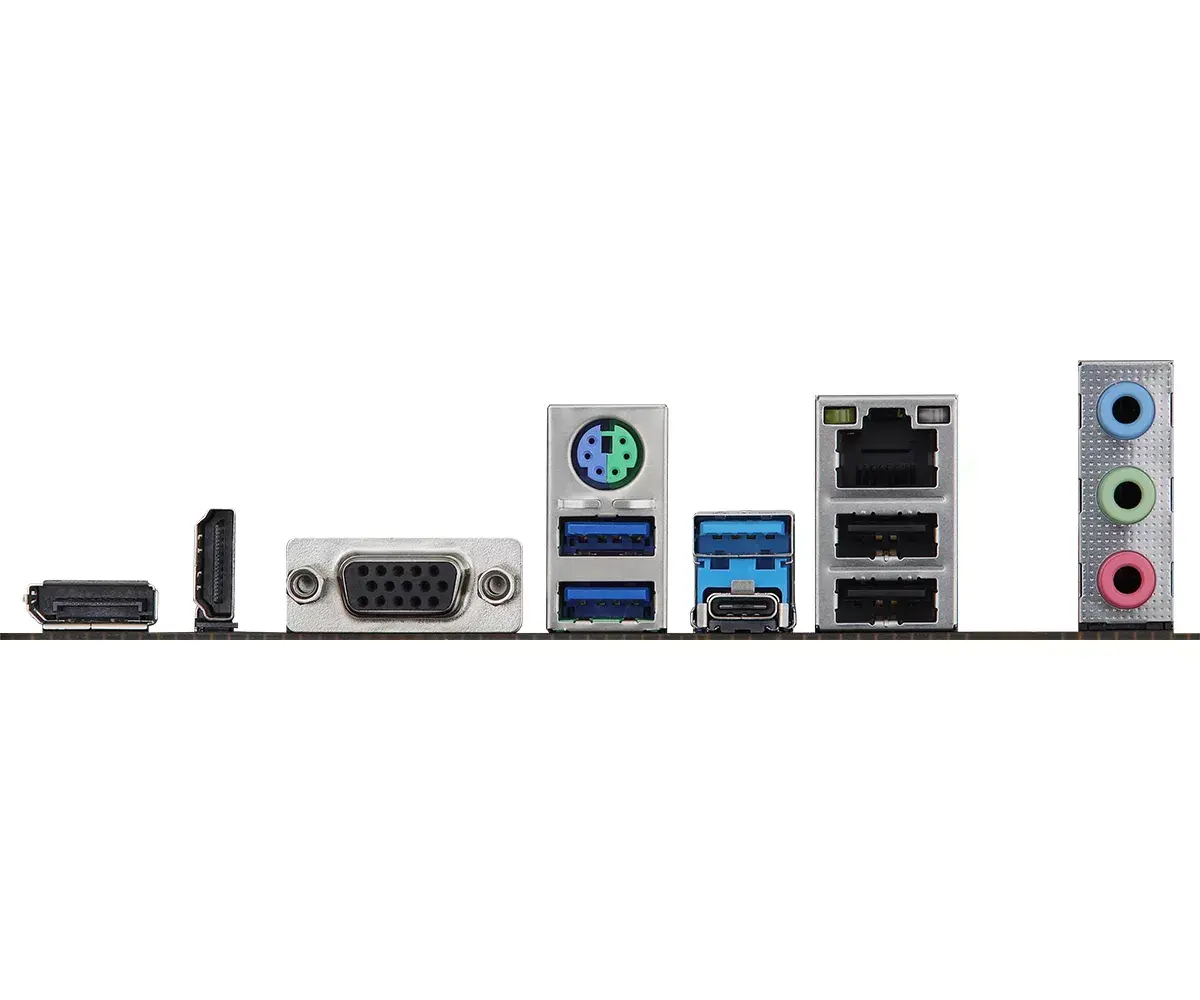

Motherboard Asrock B760M-HDV/M.2 D4, code Photo 6
Motherboard Asrock B760M-HDV/M.2 D4, code Photo 1
Motherboard Asrock B760M-HDV/M.2 D4, code Photo 2
Motherboard Asrock B760M-HDV/M.2 D4, code Photo 3
Motherboard Asrock B760M-HDV/M.2 D4, code Photo 4
Motherboard Asrock B760M-HDV/M.2 D4, code Photo 5
Motherboard Asrock B760M-HDV/M.2 D4, code Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

{{email}}
You keep track of price changes

Motherboard Asrock B760M-HDV/M.2 D4 Intel B760 LGA 1700 micro ATX

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Asrock B760M-HDV/M.2 D4 motherboard features an Intel B760 chipset and LGA 1700 socket, supporting Intel® Core™ i3, i5, i7, and i9 processors. It supports DDR4-SDRAM with a maximum memory capacity of 64 GB across DIMM slots. The board includes M.2 and SATA III interfaces for storage, and supports RAID levels 0, 1, 5, and 10. With Gigabit Ethernet and a Realtek RTL8111H LAN controller, it ensures fast network connectivity. Its micro ATX form factor makes it suitable for compact PC builds.
Available for order: 25 pcs.
Warranty: 2 Years
SKU: 6850565
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
10.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
15.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.78 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
15.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 27 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 2.25 euros per month
Price for companies: 66.93€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ASRock B760M-HDV/M.2 D4 is a micro ATX motherboard with the Intel B760 chipset and LGA 1700 socket, designed for Intel Core i3, i5, i7 and i9 processors. It supports DDR4 memory up to 64 GB across two DIMM slots, offers M.2 and SATA III storage interfaces with RAID 0/1/5/10 support, and includes Gigabit Ethernet via the Realtek RTL8111H controller. The board provides multiple display outputs and expansion options suitable for compact PC builds.

Advantages

The board uses a 5+1+1 power phase design to provide stable and smooth CPU power delivery. Native PCIe Gen4 x4 M.2 support enables significantly higher SSD throughput compared with previous PCIe generations. An M.2 (Key E) slot allows adding an 802.11ac Wi‑Fi module, and the rear I/O includes D-Sub, DisplayPort and HDMI for flexible display connectivity. ASRock’s Auto Driver Installer helps install network drivers without an optical disc.

Suitable for

  • Compact desktop builds where space is limited (micro ATX cases)
  • Systems requiring PCIe Gen4 M.2 SSD performance
  • Office and home PCs using Intel LGA 1700 processors
  • Builds that need basic integrated graphics outputs (D-Sub/DP/HDMI)

Key specifications

  • Form factor: Micro ATX
  • Chipset: Intel B760
  • Processor socket: LGA 1700 (Intel Core i3/i5/i7/i9 compatible)
  • Memory: 2 × DIMM, DDR4‑SDRAM, up to 64 GB
  • M.2: PCIe Gen4 x4 M.2 for storage; M.2 (Key E) for Wi‑Fi module
  • SATA: SATA III ports (for HDD/SSD)
  • LAN: Gigabit Ethernet (Realtek RTL8111H)
  • Expansion: PCIe x1 slots (Gen3) and onboard video outputs: D-Sub, DisplayPort, HDMI
  • RAID: 0, 1, 5, 10 support

How to use

Install the motherboard into a compatible micro ATX case and secure it on standoffs. Fit an LGA 1700 processor and compatible CPU cooler, insert up to two DDR4 DIMMs, and connect storage devices to the M.2 slot(s) or SATA III ports. Use the M.2 (Key E) slot to install a Wi‑Fi module if wireless networking is required. Connect PSU power cables, front panel connectors, and peripherals, then power on and enter the BIOS to verify hardware and configure boot order and RAID settings if needed.

Usage recommendations

For optimal stability, use matched DDR4 memory modules and install the latest BIOS and chipset drivers from ASRock. When using a PCIe Gen4 M.2 SSD, verify the M.2 slot configuration in the manual to ensure full x4 bandwidth. Ensure adequate case airflow when installing high‑performance CPUs or M.2 SSDs.

Specifications

Motherboard form factor:
Micro ATX
Motherboard chipset:
Intel B760
Component for:
PC
Processor socket:
LGA 1700
Number of memory slots:
2
Maximum internal memory:
64 GB
PCI Express x1 (Gen 3.x) slots:
2
Supported memory types:
DDR4-SDRAM
All features

Features

Motherboard form factor:
Micro ATX
Motherboard chipset:
Intel B760
Component for:
PC
Certification:
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Audio output channels:
7.1
Windows operating systems supported:
Windows 11 x64, Windows 10 Education x64
Motherboard chipset family:
Intel

Processor

Processor manufacturer:
Intel
Maximum number of SMP processors:
1
Compatible processor series:
Intel Core i9, Intel Core i7, Intel Core i5, Intel Core i3
Processor socket:
LGA 1700

Memory

Number of memory slots:
2
Maximum internal memory:
64 GB
Supported memory types:
DDR4-SDRAM
Supported memory clock speeds:
5333, 4400, 3200
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Memory slots type:
DIMM
ECC сompatibility:
non-ECC

Expansion slots

PCI Express x1 (Gen 3.x) slots:
2
Number of M.2 (M) slots:
1
PCI Express x16 (Gen 4.x) slots:
1

Graphics

Parallel processing technology support:
Not supported
HDCP:
Yes

Network

Ethernet LAN:
Yes
LAN controller:
Realtek RTL8111H
Wi-Fi:
No
Ethernet interface type:
Gigabit Ethernet

Internal I/O

USB 2.0 connectors:
3
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Chassis intrusion connector:
Yes
TPM connector:
Yes
EPS power connector (8-pin):
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Number of SATA III connectors:
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
Front panel connector:
Yes

Rear panel I/O ports

PS/2 ports quantity:
1
Line-in:
Yes
USB 2.0 ports quantity:
2
Ethernet LAN (RJ-45) ports:
1
Microphone in:
Yes
VGA (D-Sub) ports quantity:
1
DVI-D ports quantity:
0
HDMI ports quantity:
1
DisplayPorts quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
1, 5, 10
RAID support:
Yes
Supported storage drive interfaces:
SATA III, M.2

BIOS

BIOS memory size:
128 Mbit
BIOS type:
UEFI AMI

Weight & dimensions

Width:
244 mm
Depth:
201 mm

Other features

DisplayPort version:
1.4
Audio chip:
Realtek ALC897

Packaging content

Cables included:
SATA
