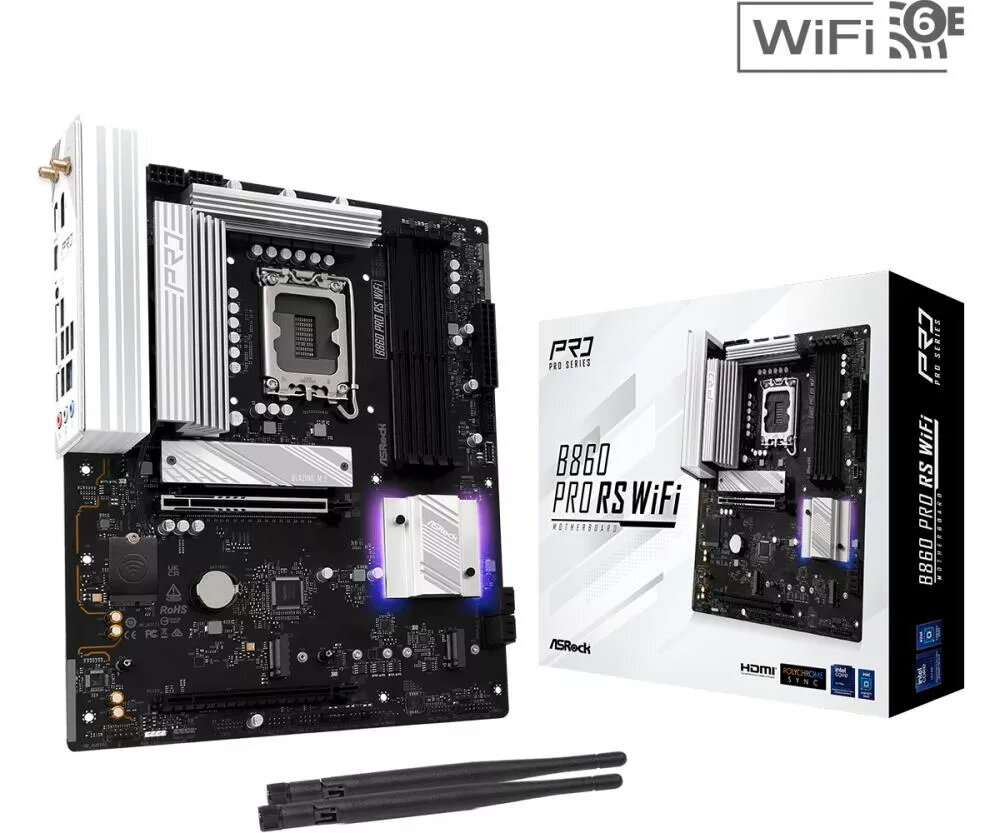

The ASROCK B860 PRO RS WIFI, LGA 1200 ATX motherboard supports DDR5 memory up to 8666 MHz across four DIMM slots and offers versatile connectivity for modern PC builds. It includes PCI-Express 4.0 x16 and PCI-Express 5.0 x16 slots, one M.2 slot for NVMe storage, integrated WiFi and Bluetooth, and onboard LAN with 2.5 Gigabit support. Video output availability depends on the installed CPU and provided display connectors include HDMI and DisplayPort. Onboard audio is handled by the Realtek ALC897 codec, and SATA 3.0 ports and RAID support (0, 1, 5, 10) are available for additional storage configurations.
Advantages
The motherboard provides high-speed DDR5 memory support with four slots for flexible RAM configurations and overclocking headroom. Dual-generation PCIe support (PCIe 4.0 and PCIe 5.0) allows compatibility with a broad range of graphics cards and expansion devices. Integrated WiFi and Bluetooth simplify wireless connectivity while the 2.5 Gb LAN ensures faster wired networking. A dedicated M.2 slot and multiple USB ports including USB-C and USB 3.2 enable modern peripheral and storage connections. TPM header and multiple audio and display outputs increase platform functionality for both productivity and multimedia use.
Suitable for
- Building a mid- to high-end desktop PC with DDR5 memory
- Systems requiring fast wired networking (2.5 Gb LAN) and wireless connectivity
- Workstations or gaming rigs that use PCIe 4.0/5.0 graphics cards and NVMe storage
- Users who need multiple USB ports including USB-C for peripherals
Key specifications
- CPU socket: LGA 1200 (check CPU compatibility)
- Form factor: ATX
- Memory: DDR5, 4 slots, up to 8666 MHz (manufacturer guidelines may apply)
- Expansion slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16
- Storage: 1x M.2 slot, SATA 3.0 ports with RAID 0/1/5/10 support
- Networking: Integrated WiFi, Bluetooth, RJ45 2.5 Gigabit LAN
- Video outputs: HDMI, DisplayPort (dependent on CPU graphics)
- USB: 2x USB 2.0, 6x USB 3.2, 1x USB-C
- Audio: Realtek ALC897 codec; Audio-In, Audio-Out, Microphone jacks
- Security: TPM header
How to use
Install the motherboard into an ATX-compatible case and mount a compatible LGA 1200 CPU following the CPU and cooler manufacturer instructions. Populate DDR5 memory modules across the four DIMM slots according to the motherboard manual to enable optimal dual- or quad-channel configurations. Connect power supply cables (24-pin ATX and CPU power), attach storage devices to the M.2 slot or SATA ports, and install expansion cards into the PCIe slots. Connect front-panel headers, USB ports, audio, and network cables as required. After assembly, enter the BIOS/UEFI to configure memory frequency, boot order, RAID settings if used, and enable onboard devices such as WiFi and TPM.
Usage recommendations
Use memory modules and CPUs that are listed as compatible by ASROCK for the B860 PRO RS WIFI to ensure system stability. Keep BIOS/UEFI up to date, and follow recommended cooling and power supply specifications for reliable performance. For high-speed storage and graphics, use NVMe drives and PCIe 4.0/5.0 compatible cards where supported.
