Power connector for Asus A52F laptop — original DC jack 5.5×2.5 mm, MPN PS-M-PJ033

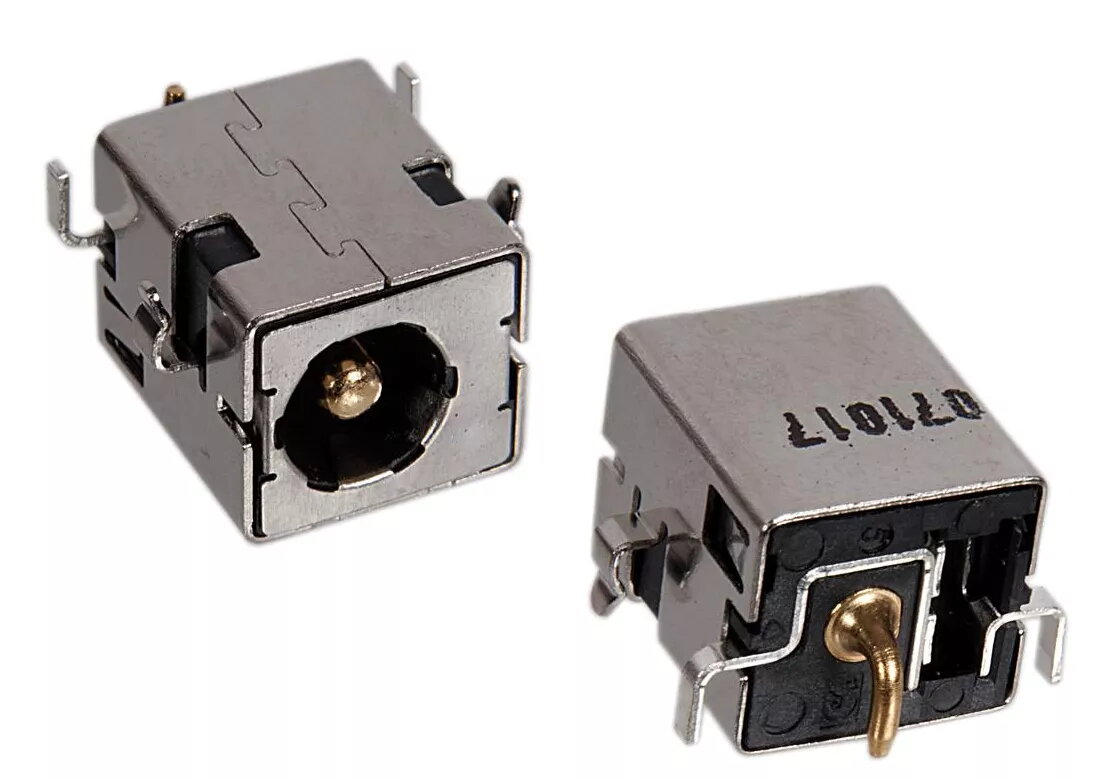

Original power connector (DC jack) PS-M-PJ033 for Asus A52F series and other compatible laptop models. The jack has a 5.5×2.5 mm outer/inner plug size and is intended to replace a damaged or worn DC input to restore stable power delivery and charging. This component is a genuine-style replacement specified for repairs where original-fit and correct electrical dimensions are required.

Advantages

The DC jack provides the correct 5.5×2.5 mm plug geometry and mounting dimensions for compatible Asus, Acer, Fujitsu and IBM ThinkPad models, helping to ensure secure connection and reliable charging. As an original-style part (MPN PS-M-PJ033 / EAN 4422190000590), it is suitable where matching OEM fit and electrical compatibility are important.

Suitable for

• Replacing a broken or loose power jack on Asus A52F and related Asus models
• Repairing Acer Aspire 9800 power input
• Servicing FUJITSU Amilo laptops listed in the compatibility set
• Restoring power input on IBM ThinkPad X40–X45 series

Key specifications

• Manufacturer part number (MPN): PS-M-PJ033
• EAN: 4422190000590
• Connector type: DC power jack (female)
• Plug size: 5.5 × 2.5 mm (outer × inner)
• Compatibility: Asus A52, A52F, A52JT, A53S, A53SC, A53SM, A53SV, A54H, K42DE, K42Jr, K43E, K43S, K43SD, K43SJ, K52F, K52JB, K52JC, K52JE, K52JK, K52Jr, K52JT, K53E, K53S, K53SC, K53SD, K53SJ, K53SK, K53SM, K53Sv, K53TA, K53U, K53Z, K54C, K54H, K54HR, K54HY, K54L, K73SV, K84L, N53SN, N53SV, N71Ja, N75SF, N75SL, P43SJ, P53E, P53SJ, X53DR, X52F, X53S, X53SJ, X53SM, X53SV, X53U, X54C, X54H; Acer Aspire 9800; FUJITSU Amilo A1667G, A667G, M1405, M1424, M1425, M1437, M1437G, M1439G, M3438, M3438G, M7405, Pi2530, Pi2550, Pro V2020, V2040, V3505, V3525, Ui3520; IBM ThinkPad X40, X41, X42, X43, X45

How to use

Power down the laptop, disconnect the battery and AC adapter before starting. Open the laptop chassis following the manufacturer's service manual to access the faulty DC jack. Desolder or unclip the old connector from the motherboard and fit the replacement PS-M-PJ033 in the same orientation and mounting position. Secure and solder the new jack, reassemble the laptop, reconnect the battery and AC adapter, then verify stable power input and charging function.

Рекомендации по использованию

Use appropriate electrostatic discharge (ESD) protection and follow service manual instructions. If unsure about soldering or disassembly, seek assistance from a qualified technician to avoid damage to the motherboard or other components.
