Dimensions (WxDxH):
-
117 x 98 x 26
-
Weight:
-
0.2 kg
-
Certification:
-
EMC: EN 55032/35
EMI: CISPR 32, FCC Part 15B Class A
EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV (Power Adapter), 1kV (Terminal Block); Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 10 MHz: 3 V/m; 10 kHz to 30 MHz: 3 to 1 V/m; 30 kHz to 80 MHz: 1 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
-
Power consumption (typical):
Power consumption in switched-on state expressed in W.
-
0.634 W
-
Security algorithms:
-
TLS, 2048-bit RSA, 802.1x RADIUS
-
Safety:
-
UL 60950-1, UL 62368-1
-
Operating relative humidity (H-H):
-
5 - 95
-
Cabling technology:
-
10/100Base-T(X)
-
Storage temperature (T-T):
-
-40 - 75
-
Package weight:
-
480 g
-
Operating temperature (T-T):
-
0 - 60
-

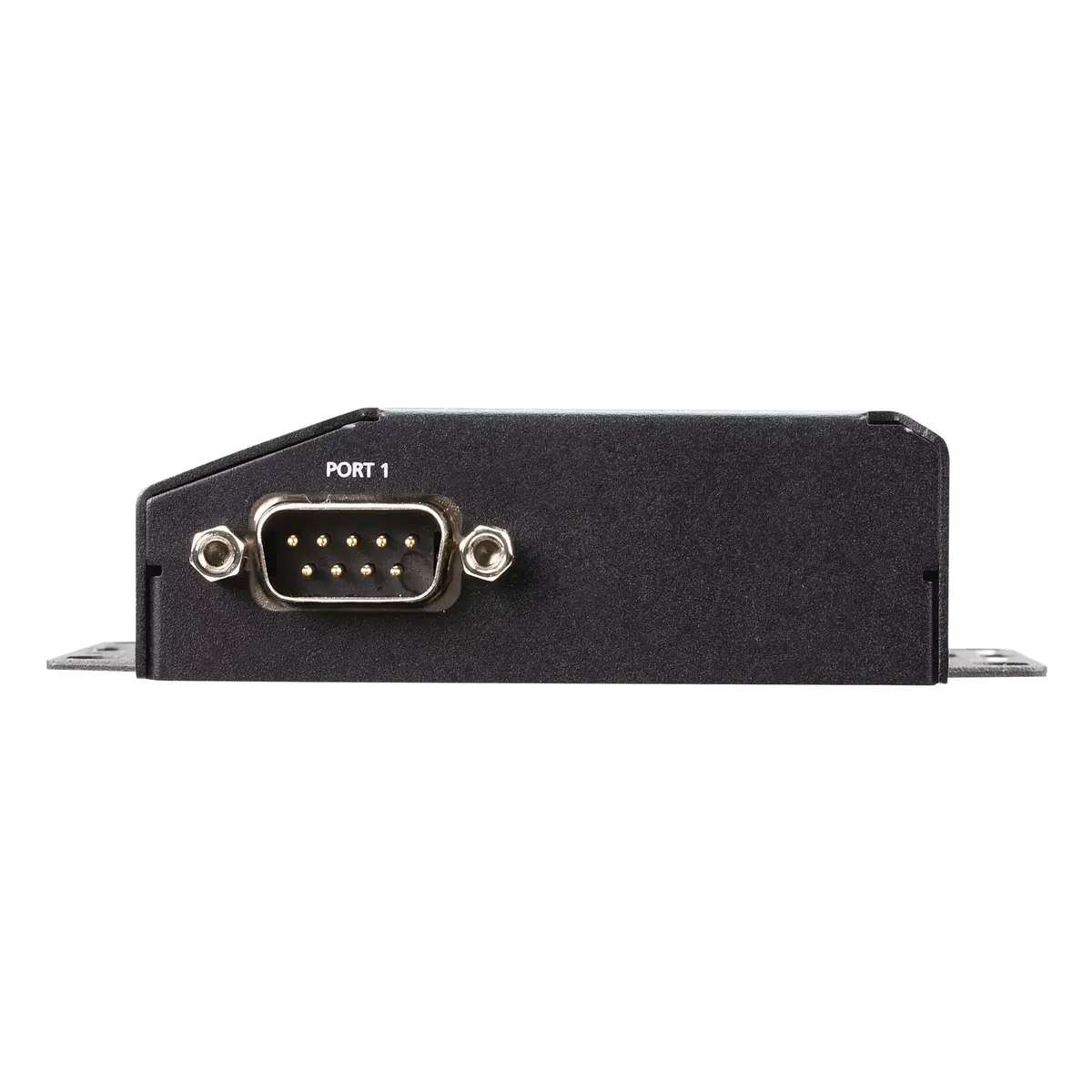

Serial interface type:
-
RS-232
-
AC adapter included:
-
Yes
-
Serial ports quantity:
-
1
-
Input voltage:
-
100 - 240
-
Output voltage:
-
9 - 48
-
LED indicators:
-
Status, Power
-
Product colour:
-
Black
-

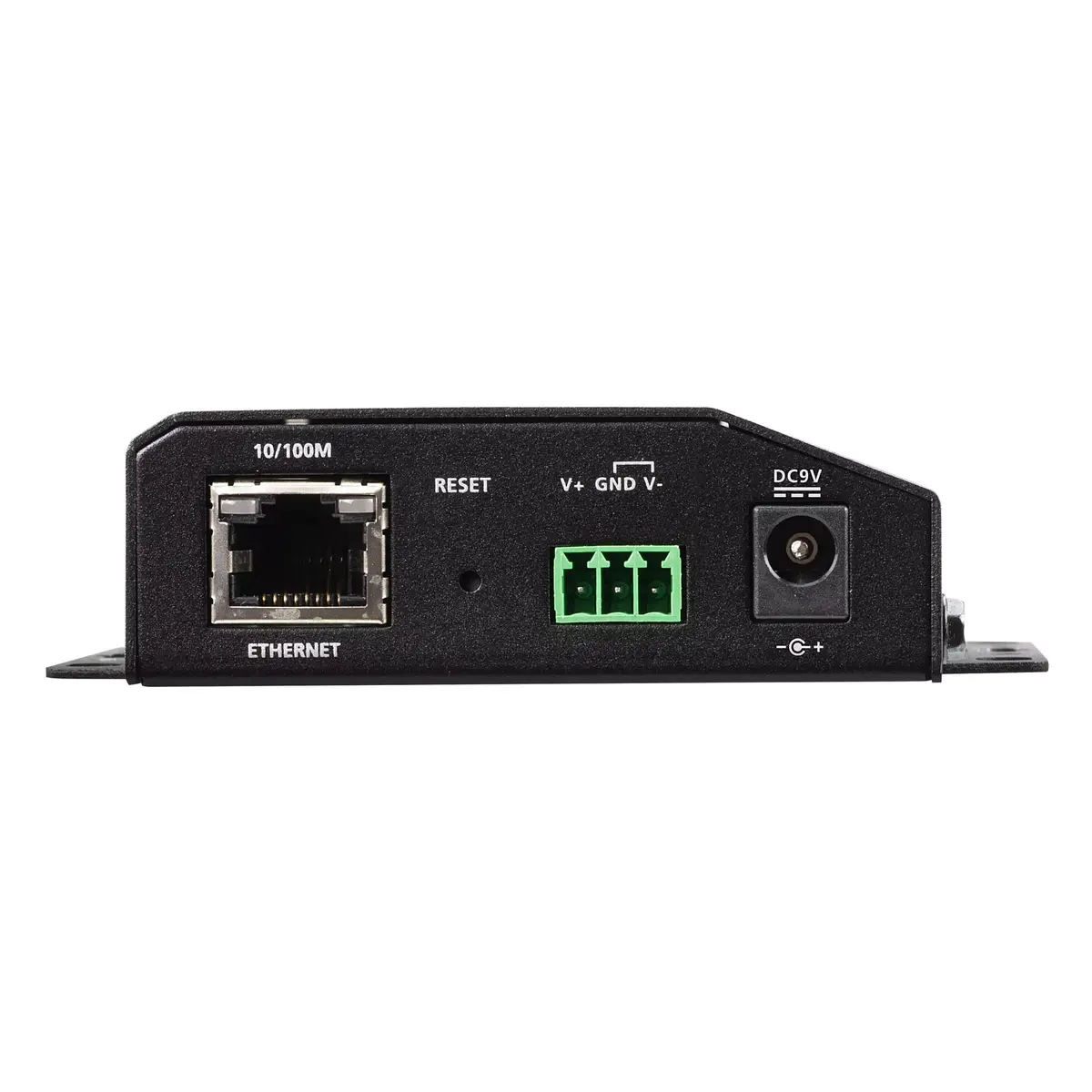

Ethernet LAN (RJ-45) ports:
-
1
-
Input frequency:
-
50 - 60
-
Country of origin:
-
Taiwan
-
Ethernet LAN data rates:
-
10, 100
-
Reset button:
-
Yes
-
Package height:
-
160 mm
-
Package width:
-
59 mm
-
Master (outer) case height:
-
178 mm
-
Master (outer) case width:
-
315 mm
-
Package length:
-
239 mm
-
Housing material:
-
Metal
-
RS-232 signals:
-
Tx, TXD, RTS, GND, DTR, DSR, DCD, CTS
-
Isolation:
-
1.5 kV
-
Baud rate:
-
921.6 Kbit/s
-
Data bits:
-
8, 7, 6, 5
-
Stop bits:
-
2, 1.5, 1
-
Parity bit:
-
Mark, Space, Odd, N, Even
-
Flow Control type:
-
XON/XOFF, RTS/CTS, DTR/DSR
-
Power source type:
-
DC
-
User guide:
-
Yes
-
Power consumption (max):
-
0.804 W
-
Terminal block included:
-
Yes
-
Master (outer) case gross weight:
-
9180 g
-
Terminal block port:
-
Yes
-
Master (outer) case length:
-
490 mm
-
Products per master (outer) case:
-
10 pc(s)
-
Master (outer) case net weight:
-
4100 g
-
Master (outer) case volume:
-
27467.34 cm³
-
Package volume:
-
2265.35 cm³
-
DIN rail kit included:
-
Yes
-
Number of foot pads:
-
4 pc(s)
-
Compliance certificates:
-
RoHS
