1-Port RS-232/422/485 Secure Device Server ATEN SN3401P PoE

1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 1

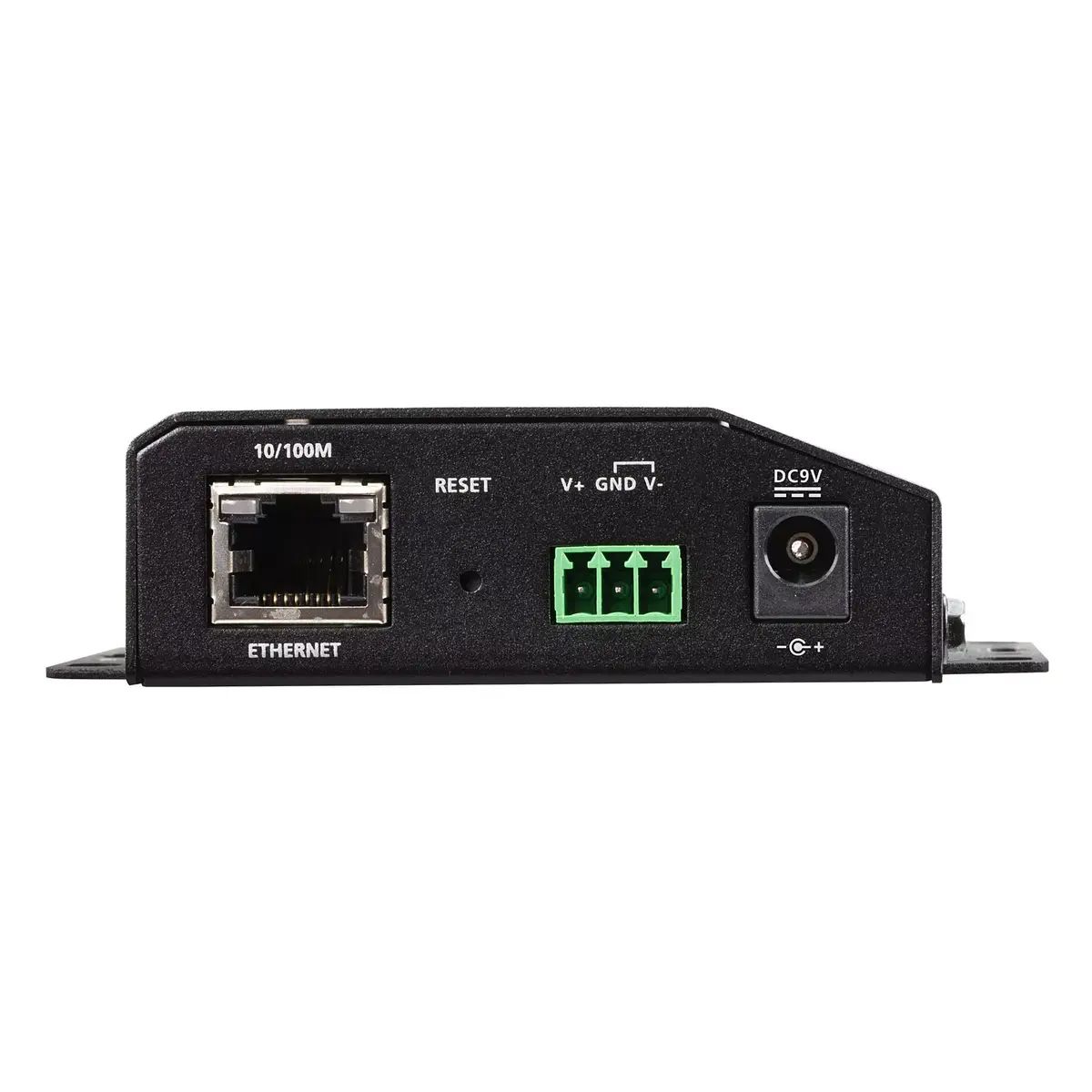

1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 2

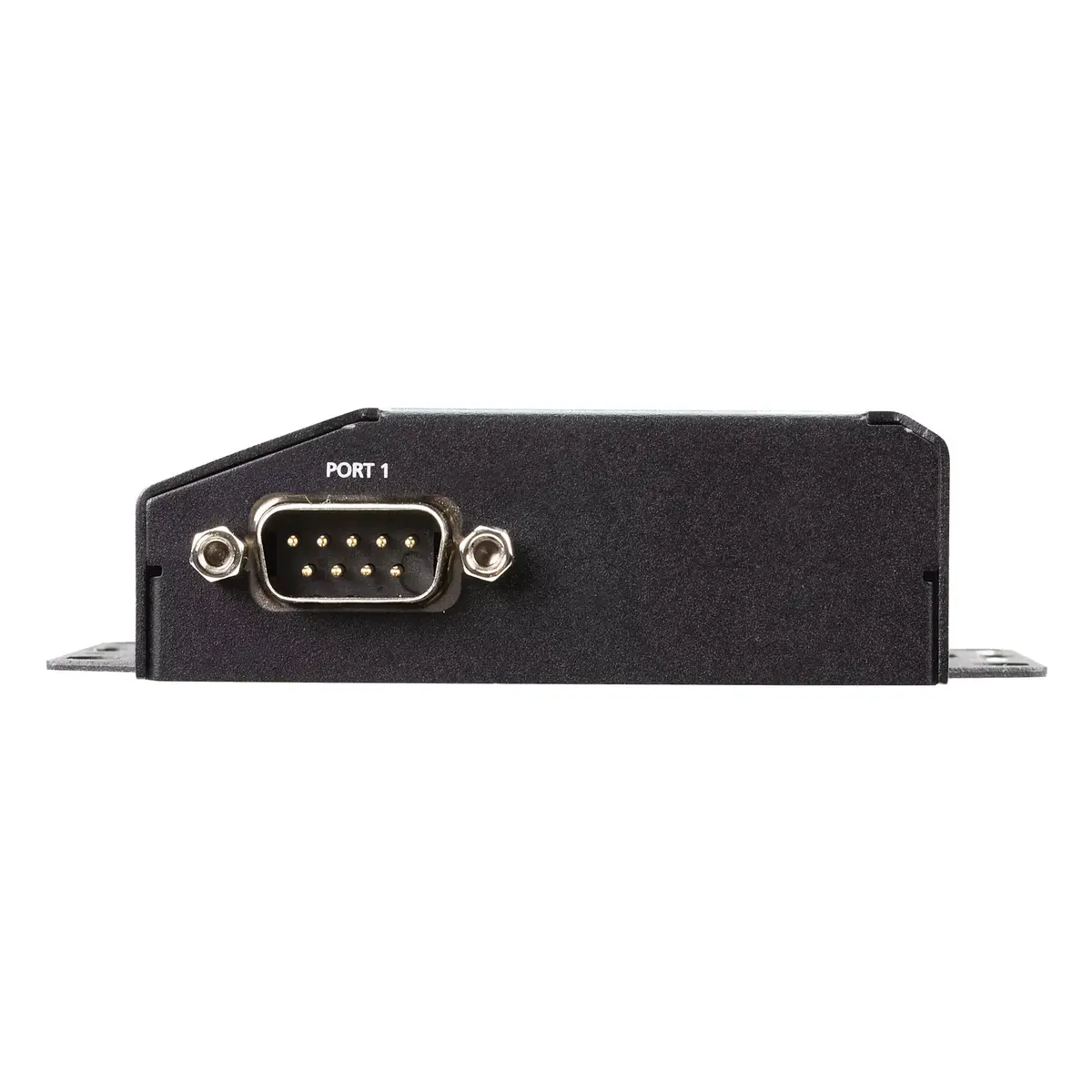

1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 3
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 1
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 2
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 3
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 1
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 2
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 3
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 1
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 2
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P Photo 3
1-Port RS-232/422/485 Secure Device Server ATEN SN3401P PoE
199.99 €
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

1-Port RS-232/422/485 Secure Device Server ATEN SN3401P PoE

{{email}}
You keep track of price changes

1-Port RS-232/422/485 Secure Device Server ATEN SN3401P PoE

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}
Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

The ATEN 1-Port RS-232/422/485 Secure Device Server SN3401P provides secure connectivity for serial devices. It supports DC and PoE power sources, ensuring low power consumption. The device features LED indicators for power and status, and its compact metal housing ensures durability. Ideal for industrial applications requiring reliable serial communication.
Available for order: 4 pcs.
Warranty: 2 Years
SKU: 11024054
Learn more
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

All delivery methods Hide details
Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
23.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
28.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
28.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
More about delivery methods
payment
Payment Methods:
Bank transfer
More about payment methods
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The ATEN 1-Port RS-232/422/485 Secure Device Server SN3401P PoE is a compact, industrial-grade solution that enables fast and secure serial-to-Ethernet connectivity for a wide range of serial devices. Supporting RS-232/422/485 interfaces, DC and PoE power sources, and a metal housing with LED indicators for power and status, the SN3401P is designed for reliable remote access and integration of serial equipment into IP networks for commercial and industrial process control environments.

Advantages

The SN3401P provides multi-layered security including network access control, user authentication, and data integrity/confidentiality features. It includes surge and isolation protection (1.5 kV magnetic isolation for Ethernet) and additional surge protection for serial, Ethernet, and power to guard against voltage spikes. The device supports multiple operation modes (Real COM, TCP, Serial Tunneling, Console Management, UDP), functions as a Modbus gateway between Modbus TCP and Modbus RTU/ASCII, and offers 64 KB port buffering, event logging, and automated notifications (SMTP, SNMP Trap) for reliable operation and troubleshooting.

Suitable for

  • Industrial process control and SCADA systems
  • POS and access control integrations
  • Environment and sensor monitoring
  • Remote site management and device management

Key specifications

  • Interfaces: 1 x RS-232/422/485 serial port
  • Network: Ethernet with 1.5 kV magnetic isolation
  • Power: DC and PoE support
  • Buffer: 64 KB port buffering
  • Mounting: wall, desktop, DIN rail, rack (optional VE-RMK1U)
  • Security: network access control, user authentication, data integrity/confidentiality
  • Protocol support: Real COM, TCP, Serial Tunneling, Console Management, UDP, Modbus gateway (TCP ↔ RTU/ASCII)
  • Indicators: LED for power and status
  • Housing: compact metal enclosure
  • Brand/Model: ATEN SN3401P (MPN: SN3401P, EAN: 4710469341564)

How to use

Install the SN3401P using the appropriate mounting option (wall, desktop, DIN rail, or rack with optional kit). Connect the serial device to the RS-232/422/485 port and attach Ethernet and power (DC or PoE). Access the device setup via the 3-step web console in a browser or via Telnet/SSH for low-bandwidth environments. Configure the desired operation mode (for example Real COM or Modbus gateway), set up network and security parameters, and save the configuration to enable remote access from a PC or networked system.

Usage recommendations

For stable and secure operation, use PoE or a regulated DC power source, enable available security functions (authentication and encrypted channels), maintain firmware updates, and configure event notifications and syslog to monitor device status and capture logs for troubleshooting.
All features
Weight:
0.21 kg
Power consumption (typical): Power consumption in switched-on state expressed in W.
1.18 W
Safety:
UL 60950-1, UL 62368-1
Operating relative humidity (H-H):
5 - 95
Storage temperature (T-T):
-40 - 75
Package weight:
420 g
Operating temperature (T-T):
0 - 60
Serial interface type:
RS-232/422/485
Serial ports quantity:
1
Ethernet LAN:
Yes
Height:
26 mm
Input voltage:
100 - 240
Output voltage:
9 - 48
LED indicators:
Status, Power
Width:
117 mm
Depth:
98 mm
Product colour:
Black
Data transfer rate:
100 Mbit/s
Networking standards:
IEEE 802.3af
Ethernet LAN (RJ-45) ports:
1
Flow control support:
Yes
Input frequency:
50 - 60
Country of origin:
Taiwan
Ethernet LAN data rates:
100, 10
Reset button:
Yes
Package depth:
239 mm
Package height:
160 mm
Package width:
59 mm
Master (outer) case height:
178 mm
Master (outer) case width:
315 mm
Housing material:
Metal
RS-232 signals:
TXD, RXD, RTS, GND, DTR, DSR, DCD, CTS
Surge protection voltage:
2 kV
Isolation:
1.5 kV
Electrostatic Discharge (ESD) protection:
8 kV
Baud rate:
921.6 Kbit/s
RS-422 signals:
TxD-, TxD+, RxD-, RxD+, GND
RS-485 signals:
RxD-, TxD-, TxD+, RxD+, GND, Data-, Data+
Data bits:
8, 7, 6, 5
Stop bits:
2, 1.5, 1
Parity bit:
Mark, Even, N, Space, Odd
Flow Control type:
XON/XOFF, RTS/CTS, DTR/DSR
Power source type:
PoE, DC
User guide:
Yes
Power consumption (max):
1.3 W
Terminal block included:
Yes
DIN rail mounting:
Yes
Master (outer) case gross weight:
5510 g
Terminal block port:
Yes
Master (outer) case length:
490 mm
Products per master (outer) case:
10 pc(s)
Master (outer) case net weight:
3300 g
Master (outer) case volume:
27467.33 cm³
Package volume:
2265.35 cm³
DIN rail kit included:
Yes
Number of foot pads:
4 pc(s)
Sustainability compliance:
Yes
Sustainability certificates:
UL ECOLOGO
Compliance certificates:
RoHS
