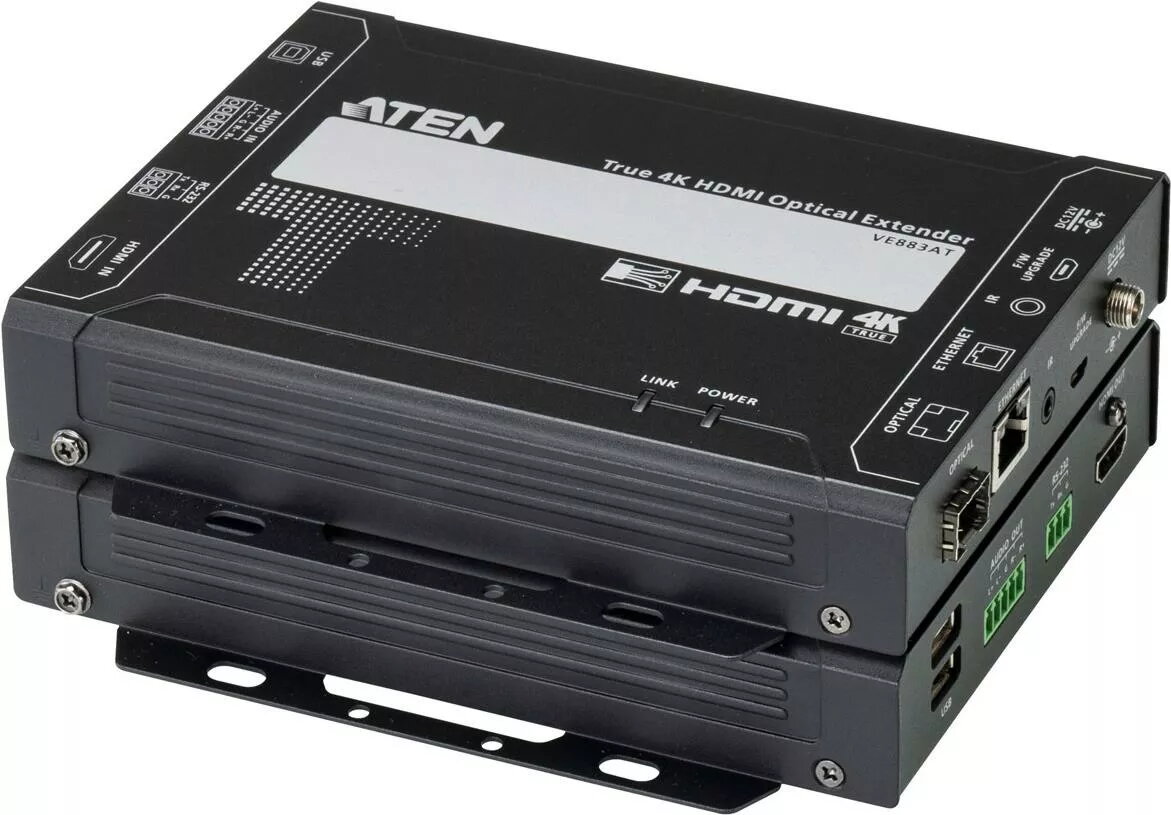

AV transmitter & receiver ATEN VE883AK1 True 4K HDMI Optical Extender 4K@300m 10km

Connectivity technology:

Wired

Fiber optic connector:

LC

Fiber mode structure:

Multi-mode

Fiber optic wavelengths supported:

850

Electrostatic Discharge (ESD) protection:

Yes

IR emitter included:

Yes

Ports & interfaces

USB connector type:

Micro-USB B

DC-in jack:

Yes

HDMI in:

1

Number of HDMI outputs:

1

USB version:

2.0

RJ-45 input ports:

1

RJ-45 output ports:

1

USB ports quantity:

1

Bidirectional:

Yes

Video

Bandwidth:

10.2 Gbit/s

Technical details

Ethernet LAN:

Yes

Type:

AV transmitter & receiver

Material:

Metal

Electrostatic Discharge (ESD) protection:

15 kV

Maximum transfer distance:

300 m

Sustainability certificates:

RoHS

Power

Operating voltage:

5 V

Power consumption (receiver) (max):

6.5 W

Power consumption (transmitter) (max):

7.01 W

Weight & dimensions

Receiver dimensions (WxDxH):

146.9 x 169.4 x 30

Receiver weight:

660 g

Transmitter dimensions (WxDxH):

146.9 x 169.4 x 30

Transmitter weight:

670 g

Operational conditions

Operating relative humidity (H-H):

0 - 80

Storage temperature (T-T):

-20 - 60

Operating temperature (T-T):

0 - 40

Packaging data

Package weight:

3060 g

Package depth:

540 mm

Package height:

233 mm

Package width:

116 mm

Packaging content

AC adapter included:

Yes

Cables included:

USB

IR receiver included:

Yes

Logistics data

Country of origin:

Taiwan

Master (outer) case height:

258 mm

Master (outer) case width:

375 mm

Master (outer) case gross weight:

10090 g

Master (outer) case length:

565 mm

Harmonized System (HS) code:

85176200

Features

Plug and Play:

Yes

LED indicators:

Y

Maximum resolution:

4096 x 2160

Product colour:

Black

Supported graphics resolutions:

4096 x 2160, 3840 x 2160

Bandwidth:

340 MHz

HDCP:

Yes

3D:

Yes

HDCP version:

2.2

Other features

Firmware upgradeable:

Yes

Network

Cable types supported:

Fiber
