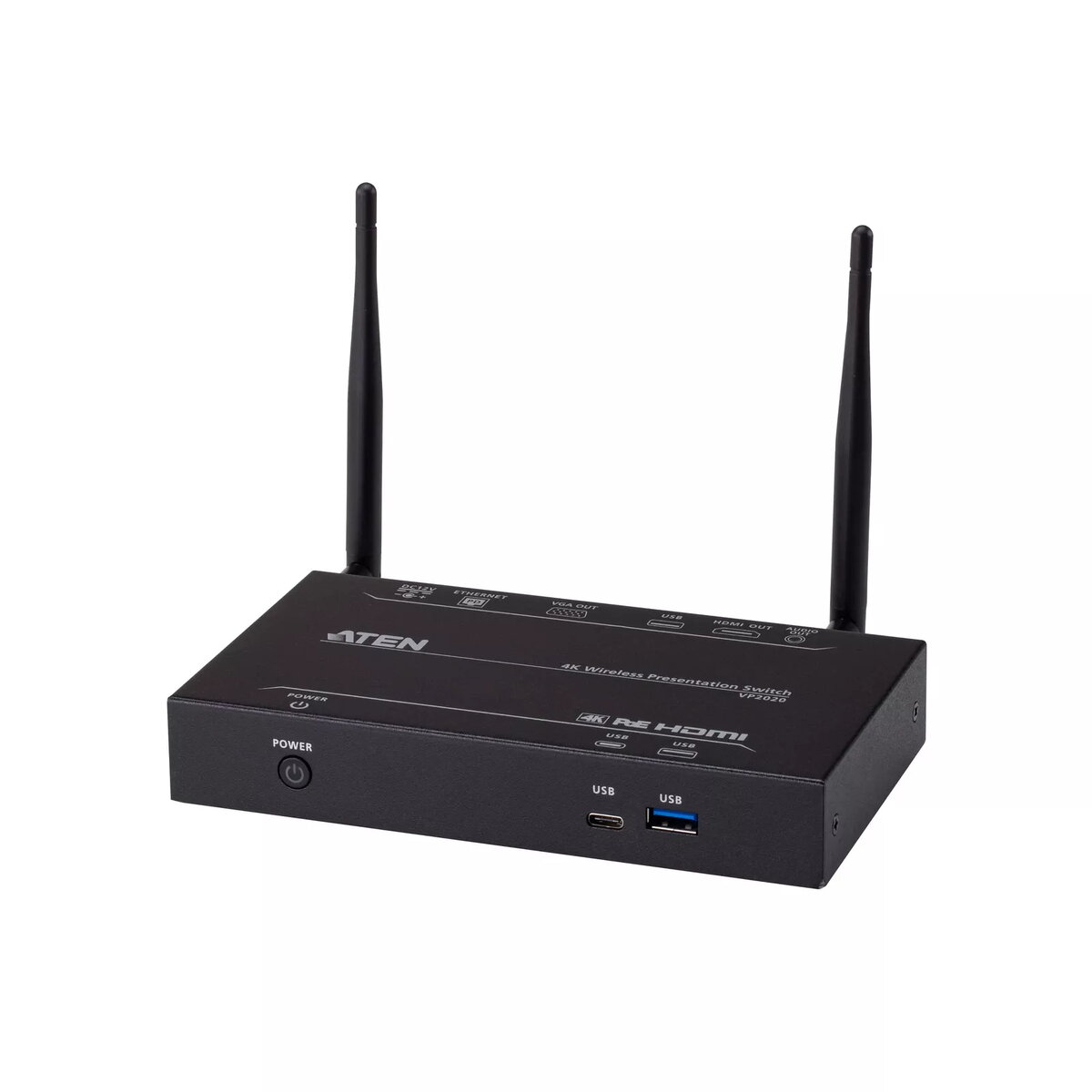

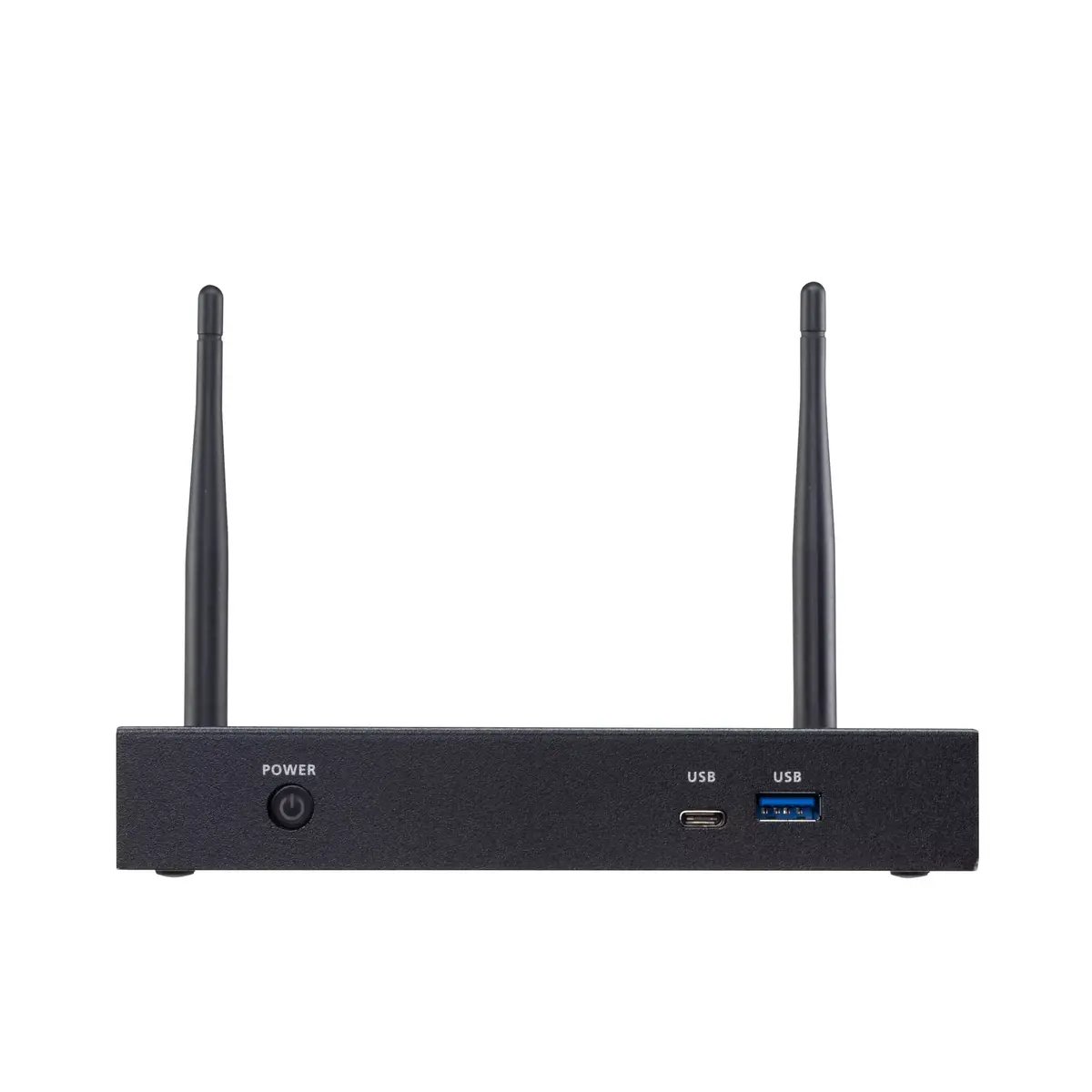

ATEN 4K Wireless Presentation Switch Desktop Black HDMI VGA Wi-Fi 5

Interface: Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

HDMI + VGA (D-Sub)

Form factor: The shape or design of the product.

Desktop

Frequency band: A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.

2.4/5

Headphone outputs: Number of sockets /ports where headphones are connected.

1

Antennas quantity:

2

Power source type: What the power source is.

DC

Number of simultaneously connected devices (max):

2

Maximum resolution (HDMI):

4096 x 2160

Maximum resolution (VGA):

1920 x 1080

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1

AirPlay mirroring:

Yes

Top Wi-Fi standard: Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 5 (802.11ac)

Google Cast:

Yes

Logistics data

Master (outer) case volume:

32847.54 cm³

Master (outer) case height:

283 mm

Master (outer) case length:

500 mm

Master (outer) case width:

232 mm

Products per master (outer) case:

5 pc(s)

Master (outer) case gross weight:

6370 g

Country of origin: Country where the device is made. Aka Country of manufacture (COM).

Taiwan

Technical details

Security algorithms: Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

WPA, WPA2, WPA2-PSK, WEP

Antenna type: Type of antenna, also known an aerial, e.g. external, internal.

External

On/off switch: The button which is pressed to switch the device on or off.

Yes

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Packaging data

Package volume:

5663.37 cm³

Package weight: Weight of the packaged product.

1150 g

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

0.47 kg

Height: The measurement of the product from head to foot or from base to top.

28.3 mm

Depth: The distance from the front to the back of something.

170 mm

Width: The measurement or extent of something from side to side.

104 mm

Operational conditions

Operating relative humidity (H-H):

-20 - 60

Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.

0 - 80

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Packaging content

AC adapter included:

Yes

Quick start guide: Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Yes

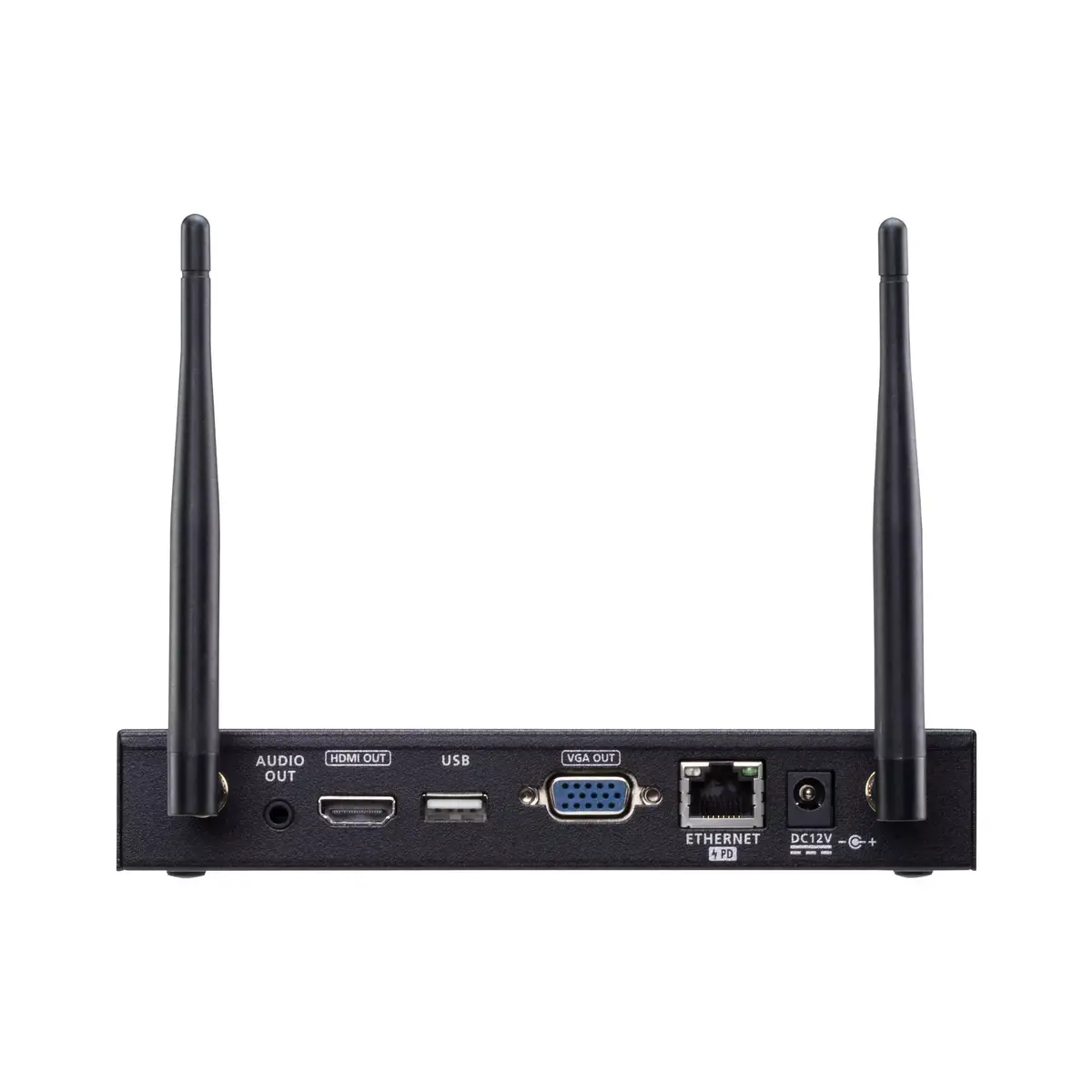

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.

Yes

VGA (D-Sub) output ports:

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:

1

Number of HDMI outputs: Port (socket) for HDMI output.

1

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

Power

Power over Ethernet (PoE): The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Yes

Network

Wi-Fi standards: The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 5 (802.11ac)

Features

LED indicators:

Power

Maximum operating distance: The maximum distance from which you can operate the device.

30 m

Supported graphics resolutions: The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 3840 x 2160, 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080), 1680 x 1050 (WSXGA+), 1600 x 1200 (UXGA), 1440 x 900 (WXGA+), 1280 x 800 (WXGA), 1280 x 720 (HD 720), 1280 x 1024 (SXGA)

Web-based management: Using a website/web application to manage something.

Yes

Product colour: The colour e.g. red, blue, green, black, white.

Black

Housing material: What the casing of the product is made of.

Metal
