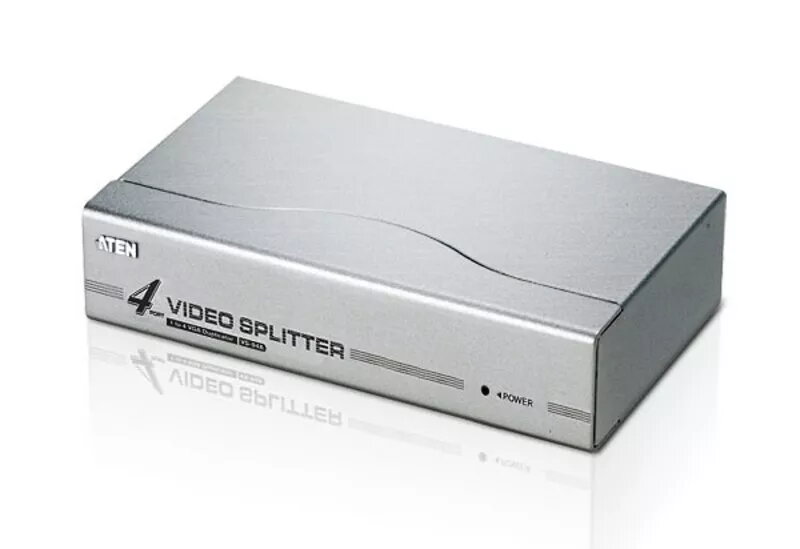

VGA Video Splitter ATEN VS94A — 4x VGA outputs, 350 MHz, max 1920x1440, metal silver

ATEN VS94A is a 4-port VGA video splitter that duplicates a single VGA input to four identical VGA outputs while maintaining image clarity up to a maximum resolution of 1920 × 1440 pixels. Housed in a silver metal enclosure, the unit is designed for stable distribution of analog video signals with a bandwidth of 350 MHz and supports VGA, XGA, SVGA, UXGA and multisync monitors. The splitter can boost the signal for transmission over longer cable runs and is cascable to expand distribution to a larger number of displays.

Advantages

The device provides four simultaneous VGA outputs from one source, preserving resolution and signal quality with a wide 350 MHz bandwidth. It supports extended cable lengths up to 65 meters and can be cascaded to drive up to 64 displays, enabling scalable installations. The metal silver housing offers durable protection and improved shielding against external interference, while low power consumption and a compact form factor simplify integration into presentation, digital signage, and training setups.

Suitable for

• Conference rooms and presentation systems where one PC or media player must feed multiple displays
• Digital signage installations in retail, hospitality, and public spaces
• Classrooms and training environments requiring the same screen image on multiple monitors
• Monitoring stations that need mirrored VGA feeds to multiple operator consoles

Key specifications

• Video port type: VGA
• Number of outputs: 4 (plus 1 input)
• Maximum supported resolution: 1920 × 1440 pixels
• Bandwidth: 350 MHz
• Maximum cable transmission distance: up to 65 meters (signal boosting)
• Cascadable to support up to 64 displays
• Power input: AC 9 V
• Typical power consumption: 3.28 W
• Product colour: Silver metal housing
• Weight: 0.68 kg

How to use

Connect the VGA source (PC, laptop, or media player) to the splitter's input connector, then connect up to four VGA monitors to the output connectors using VGA cables. Plug the supplied AC 9 V power adapter into the unit and an appropriate mains outlet. The splitter will duplicate the incoming video signal to all connected displays automatically. For longer cable runs, use quality shielded VGA cables and consider the unit's signal boosting capability; cascaded splitters can be used to extend distribution to additional displays as needed.

Usage recommendations

To achieve best image quality, use high-quality VGA cables, keep cable runs within recommended distances when possible, and ensure connected displays support the target resolution. For larger installations, plan cascade points and power availability in advance and test signal integrity after adding each cascade stage.
