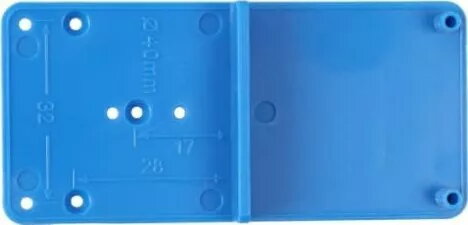

Hinge mounting template ATL NZ12D — drill guide for door hinge positioning

The ATL NZ12D hinge mounting template is a precision drill guide created to assist in accurate positioning and installation of door hinges. It is engineered to provide repeatable hole alignment for mortise and surface-mounted hinges, simplifying the preparation of doors and frames. The tool is lightweight and designed for use by carpenters, joiners and installers who require consistent hinge placement to ensure proper door fit and operation.

Advantages

The drill guide ensures consistent hole spacing and alignment, reducing measurement errors and rework. Its rigid construction keeps the template stable during drilling, which helps achieve clean, accurately placed hinge recesses. The template speeds up repetitive hinge installations and supports both new installations and retrofit work, improving overall workflow efficiency on site or in the workshop.

Suitable for

• Installing residential and commercial door hinges
• Carpentry and joinery hinge placement tasks
• Retrofit or replacement of existing hinges
• Workshops and on-site door fitting

Key specifications

• Purpose: drill guide for accurate hinge positioning
• Compatibility: designed for standard door hinge sizes and common hinge types
• Material: rigid template construction for stable drilling (material subject to model)
• Functionality: repeatable hole alignment for consistent hinge placement
• Use environment: suitable for workshop and on-site installation

How to use

Position the template on the door or frame edge at the required hinge location, align it with the door face and mark or clamp it in place according to the template guidance. Use the guide holes in the template to drill pilot holes or to route hinge recesses, keeping drill speed and pressure steady to avoid tear-out. Verify alignment after drilling and fit the hinge to confirm correct placement before final fixing.

Usage recommendations

For best results, check compatibility with the hinge type and door thickness before starting, secure the template firmly to prevent movement, and use sharp drill bits or a suitable router cutter. Inspect the first hinge fit before repeating the process for additional hinges to ensure consistent results across multiple doors or frames.
