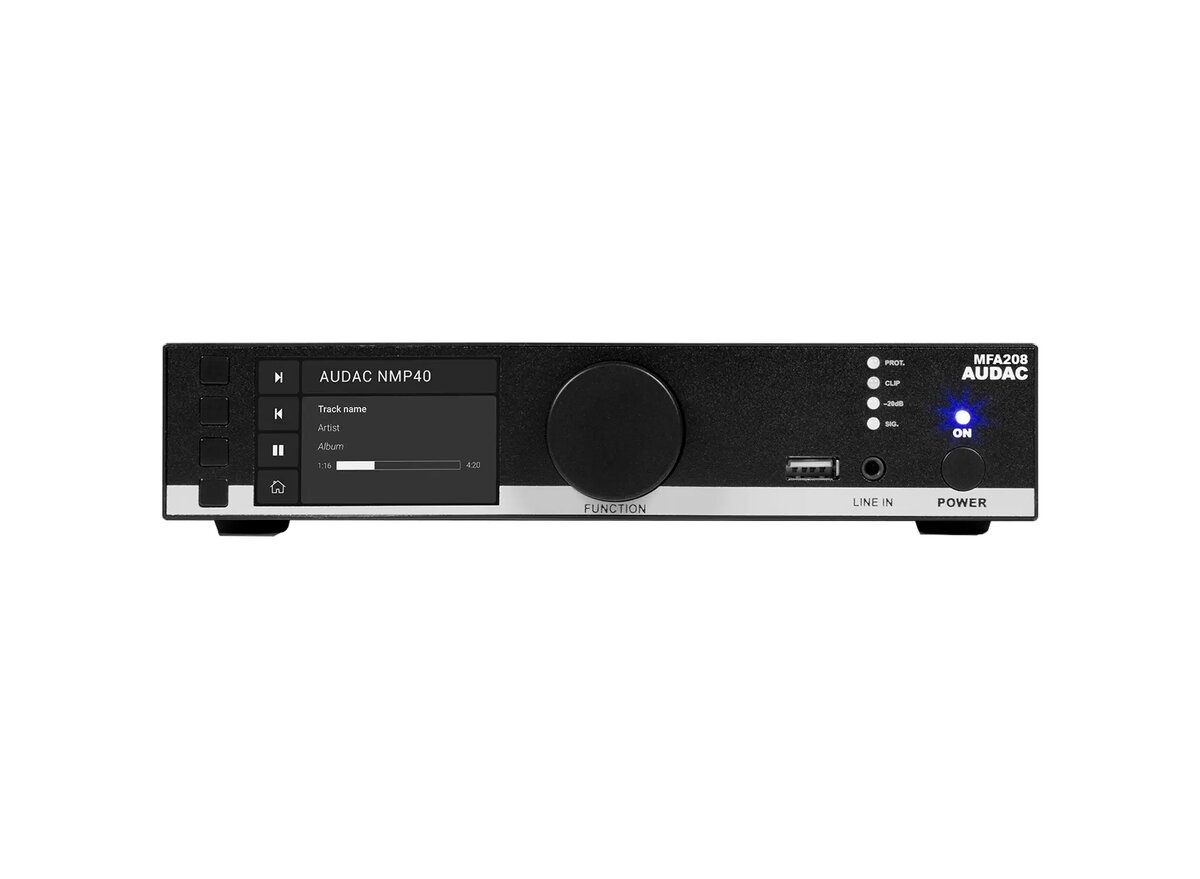

Audio amplifier Audac MFA208 2.0 channels Class D, RCA/3.5mm/Euroblock, USB-A, 100–240V

Material: The material from which a thing is or can be made e.g. wood, plastic.

Steel

LED indicators:

Y

Microphone in: The socket where a microphone is connected to the device.

Yes

Purpose: What the product is used for.

Multi-purpose

Rack capacity: The spase that device fill in rack.

1U

On/off switch: The button which is pressed to switch the device on or off.

Yes

Power protection features: Features that protect the device against power problems e.g. overload.

Overheating, Overload, Short circuit

Line inputs (RCA):

1

Power source type: What the power source is.

AC

Amplifier class: An electronic amplifier, amplifier, or (informally) amp is an electronic device that increases the power of a signal. It does this by taking energy from a power supply and controlling the output to match the input signal shape but with a larger amplitude. Power amplifier circuits (output stages) are classified as A, B, A/B and C for analog designs, and class D and E for switching designs based on the proportion of each input cycle (conduction angle), during which an amplifying device is passing current.

D

Gain adjustment:

Rotary

Built-in display: A display which is part of the product, so you do not need to attach another display.

Yes

Bridge function:

Yes

Maximum output power:

80 W

Number of Euroblock output connectors:

1

Number of Euroblock input connectors:

1

USB port type:

USB Type-A

Packaging data

Package weight: Weight of the packaged product.

4000 g

Operational conditions

Operating relative humidity (H-H):

0 - 95

Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.

0 - 40

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

2.2 kg

Height: The measurement of the product from head to foot or from base to top.

43.7 mm

Depth: The distance from the front to the back of something.

300 mm

Width: The measurement or extent of something from side to side.

217.5 mm

Power

AC input frequency:

50 - 60

AC input voltage: The voltage of the AC electricity that is inputted into the product.

100 - 240

Technical details

Warranty period:

5 year(s)

Product colour: The colour e.g. red, blue, green, black, white.

Black, White

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.

CE

Ports & interfaces

Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Speakers connectivity type: The type of connection used for the speakers e.g. RCA connector.

RCA/3.5mm/Euroblock

Outputs

Line-out:

Yes

Inputs

Ethernet LAN (RJ-45) ports: Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

AC (power) in:

Yes

Audio

Signal-to-Noise Ratio (SNR): This is the ratio of signal intensity to noise intensity.

90 dB

RMS rated power: RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.

40 W

Frequency range: The lowest and the hightest frequencies that can be inputted/produced.

20 - 20000

Output impedance:

4, 8, 16

Total Harmonic Distortion (THD): Total harmonic distortion is a measure of non-linear harmonic distortion and is given in %. Non-linear harmonic distortions are signals which were not present in the original before the signal was converted by the headphones. These unwanted signals are caused by the diaphragm, whose movements do not precisely move in time with the electric signals that cause it to move. Unfortunately, this is a feature of all electroacoustic transducers. Although it cannot be completely eliminated, suitable steps can be taken to minimise it. However, the user is not interested in why this distortion takes place but in how great the level of distortion must be for it to become perceptible. According to the findings of several research projects, a total harmonic distortion of 1% in the frequency range of 100 to 2000 Hz is imperceptible. Below 100 Hz, the perceptibility threshold lies at 10%.

0.05 %

Audio output channels: An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

2.0
