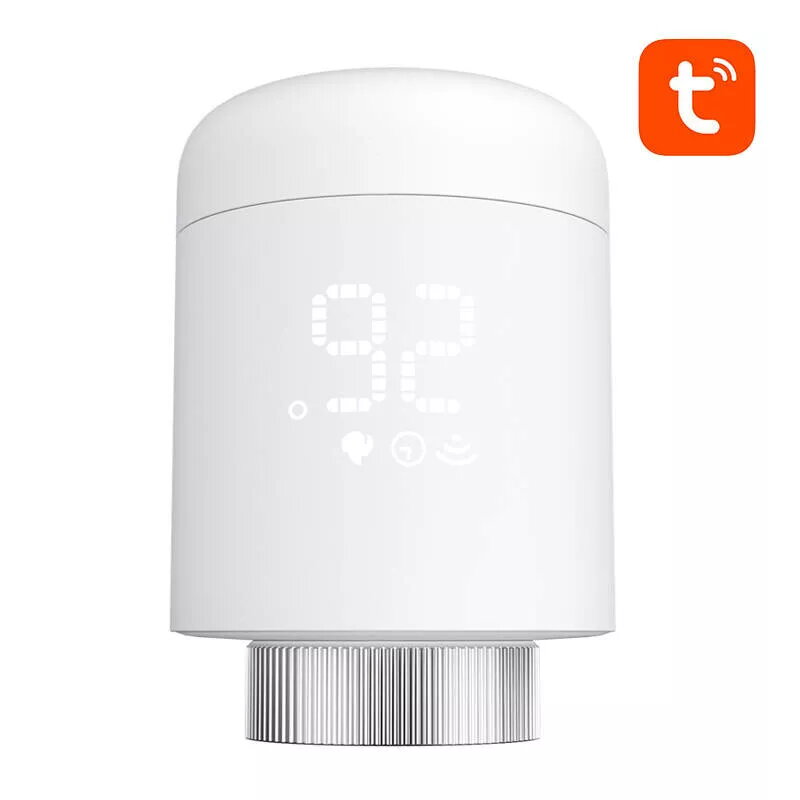

Thermostatic Radiator Valve Avatto TRV16 Zigbee — Smart TRV, Tuya/Zigbee compatible

Avatto TRV16 Zigbee Tuya smart thermostatic head is a compact smart thermostatic radiator valve that replaces a manual valve to enable precise, remote and automated control of radiator temperature. Compatible with Zigbee 3.0 and Tuya ecosystems, the device is designed for room-level climate regulation, schedule-driven heating and integration into smart home scenes via a Zigbee gateway.

Advantages

The Avatto TRV16 combines a compact housing (51.5 × 77 mm) with a powerful internal motor and simple battery power (2 × 1.5 V AA). It supports Zigbee 3.0 (IEEE802.15.4) at 2.4 GHz for reliable wireless operation, offers temperature sensing with an NTC sensor and ±1°C tolerance, and is delivered with six adapters to fit a range of radiator valves. The device supports voice control through Amazon Alexa and Google Home when used with a compatible gateway.

Suitable for

• Apartments and houses where individual radiator control is required
• Smart home systems using Tuya or Zigbee hubs (Zigbee 3.0)
• Energy-saving heating schedules and room-by-room climate management
• Integration into scenes and group control of multiple valves

Key specifications

• Producer: Avatto
• Model: TRV16 zigbee
• Dimensions: 51.5 × 77 mm
• Battery: 2 × 1.5 V AA
• Temperature sensor: NTC
• Working temperature: -10°C to 40°C
• Temperature tolerance: ±1°C
• Wireless protocol: Zigbee 3.0 (IEEE802.15.4), 2.4 GHz
• Voice control (with gateway): Amazon Alexa, Google Home
• Thread size: M30 × 1.5 mm

How to use

Install the Avatto TRV16 on the radiator using one of the included adapters to match the valve thread (M30 × 1.5 mm compatibility noted). Insert two AA batteries and pair the device with your Zigbee gateway or Tuya-compatible hub following the app instructions. Use the Smart Life or Tuya app to configure weekly schedules, create scenes and enable group control. When connected to a compatible gateway, enable voice control via Alexa or Google Home. The device can also be controlled locally via its motorized head.

Usage recommendations

Place the thermostatic head on radiators in rooms where accurate temperature control is needed and avoid direct sunlight or heat sources near the sensor. Use the app’s child lock to prevent unintended changes, program weekly schedules for efficient energy use, and ensure the Zigbee gateway remains within recommended range for stable communication. Replace AA batteries when app notifications indicate low charge.
