Light switch frame Avatto TS20 — 2-socket, white

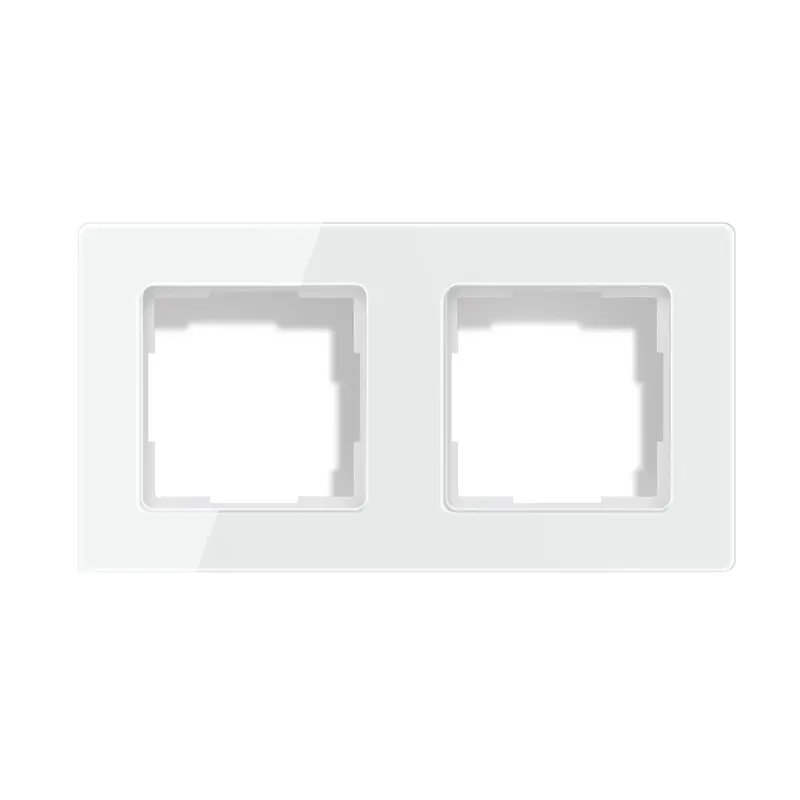

The white Avatto TS20 2-socket light switch frame is a finishing panel for modular 55 × 55 mm smart electrical installations. It accepts two standard modules side by side and provides a smooth tempered glass front that resists scratches, does not yellow over time and is simple to clean. The frame is intended for flush mounting and works with a range of Avatto modular components such as switches, sockets and control modules.

Advantages

The tempered glass front combines durability and easy maintenance while maintaining a consistent white appearance. The double-slot design allows installation of two 55 × 55 mm modules in a compact layout. The frame supports standard flush mounting, simplifying replacement or upgrade of existing modular components without changing wall boxes.

Suitable for

• Residential rooms where two modular devices are needed side by side
• Offices and commercial spaces with modular smart switches or sockets
• Replacement or modernization of existing 55 × 55 mm modular installations

Key specifications

• Overall dimensions: 151 × 80 × 11 mm
• Internal module opening: 55 × 55 mm (modular standard)
• Slots: 2 (double)
• Front material: tempered glass
• Rear/trim material: plastic
• Color: white

How to use

Turn off power before installation. Fit two compatible 55 × 55 mm Avatto modules into the frame openings, ensuring correct orientation of any icons or markings. Secure the assembled frame into a standard flush wall box according to local electrical regulations and restore power after installation is complete.

Usage recommendations

For vertical mounting, rotate inserts if necessary so symbols and labels are readable; clean the tempered glass with a soft, non-abrasive cloth and mild detergent to avoid scratches.
