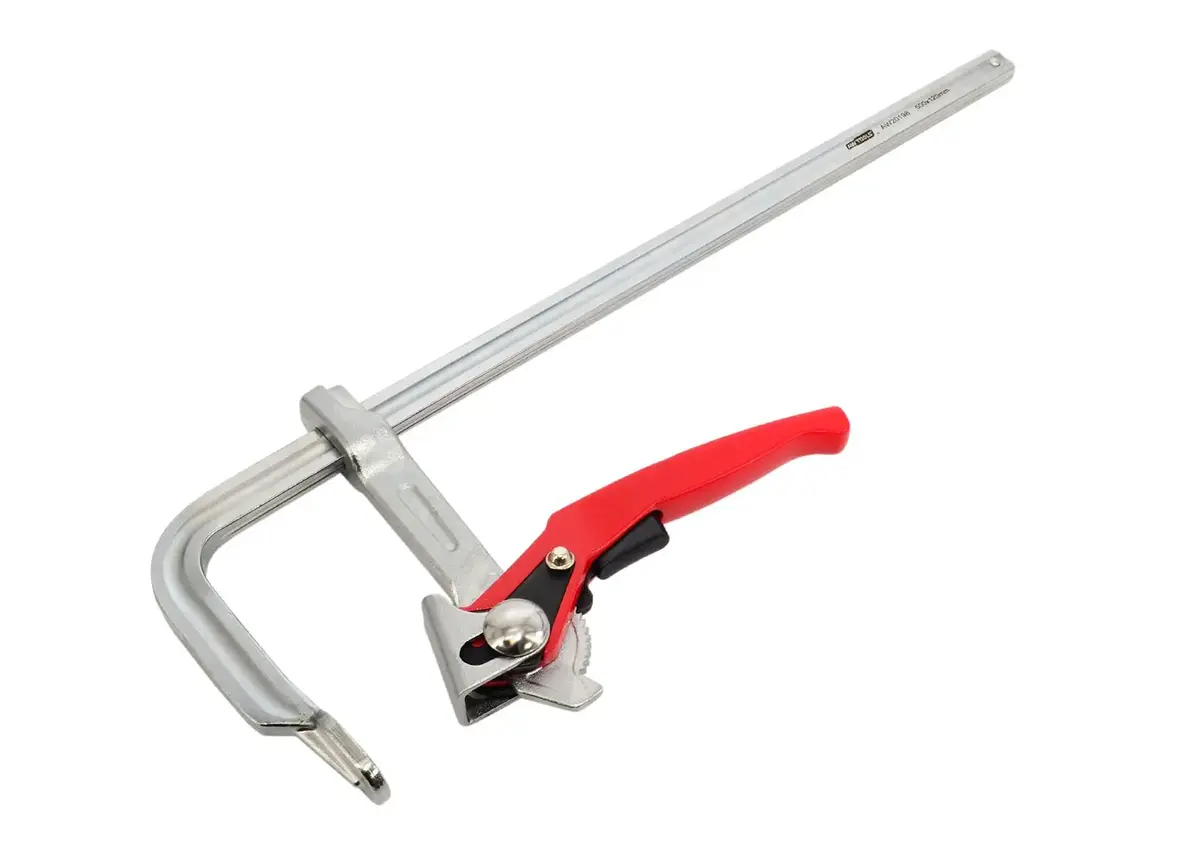

AWTools F-type Ratchet Bar Clamp 120x500mm

The AWTools F-type Ratchet Bar Clamp 120x500mm is a versatile and reliable tool designed for secure workpiece holding in various applications. Featuring a robust F-type design with a generous clamping capacity, this tool provides stability and precision when fixing materials in place. The integrated ratchet mechanism allows for fast and efficient adjustment, enabling users to apply firm pressure with minimal effort. Suitable for professional workshops, construction sites, and home garages, it helps streamline gluing, assembly, and fixing tasks by holding materials firmly in position.

Advantages

This F-type bar clamp offers exceptional convenience through its advanced ratchet mechanism, which significantly speeds up the clamping and releasing process compared to traditional screw-type models. The sturdy construction ensures long-lasting durability and consistent pressure distribution across the workpiece surface. Its ergonomic operation reduces hand fatigue during repetitive tasks, while the reliable locking system prevents slipping under load. The balance of strength and ease of adjustment makes it a practical addition to any toolkit.

Suitable for

• Woodworking and furniture making projects
• Gluing panels, boards, and joints securely
• Assembly tasks requiring stable workpiece positioning
• General DIY and home improvement projects

When it may not be suitable

This clamp is not designed for heavy-duty metal fabrication or structural steel welding, where specialized high-load C-clamps or magnetic positioners are required. It may also be less effective for clamping extremely small or irregularly shaped objects that fall outside the optimal jaw dimensions.

Key specifications

• Clamp type: F-type with ratchet mechanism
• Clamping depth: 120 mm
• Clamping length: 500 mm
• Application: Woodworking, gluing, assembly, and general holding tasks

How to use

To use the clamp, position the fixed jaw against one side of the workpiece and slide the movable jaw until it rests against the opposite side. Engage the ratchet mechanism by squeezing the handle repeatedly to advance the jaw and apply the desired amount of pressure. Ensure the clamping faces are parallel to the workpiece surface to distribute pressure evenly. To release the clamp, press the quick-release trigger or mechanism to slide the jaw back and remove the tool safely.

What to consider before purchase

• Verify that the 120 mm depth and 500 mm length dimensions match your specific project requirements
• Assess the maximum clamping force needed for your materials
• Consider whether a ratchet mechanism suits your workflow better than a standard threaded screw clamp

For optimal performance and longevity, keep the ratchet mechanism clean and free from debris or excess glue, and store the clamp in a dry environment when not in use.
