Interface Card Axagon ADSA-FP3

Name: Interface Card Axagon ADSA-FP3 ADSA-FP3
Brand: AXAGON
SKU: 3091116
Price: 19.49 EUR
Availability: InStock

Hot Deals at AiO.lv

Hurry and order now – up to 50% off!

Fast shipping

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Axagon ADSA-FP3 is a SATA interface card with a USB Type-A host interface, designed for PCs, notebooks, and tablets. It features a maximum data transfer rate of 5 Gbit/s and an output voltage of 12 V. Compact dimensions of 71 mm width, 46 mm depth, and 14.3 mm height make it easy to integrate into your setup. Ideal for connecting SATA devices efficiently.

Available at price 19.49 €: 9 pcs.

Total available for order: 54 pcs.

Warranty: 3 Years

SKU: 3091116

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

Friday {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.21 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa

Friday {{selectedOffer.parcelStationDeliveryString}}

From 1.79 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

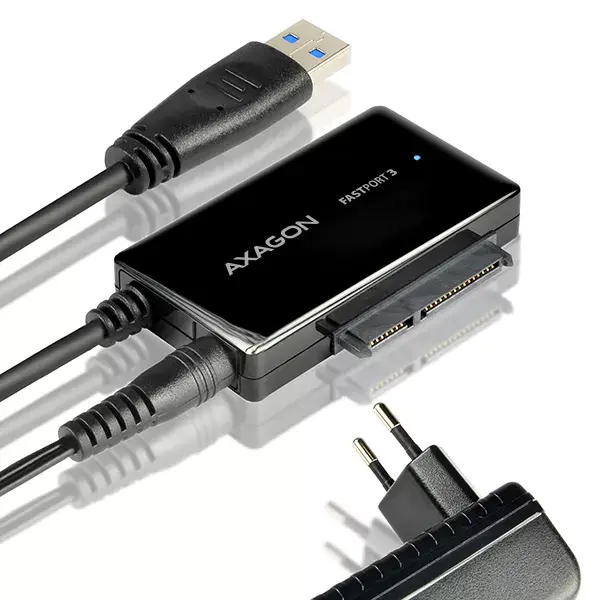

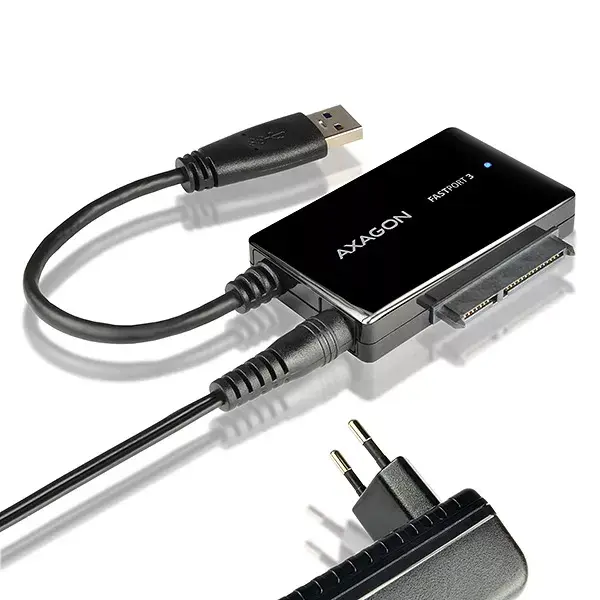

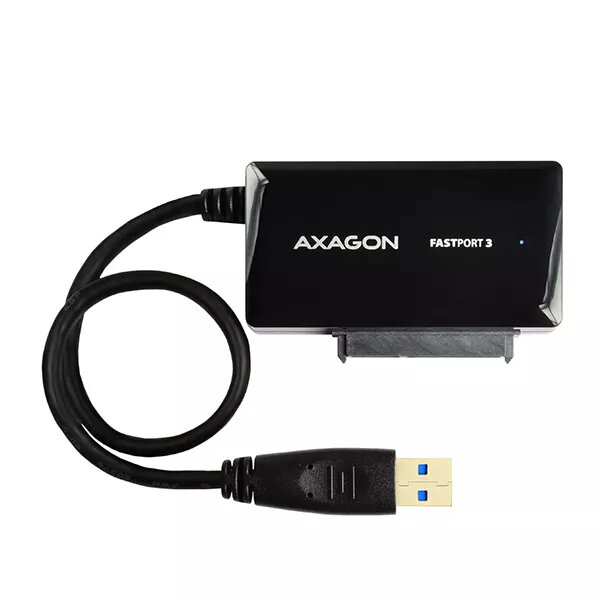

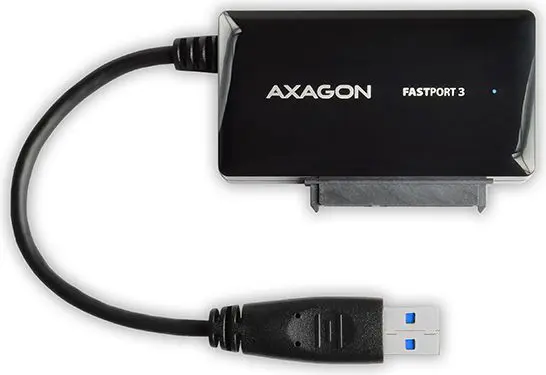

The AXAGON ADSA-FP3FASTport3 is a universal all-in-one USB 3.0 to SATA 6G adapter that enables easy connection of any SATA disk or optical drive. It supports 2.5" HDD/SSD, 3.5" hard disks and 5.25" optical CD, DVD or Blu-ray drives and is compatible with SATA, SATA II and SATA III interfaces, allowing use of modern SSD speeds and access to S.M.A.R.T. information for disk condition monitoring.

Advantages

The adapter provides USB 3.0 performance with backward compatibility to USB 2.0, plug-and-play installation and hot-plug support. It can boot from drives connected through the adapter, supports automatic HDD spindown and power-off functions, and supplies 2.5" drives directly from the USB bus while including an external 12V/2.2A power adapter for 3.5" drives and optical units. A blue LED indicates power and data activity.

Key specifications

Interfaces: USB 3.0 (Type A cable permanently attached, 22 cm) and SATA (SATA/600 compliant)
Supported SATA standards: SATA I/II/III (1.5/3/6 Gb/s)
USB transfer rates: theoretical up to 5 Gbit/s; supports 12/480/5000 Mb/s
Drive support: 2.5" HDD/SSD (bus-powered), 3.5" HDD and 5.25" optical drives (require external 12V/2.2A adapter)

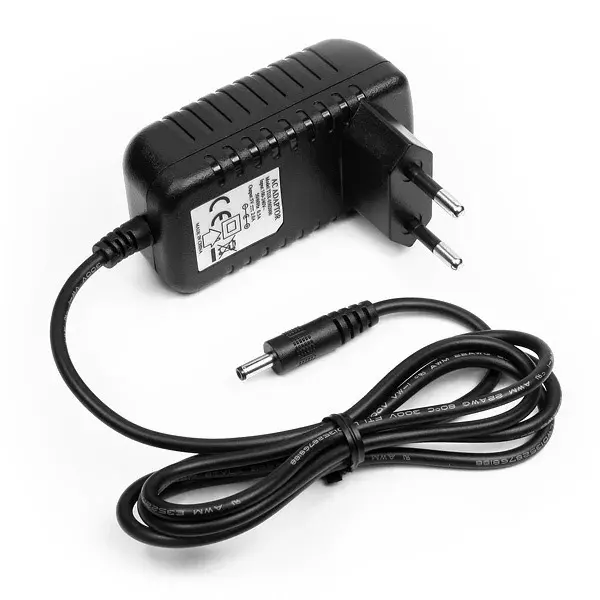

Power: up to 900 mA from one USB 3.0 port for 2.5" drives; external AC/DC adapter 100–240 V to 12 V, 2.2 A included for larger drives
Dimensions: 71 x 44.5 x 14.3 mm; weight: 38 g (including USB cable)
HDD features: S.M.A.R.T. readout, Auto Spindown after ~15 minutes, HDD Turn Off on removal or PC spin-down
LED: blue indicator for power (steady) and data transfer (blinking)
Compatibility: Windows XP and later (32/64-bit), Windows Server 2003/2008/2012/2016 and later, Mac OS X 10.x and higher, Linux kernel 2.6.x and above

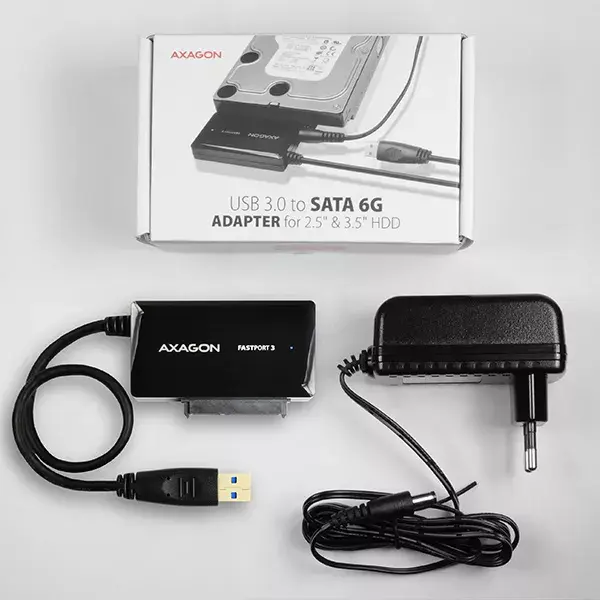

Package contents: USB 3.0–SATA adapter with 22 cm cable, external power adapter (100–240 V / 12 V–2.2 A), cardboard box with installation instructions

How to use

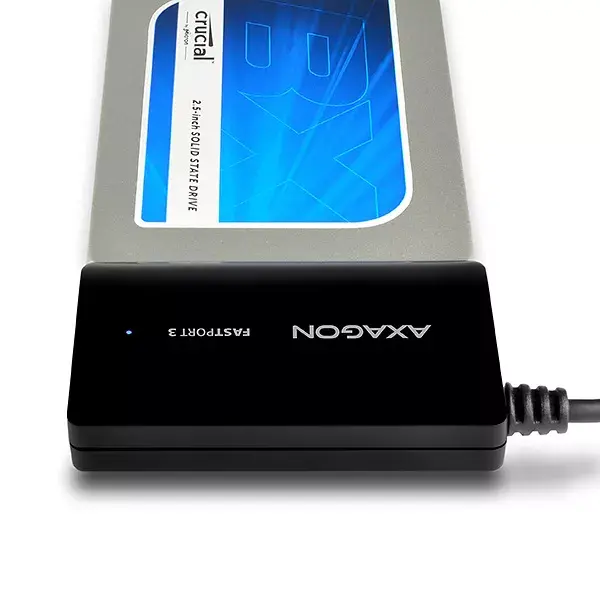

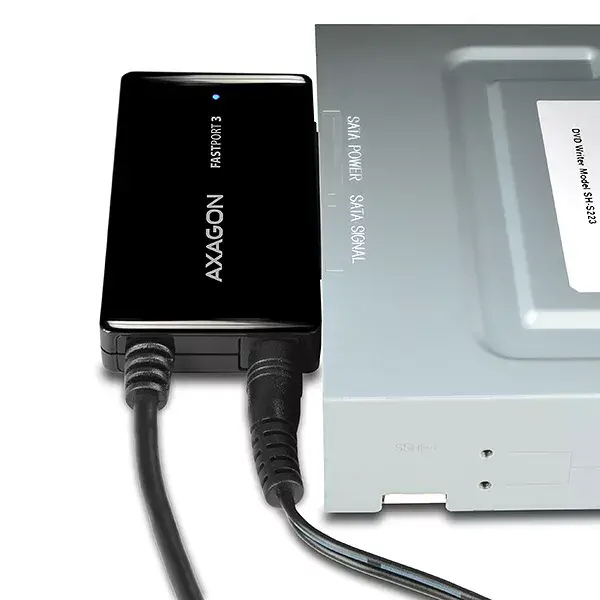

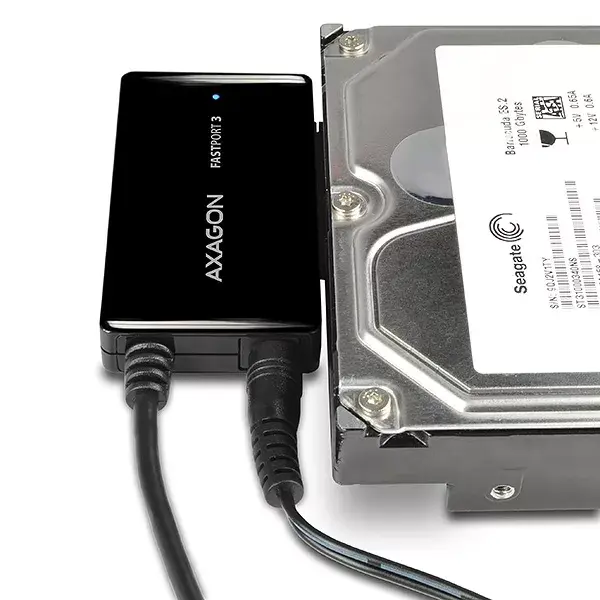

Connect the SATA disk or optical drive to the adapter's SATA connector, then plug the built-in USB 3.0 Type A cable into a computer USB port. For 2.5" HDD/SSD no external power is required; for 3.5" hard drives or 5.25" optical drives connect the supplied 12V/2.2A power adapter to the adapter. The device supports hot-plugging and is recognized automatically by supported operating systems; no additional drivers are necessary.

Recommendations

Use a USB 3.0 port on the host computer to achieve maximum transfer speeds and connect the external 12V power adapter when attaching 3.5" HDDs or optical drives to ensure stable operation.

Specifications

Internal: The product is built in.: No
Host interface: Interface that enables a host controller to communicate with a driver.: USB Type-A
Output interface: The socket (port) where the output connectors are connected.: SATA

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 212 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.039 kg
Height: The measurement of the product from head to foot or from base to top.: 14.3 mm
Depth: The distance from the front to the back of something.: 46 mm
Width: The measurement or extent of something from side to side.: 71 mm

System requirements

Compatible operating systems: List of desktop operating systems tested as compatible with this product.: MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.6.x and above
Server operating systems supported:: Yes
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.: Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Yes

Other features

Hot-Plug support: Device has hot-plug capability, which means that user can replace system components without shutting down the system.: Yes
Other operating systems supported:: Yes
Cable length: How long the cable is.: 0.22 m
Manual:: Yes

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China
Quantity per pack:: 1 pc(s)

Packaging data

Package type: The type of product package e.g. box.: Box
Package height: The distance from the top to the bottom of the packaging.: 62 mm
Package depth: The distance from the front to the back of the packaging.: 130 mm
Package width: The distance from one side of the packaging to the other.: 80 mm
Power supply included: There is a power supply with this product.: Yes

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS

Power

External power adapter:: Yes
Output voltage:: 12

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.: Yes
Data transfer rate (max):: 5 Gbit/s

Design

Easy to install:: Yes
Purpose: What the product is used for.: PC / Notebook / Tablet
Product colour: The colour e.g. red, blue, green, black, white.: Black
Internal: The product is built in.: No

Ports & interfaces

DC-in jack: The socket/plug where the DC electricity supply connects to the device.: Yes
Internal SATA ports quantity:: 1
NVMe: NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.: No
Host interface gender:: Male
Host interface: Interface that enables a host controller to communicate with a driver.: USB Type-A
Output interface: The socket (port) where the output connectors are connected.: SATA

Performance

Certification:: CE, FCC
LED indicators:: Yes
S.M.A.R.T. support:: Yes
Data transfer rate: Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.: 5 Gbit/s
