Short description

The Axagon PCEM2-D is an internal M.2 SATA interface card designed for PCs. It features a PCIe host interface and supports data transfer rates up to 8 Gbit/s. The card is compatible with various Windows operating systems including Windows 10, 8.1, 8, 7, and Server versions. Its dimensions are 142 mm x 64 mm x 12 mm, and it comes in a sleek black and gold design, suitable for both full-height and low-profile installations.

Available at price 11.99 €: 1 pcs.

Total available for order: 73 pcs.

Warranty: 2 Years

SKU: 2115690

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Tuesday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

Friday {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.13 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

Friday {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

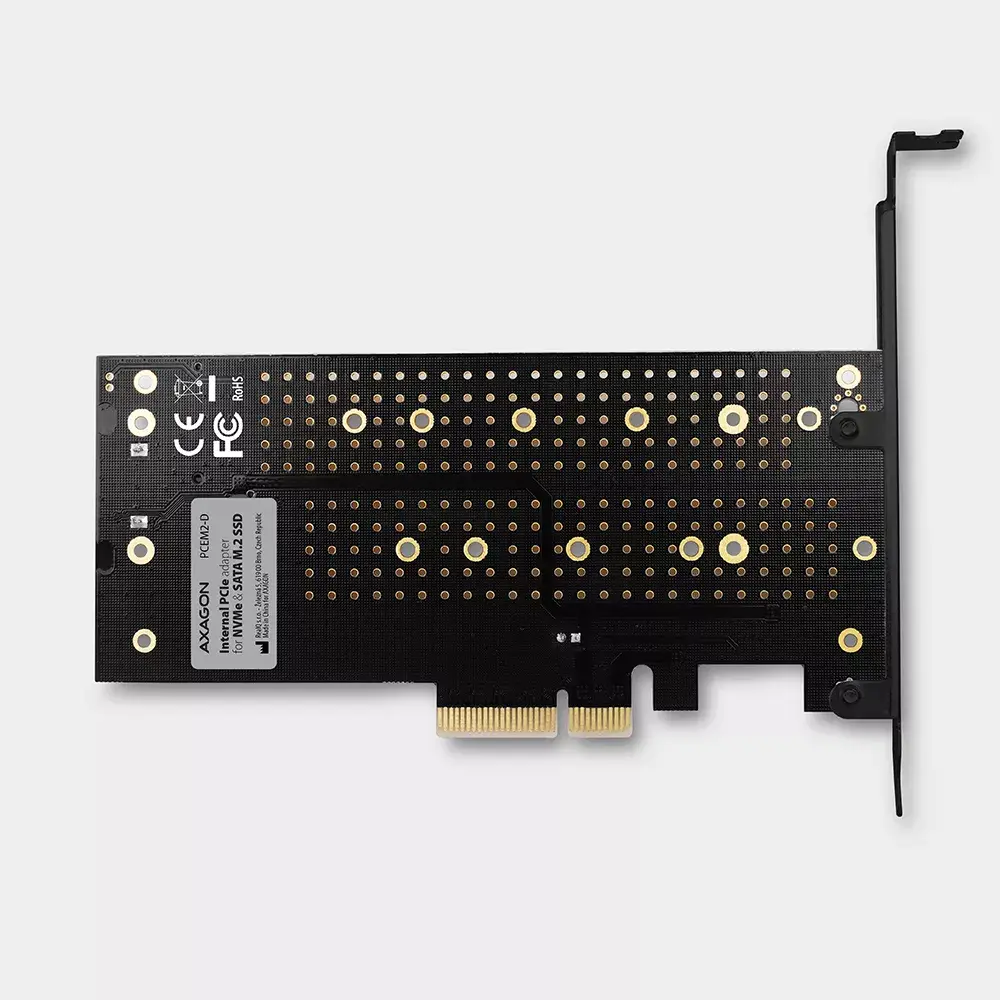

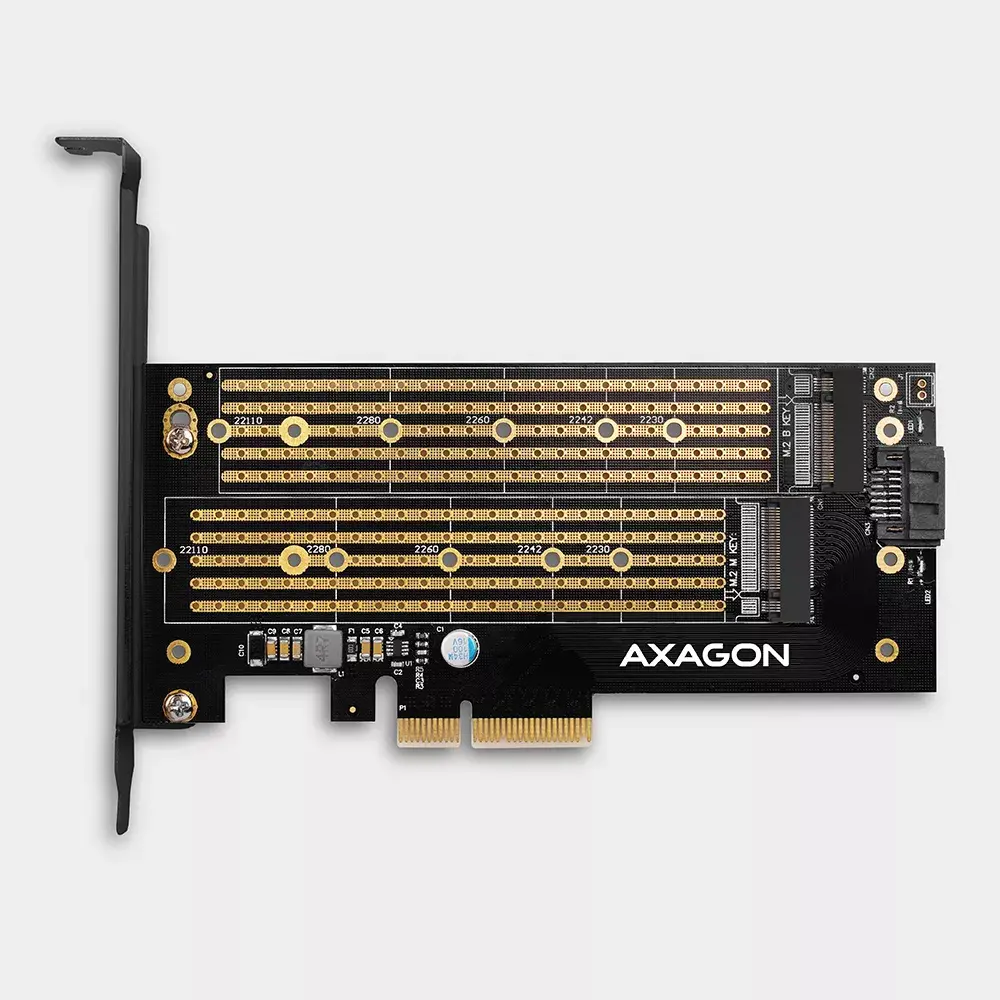

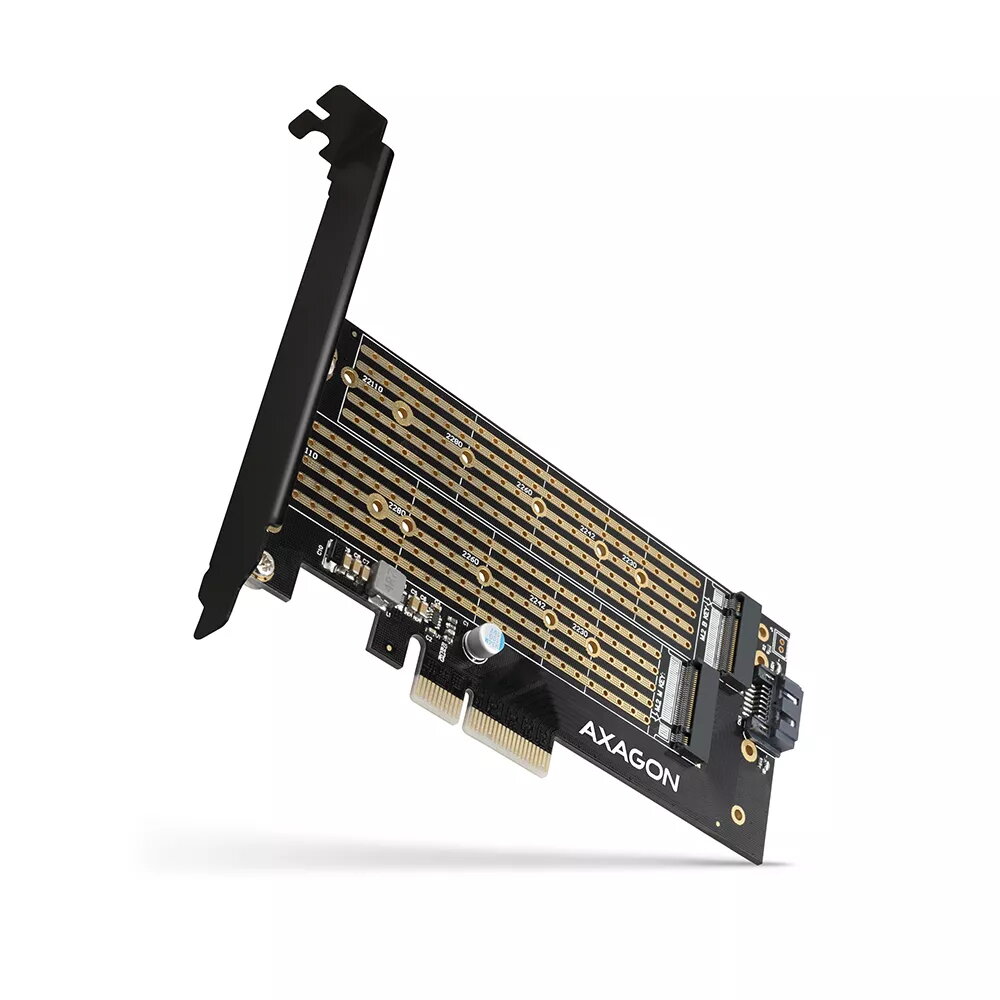

The Axagon PCEM2-D internal adapter enables connecting up to two M.2 SSDs to a desktop computer via a PCI‑Express slot. It supports both single‑ and double‑sided M.2 modules in SATA (AHCI) and NVMe (PCI‑Express) interfaces, with card lengths up to 110 mm (supports 2230, 2242, 2260, 2280, 22110). The adapter is powered directly from the PCI‑Express bus and includes full plug-and-play support and boot capability from connected SSDs.

Advantages

The card uses a PCI‑Express 3.0 x4 interface compatible with x4/x8/x16 slots, providing a two‑way bandwidth up to 8 GB/s for NVMe drives. Copper‑plated vents improve heat dissipation from installed M.2 SSDs. Two blue LEDs indicate power and data transfer, and the package includes both standard and low‑profile blanking plugs for installation in different case types. No additional drivers are required.

Suitable for

Upgrading desktop PCs that lack native M.2 slots
Installing two M.2 SSDs (mixed SATA and NVMe) for additional storage or caching
Systems that require booting from an M.2 SSD
Low‑profile or full‑height PC cases (low profile bracket included)

Key specifications

Host interface: PCI‑Express 3.0, 4‑lane (compatible with PCIe 1.x/2.x/3.x slots)
Max bandwidth: up to 8 GB/s (two‑way) on PCIe 3.0 x4
M.2 slots: one M‑key (NVMe/PCI‑Express) and one B‑key (SATA/AHCI); B+M‑key cards are physically supported
Supported M.2 sizes: 2230, 2242, 2260, 2280, 22110
Supports both one‑sided and double‑sided M.2 modules and any capacity
Power: powered from PCI‑Express bus, no external power required; dual/redundant supply design
LED status indicators: two blue LEDs for power/data
Compatibility: Windows 7/8/8.1/10, Windows Server 2008 R2/2012/2016, Linux kernel 2.6.31+

How to use

Insert the Axagon PCEM2-D into a free PCIe x4/x8/x16 slot on the motherboard. Install M.2 SSDs into the appropriate slots: plug SATA (AHCI) M.2 drives into the B‑key slot and NVMe (PCI‑Express) drives into the M‑key slot. Secure the drives and select the correct mounting bracket (standard or low profile) for your PC case. On supported operating systems the adapter is plug-and-play; for best SATA performance connect a SATA 6G controller if applicable. Verify drive type and slot before powering on to avoid incorrect connections.

Usage recommendations

Check whether each M.2 module is SATA or NVMe before installation and place it in the corresponding slot (B‑key for SATA, M‑key for NVMe). When using Windows 7 with NVMe drives, confirm NVMe support with the SSD manufacturer. Ensure good airflow around the card to aid heat dissipation.

Specifications

Host interface:: PCIe
Weight:: 0.046 kg
Internal:: Yes
Output interface:: SATA, M.2
Product colour:: Gold, Black

All features

Technical details

Compliance certificates:: RoHS

Ports & interfaces

Host interface:: PCIe
Output interface:: SATA, M.2
Number of M.2 (M) slots:: 1
NVMe:: Yes
Number of M.2 (B) slots:: 1
Expansion card standard:: PCIe 4.0
Expansion card form factor:: Full-height / Low-profile

Other features

Manual:: Yes

Weight & dimensions

Weight:: 0.046 kg
Package weight:: 128 g
Height:: 12 mm
Width:: 142 mm
Depth:: 64 mm

System requirements

Windows operating systems supported:: Windows 8.1, Windows 8, Windows 7, Windows 10
Mac operating systems supported:: Y
Linux operating systems supported:: Y
Server operating systems supported:: Windows Server 2016, Windows Server 2012, Windows Server 2008 R2

Design

Internal:: Yes
Product colour:: Gold, Black
Purpose:: PC
Easy to install:: Yes

Performance

Certification:: CE
LED indicators:: Y

Logistics data

Country of origin:: China
Quantity per pack:: 1 pc(s)

Packaging data

Package depth:: 130 mm
Package height:: 30 mm
Package width:: 175 mm
Package type:: Box

Features

Plug and Play:: Yes
TRIM support:: Yes
Data transfer rate (max):: 8 Gbit/s
