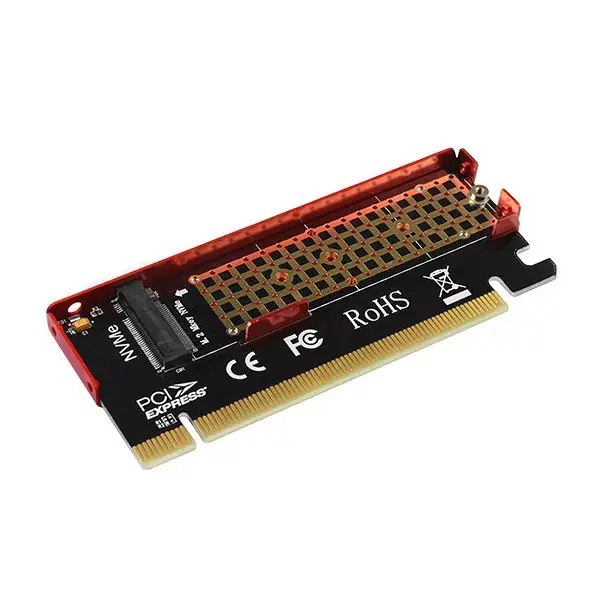

Internal M.2 Adapter Axagon PCEM2-S Photo 2

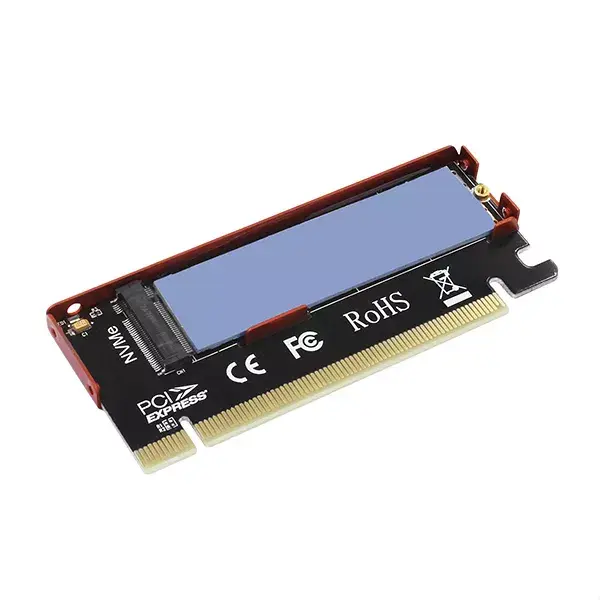

Internal M.2 Adapter Axagon PCEM2-S Photo 3

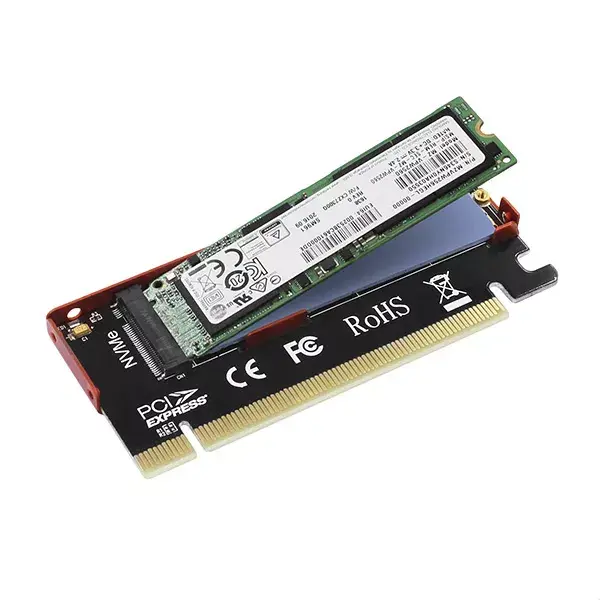

Internal M.2 Adapter Axagon PCEM2-S Photo 4

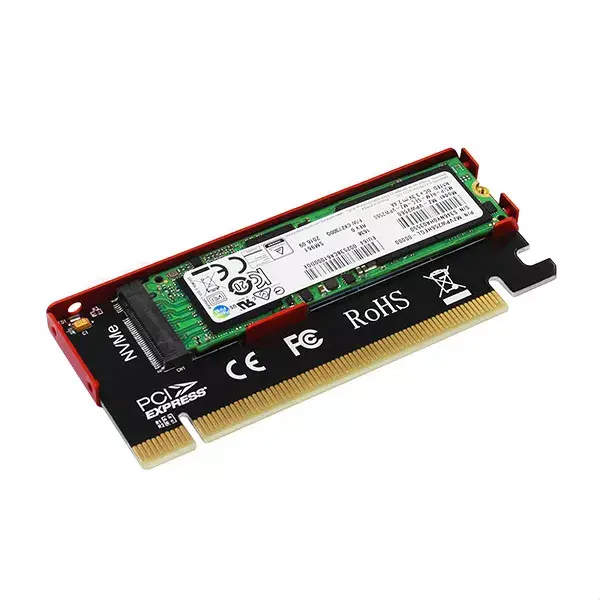

Internal M.2 Adapter Axagon PCEM2-S Photo 5

Internal M.2 Adapter Axagon PCEM2-S Photo 6

Internal M.2 Adapter Axagon PCEM2-S Photo 7

Internal M.2 Adapter Axagon PCEM2-S Photo 8

Internal M.2 Adapter Axagon PCEM2-S Photo 9

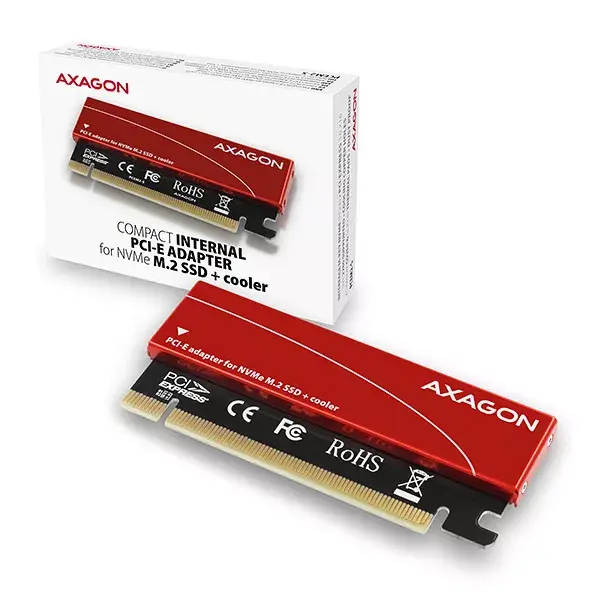

Internal M.2 Adapter Axagon PCEM2-S Photo 10

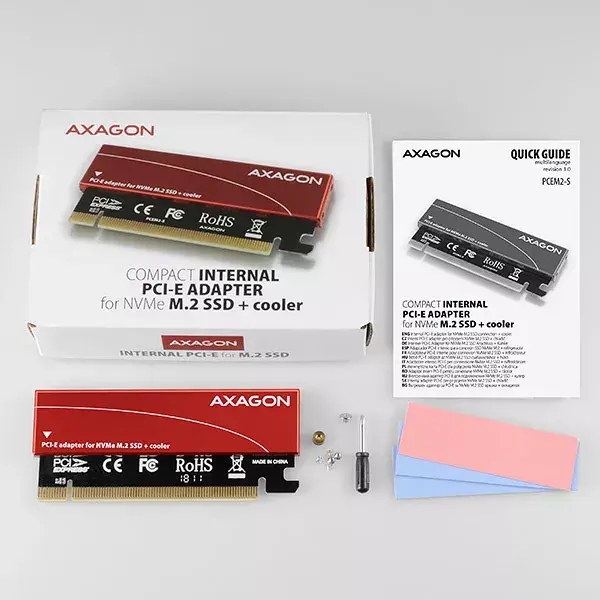

Internal M.2 Adapter Axagon PCEM2-S Photo 11

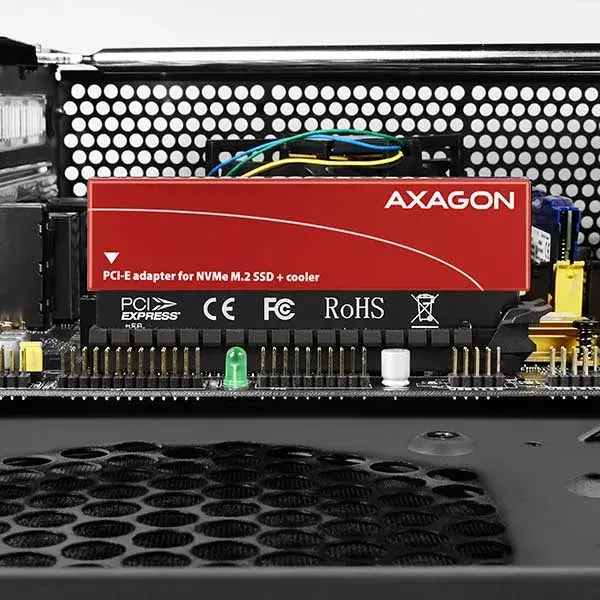

Internal M.2 Adapter Axagon PCEM2-S Photo 12

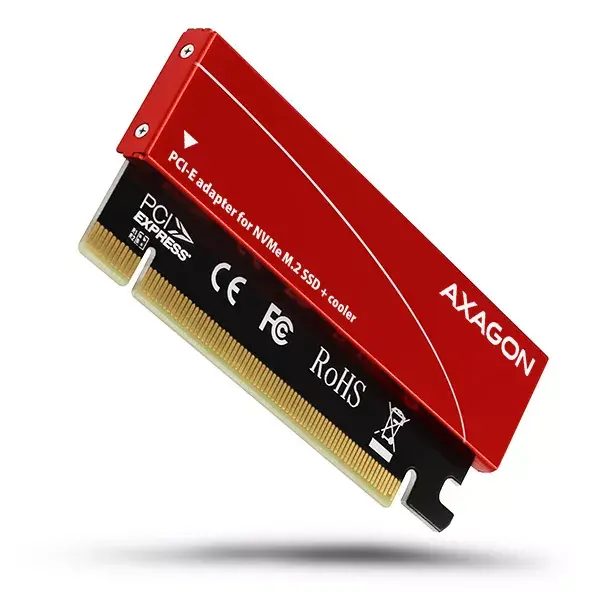

Internal M.2 Adapter Axagon PCEM2-S Photo 13

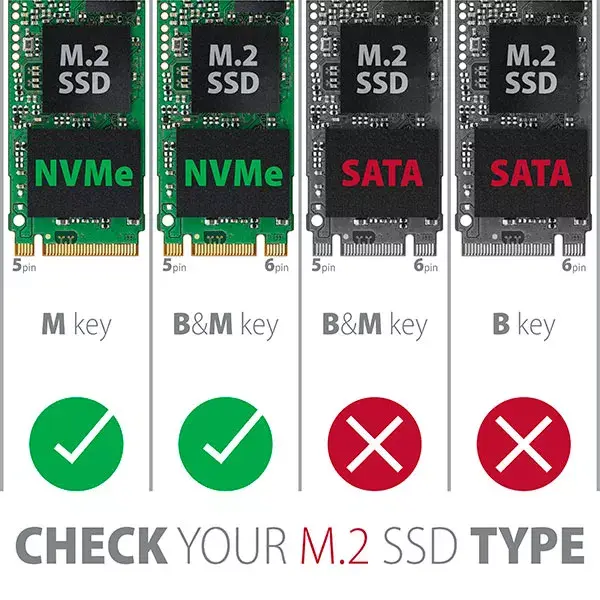

Internal M.2 Adapter Axagon PCEM2-S Photo 14

Internal M.2 Adapter Axagon PCEM2-S Photo 15

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Axagon PCEM2-S is a low-profile internal M.2 adapter that connects via PCIe, supporting a bandwidth of 8 Gbit/s. It features passive cooling and is compatible with Windows 10, 7, 8, 8.1, and Server 2012, 2016. Compact dimensions of 102 mm x 43 mm x 8 mm make it ideal for space-constrained builds.

Available at price 13.99 €: 12 pcs.

Total available for order: 256 pcs.

Warranty: 3 Years

SKU: 3091133

Learn more

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Friday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

30.09.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.07 kg)

Parcel couriers

Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa

30.09.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Axagon PCEM2-S internal adapter lets you install an M.2 NVMe (PCI‑Express) SSD into a desktop PC via a PCI‑Express slot. It is a compact, low‑profile card with passive aluminum cooling, designed for systems that lack a native M.2 slot and supporting single‑ and double‑sided M.2 SSDs up to size 22x80 mm (2280).

Advantages

The adapter supports PCI‑Express 3.0 x4 bandwidth (up to 8 GB/s two‑way), plug‑and‑play operation and booting from the installed NVMe drive without additional drivers. Its aluminum cover, plated vents and supplied thermally conductive pads improve heat dissipation for stable SSD performance. No external power supply is required — the card is powered directly from the PCIe slot.

Suitable for

Upgrading a desktop PC that has no M.2 slot
Adding high‑speed NVMe storage to older motherboards with PCIe slots
Compact or low‑profile builds where space is limited

Key specifications

Host interface: PCI‑Express 3.0 (backward compatible with PCIe 1.0a/1.1/2.0/2.1), 4 lanes (x4)
Maximum bandwidth: up to 8 GB/s (two‑way) on PCIe 3.0 x4
Output: NGFF 75‑pin M‑key slot for NVMe (PCI‑Express) M.2 SSDs
Supported M.2 sizes: 2230 / 2242 / 2260 / 2280 (single‑ and double‑sided)
Supported keys: M‑key and B+M‑key NVMe drives (no capacity limit)
Cooling: aluminum cover, plated vents and 3 thermally conductive pads
Dimensions: 102 x 43 x 8 mm; Weight: 43 g
Power: powered from PCIe slot; no external power needed
Operating systems: Windows 7/8/8.1/10, Windows Server 2012/2016, Linux kernel 2.6.31+

How to use

Install the Axagon PCEM2-S into an available PCIe x16 slot (the adapter uses four PCIe lanes) on the motherboard. Mount an M.2 NVMe SSD (size up to 2280) into the M‑key slot, secure it with the supplied mounting hardware and attach the aluminum cover with the thermal pads for improved cooling. After installation the system should detect the drive automatically; no driver installation is required for supported operating systems. For Windows 7, verify M.2 SSD compatibility with the SSD manufacturer.

Usage recommendations

Use the included thermally conductive pads and ensure good airflow inside the case to maximize heat dissipation. Confirm that the chosen PCIe slot provides at least x4 lanes for optimal NVMe performance. When using older operating systems such as Windows 7, check SSD vendor support before deployment.

Specifications

Internal: The product is built in.: Yes
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: M.2

All features

Weight & dimensions

Package weight: Weight of the packaged product.: 68 g
Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 0.043 kg
Height: The measurement of the product from head to foot or from base to top.: 8 mm
Depth: The distance from the front to the back of something.: 43 mm
Width: The measurement or extent of something from side to side.: 102 mm

System requirements

Server operating systems supported:: Windows Server 2016, Windows Server 2012
Linux operating systems supported: 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3): Yes
Mac operating systems supported: Mac operating systems e.g. OS X can be used with the device.: Yes
Windows operating systems supported: Windows vesions wich can be used with the device.: Windows 10, Windows 7, Windows 8, Windows 8.1

Other features

Manual:: Yes

Logistics data

Country of origin: Country where the device is made. Aka Country of manufacture (COM).: China
Quantity per pack:: 1 pc(s)

Packaging data

Package type: The type of product package e.g. box.: Box
Package height: The distance from the top to the bottom of the packaging.: 20 mm
Package depth: The distance from the front to the back of the packaging.: 65 mm
Package width: The distance from one side of the packaging to the other.: 140 mm

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS

Features

Plug and Play: Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.: Yes
TRIM support:: Yes
Bandwidth:: 8 Gbit/s

Design

Cooling type: The method used to cool the device or to cool the air around the device.: Passive
Purpose: What the product is used for.: PC
Product colour: The colour e.g. red, blue, green, black, white.: Red, Black
Internal: The product is built in.: Yes

Ports & interfaces

Number of M.2 (M) slots:: 1
NVMe: NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.: Yes
Expansion card standard:: PCIe 4.0
Expansion card form factor:: Low-profile
Host interface: Interface that enables a host controller to communicate with a driver.: PCIe
Output interface: The socket (port) where the output connectors are connected.: M.2

Performance

Certification:: CE, FCC
LED indicators:: Y
