Axagon RSS-CD09 2.5 SSD/HDD Caddy

Name: Axagon RSS-CD09 2.5 SSD/HDD Caddy RSS-CD09
Brand: AXAGON
SKU: 4817472
Price: 12.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Axagon RSS-CD09 2.5 SSD/HDD Caddy DVD Slot 9.5mm SATA Black

Fast shipping

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 1

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 2

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 3

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 4

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 5

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 6

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 7

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 8

Axagon RSS-CD09 2.5 SSD/HDD Caddy Photo 9

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

The Axagon RSS-CD09 is a 2.5 SSD/HDD caddy designed to fit into a 9.5mm DVD slot. It features a SATA host interface and supports data transfer rates up to 5 Gbit/s. This product is ideal for upgrading laptops by adding additional storage. Its compact dimensions of 128mm x 127mm x 9.5mm make it a perfect fit for most devices.

Available at price 12.99 €: 4 pcs.

Total available for order: 45 pcs.

Warranty: 2 Years

SKU: 4817472

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

Tuesday {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

Tuesday {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

Friday {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.12 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

Friday {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

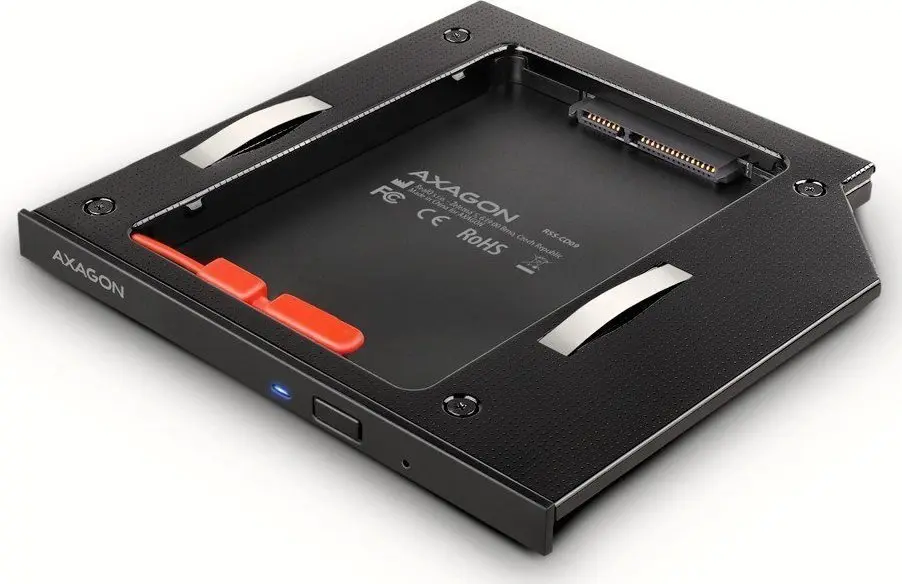

The Axagon RSS-CD09 internal frame replaces a 9.5 mm laptop optical drive and allows installation of a 2.5" SATA SSD or HDD. It provides a Slim 13-pin (7+6) SATA host connector to the notebook and a standard 22-pin (7+15) SATA interface for the 2.5" drive. The aluminum body houses a screwless mounting system with rubber plugs and springs, an integrated capacitor for power stabilization and an LED that indicates disk insertion and data transfer. The adapter supports 2.5" drives up to 9.5 mm high and behaves as a normal internal disk in BIOS/UEFI and operating systems.

Advantages

The RSS-CD09 offers a pure hardware adapter without complex electronics, preserving SSD performance and TRIM support while providing compatibility with SATA 6G/3G/1.5G interfaces. Its screwless mounting with rubber inserts reduces vibration, metal springs secure the unit in the optical bay, and the aluminum frame provides mechanical protection and heat dissipation. The included front panel and mounting holes simplify installation in many notebook models.

Suitable for

Replacing a 9.5 mm laptop optical drive with a 2.5" SSD or HDD
Adding an extra internal storage drive to notebooks
Upgrading older laptops by installing an SSD for faster boot and system responsiveness
Systems requiring a slim SATA 6G/3G/1.5G compatible internal adapter

Key specifications

Model: Axagon RSS-CD09
Fits optical bay height: 9.5 mm
Supports 2.5" SSD/HDD, maximum height 9.5 mm (also supports 7 mm SSDs)
Input connector: 13-pin (7+6) Slim SATA data + power (for notebook)
Output connector: 22-pin (7+15) SATA data + power (for 2.5" disk)
SATA compatibility: SATA III (6 Gb/s), SATA II (3 Gb/s), SATA I (1.5 Gb/s)
Adapter dimensions: 128 x 127 x 9.5 mm
Weight: 66 g (without faceplate)
Body material: aluminum

How to use

Remove the laptop's existing 9.5 mm optical drive, insert the 2.5" SSD or HDD into the RSS-CD09 frame and secure it using the rubber spacer or rubber plug mounting system. Attach the supplied faceplate if desired, slide the adapter into the optical bay and secure it using the notebook's mounting holes or the metal springs. The adapter uses the notebook's Slim SATA 13-pin connector for power and data; no drivers are required. The installed drive is recognized by BIOS/UEFI and operating systems and can be used for storage or as a boot drive if supported by the notebook.

Usage recommendations

Before installation, confirm the height of the original optical drive is 9.5 mm. Use a 7 mm or 9.5 mm 2.5" drive compatible with your notebook. Ensure the notebook's Slim SATA connector matches the 13-pin (7+6) Slim SATA interface and verify BIOS settings if you plan to boot from the installed SSD. Handle the drive carefully and use the supplied rubber plugs to minimize vibration.

Specifications

Weight:: 0.066 kg
Product colour:: Black

All features

Internal:: Yes
Hot-Plug support:: Yes
Purpose:: Laptop
Easy to install:: Yes
Server operating systems supported:: Y
Other operating systems supported:: Y
Output interface:: SATA
Internal SATA ports quantity:: 1
Mounting brackets included:: Yes
Data transfer rate (max):: 5 Gbit/s

Storage

NVMe:: No

Technical details

Compliance certificates:: RoHS

Design

Product colour:: Black
LED indicators:: Y
Certification:: CE

Weight & dimensions

Weight:: 0.066 kg
Package weight:: 127 g
Height:: 9.5 mm
Width:: 128 mm
Depth:: 127 mm
Package depth:: 150 mm
Package height:: 20 mm
Package width:: 150 mm

Performance

Plug and Play:: Yes
Country of origin:: China

System requirements

Windows operating systems supported:: Y
Mac operating systems supported:: Y
Linux operating systems supported:: Y

Packaging content

Manual:: Yes
Package type:: Box

Other features

Host interface:: SATA

Logistics data

Quantity per pack:: 1 pc(s)

Hide Show all
