Midspan Axis TU8004 90W Wired Black 1 Output

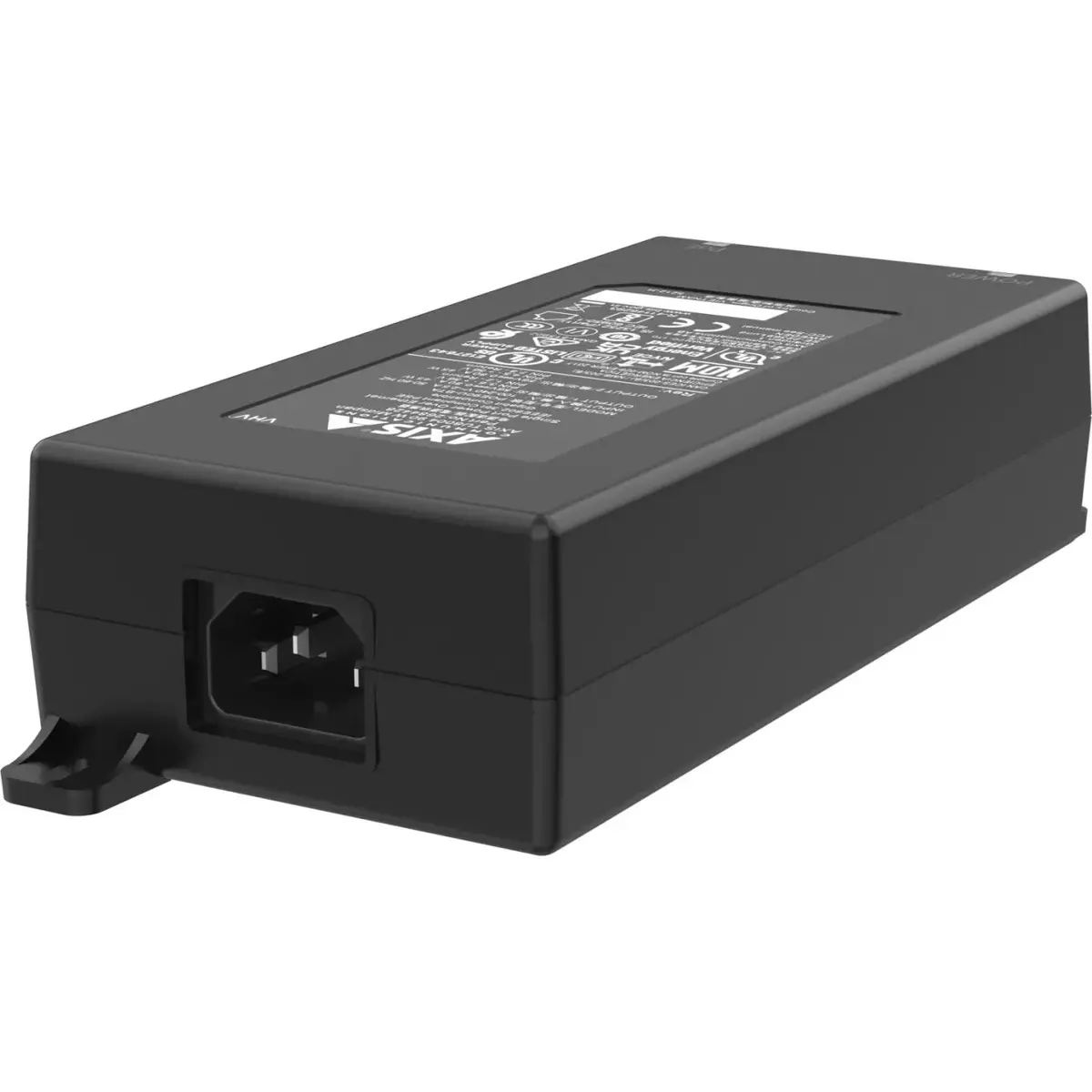

AXIS TU8004 90 W Midspan is a single-port PoE midspan that provides up to 90 W over one output port, compliant with IEEE 802.3bt. It injects both power and data into a single Ethernet cable so devices with built-in PoE support can be powered without replacing existing switches or cabling. The unit accepts 100–240 V at 50/60 Hz and has compact dimensions (80 × 166 × 44 mm). AXIS TU6011 mains cable is sold separately. The midspan can be mounted on a wall, shelf or on a DIN rail using the AXIS T91A03 DIN Rail Clip A.

Advantages

AXIS TU8004 supports High PoE (IEEE 802.3bt) delivering up to 90 W from a single output, which enables powering of high-consumption devices while keeping network and power delivery over one Ethernet cable. The device is compatible with common AC mains voltages (100–240 V, 50/60 Hz) and has a compact form factor for flexible placement. Installation options include wall, shelf or DIN-rail mounting; the mains cable is available separately to allow customized setup.

Suitable for

• Powering high-power PoE devices such as PTZ cameras or network devices that require up to 90 W
• Upgrading existing Ethernet networks to provide PoE without replacing switches
• Installations requiring compact midspan units for wall, shelf or DIN-rail mounting

Key specifications

• Model: AXIS TU8004
• Power output: 90 W (single port)
• PoE standard: IEEE 802.3bt (High PoE)
• Inputs/outputs: 1 input, 1 output
• AC input: 100–240 V, 50/60 Hz
• Dimensions: 80 × 166 × 44 mm
• Weight: (not specified)
• MPN: 02783-001
• EAN: 7331021085367

How to use

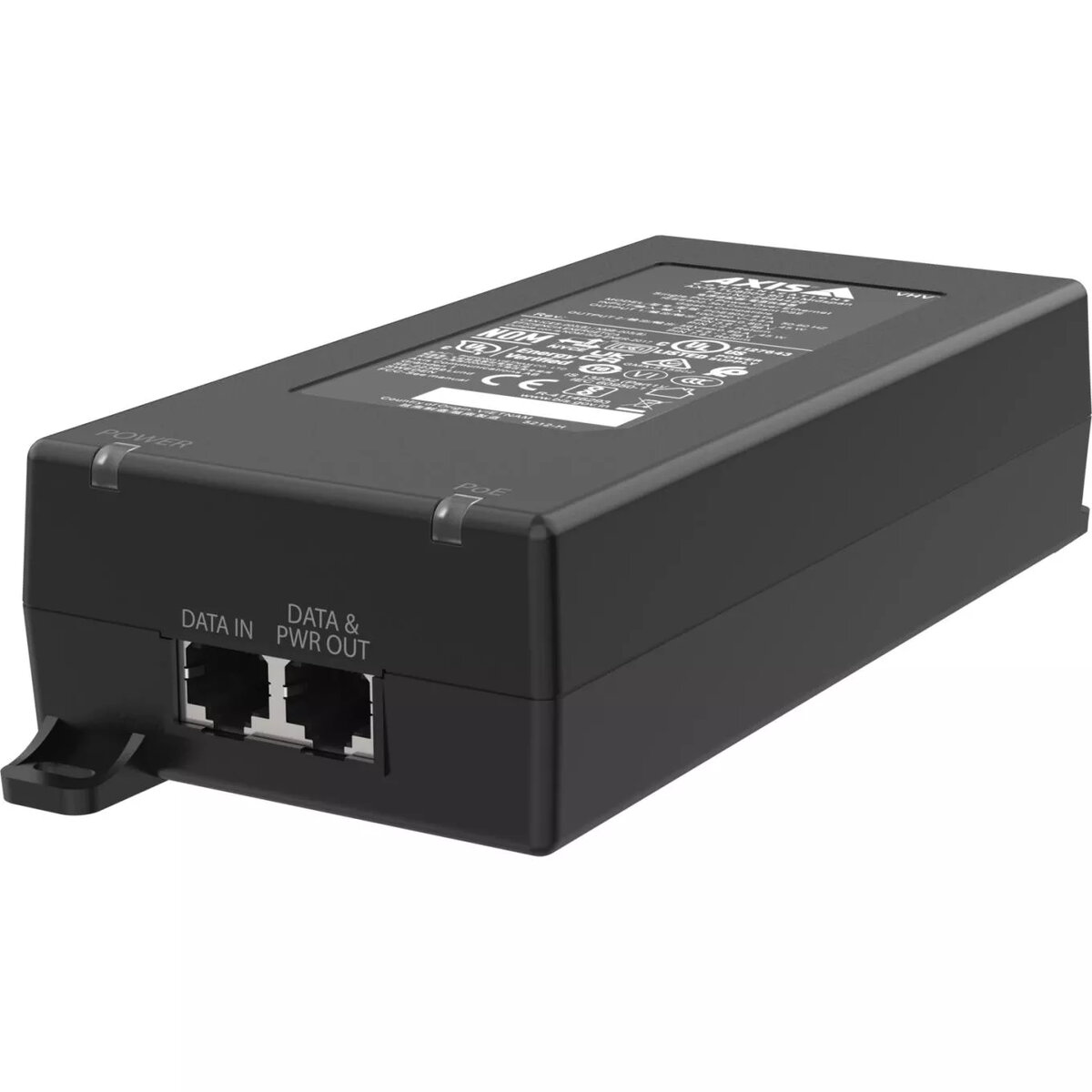

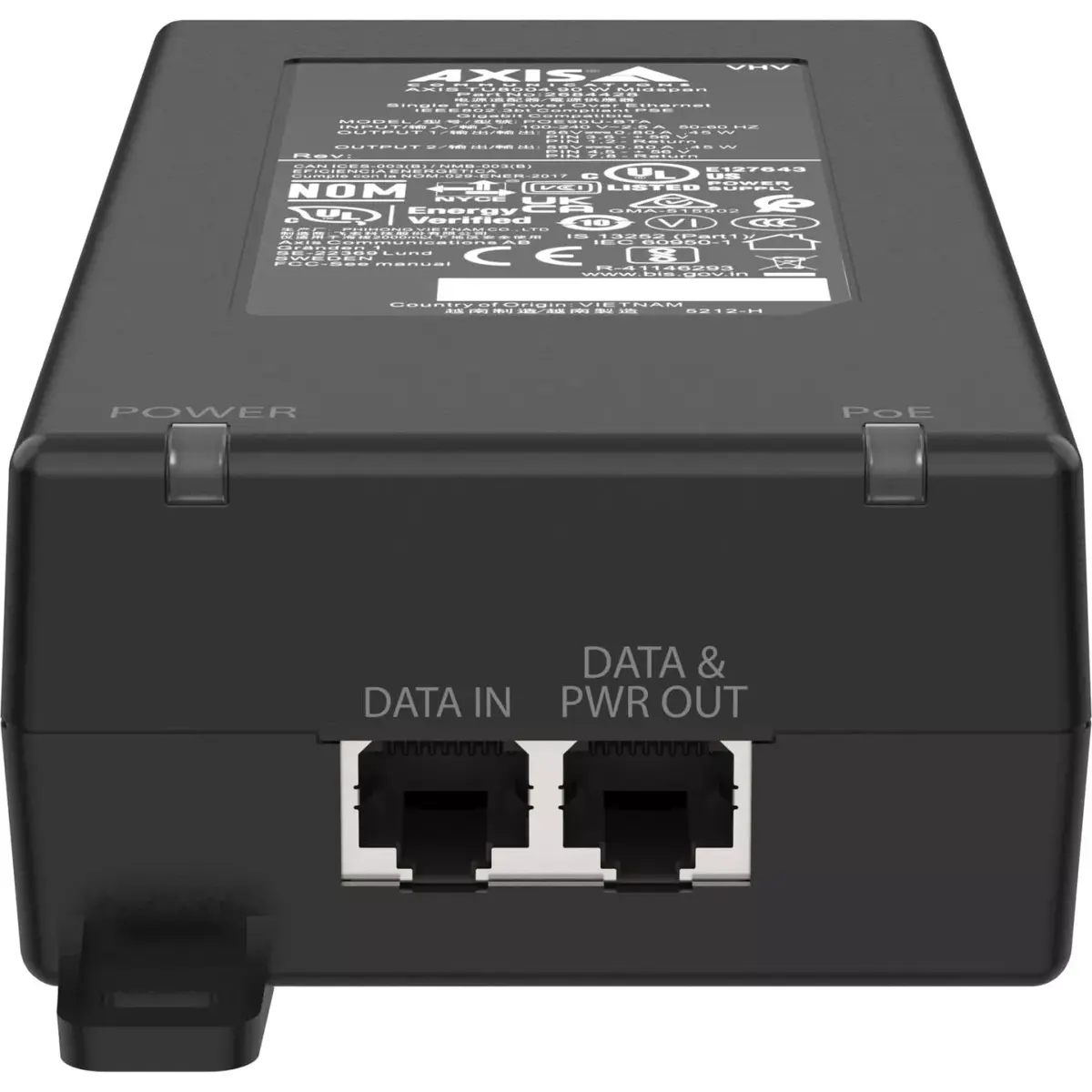

Connect the AXIS TU8004 midspan to AC mains using a compatible mains cable (AXIS TU6011 sold separately). Link the midspan input to your network switch and connect the output to the PoE-capable device using a standard Ethernet cable. Ensure the connected device supports PoE and that the total required power does not exceed the 90 W output. Mount the unit on a wall or shelf or secure it to a DIN rail using AXIS T91A03 DIN Rail Clip A if required.

Usage recommendations

Use shielded or unshielded Cat5e or higher Ethernet cable for both data and power transmission, verify device PoE compatibility with IEEE 802.3bt, and select the AXIS TU6011 mains cable or equivalent approved cable for your region. Ensure adequate ventilation around the midspan and follow local electrical installation regulations during mounting and connection.
