B-TECH AV BT8228/B Heavy Duty Twin Cantilever Wall Mount for Flat Screens up to 120 inches, VESA 800x600

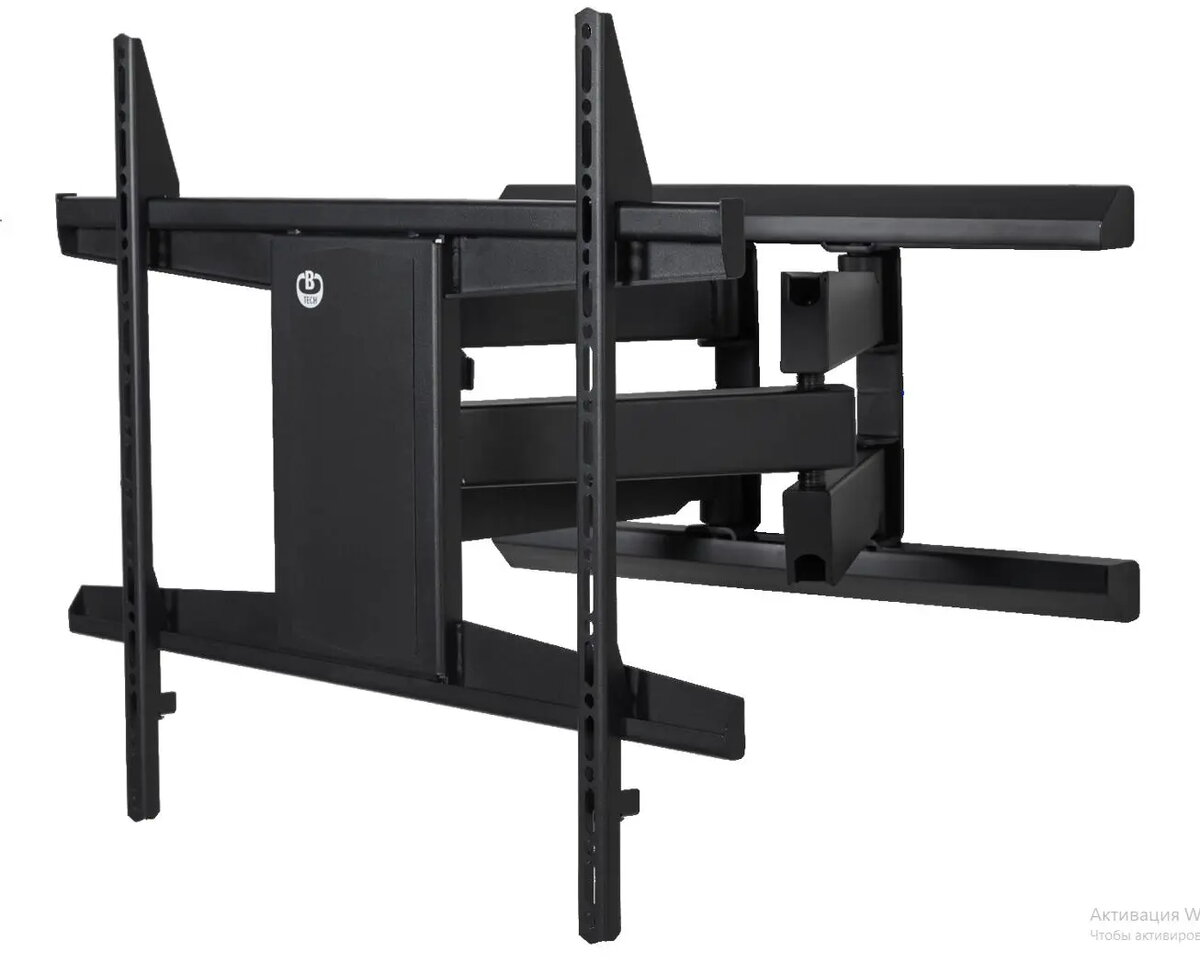

The B-TECH AV BT8228/B is a robust, heavy-duty twin cantilever wall mount engineered to support large flat screens ranging from 65 to 120 inches. Designed for stability and versatility, this mount can safely hold displays weighing up to 125 kg. Its dual-arm construction provides exceptional strength, while the adjustable design allows for a wall distance ranging from 9 cm to 62.8 cm, making it an ideal solution for professional, commercial, or high-end home cinema installations.

Advantages

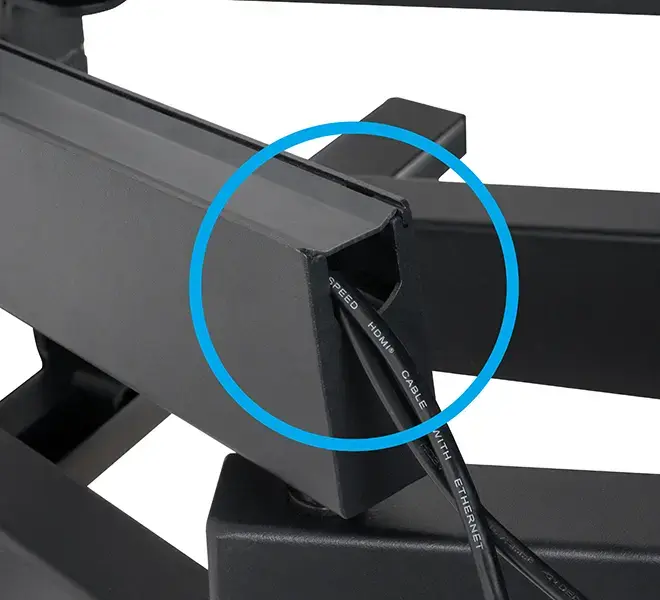

This mount offers significant flexibility through its three swivel points and tool-less tilt adjustment, allowing users to achieve the perfect viewing angle with minimal effort. The slim-line design ensures that when the screen is folded flat against the wall, it maintains a clean and unobtrusive profile. Furthermore, the inclusion of integrated cable management and decorative cover plates ensures that all wiring and mounting hardware remain hidden, providing a professional and tidy aesthetic. The installation process is streamlined by a simple hook-on system, a drilling template, and safety screws that prevent unauthorized removal of the screen.

Suitable for

• Large-scale commercial digital signage
• Professional conference room display setups
• High-end home theater systems with extra-large screens
• Retail environments requiring flexible viewing angles

This mount may not be suitable for screens smaller than 65 inches, as the arm structure and VESA plate are specifically optimized for larger displays. Additionally, it is not intended for mounting on walls that cannot support the combined weight of the bracket and a 125 kg display, such as thin partition walls without proper reinforcement.

Key specifications

• Maximum weight capacity: 125 kg
• Supported screen sizes: 65 to 120 inches
• VESA compatibility: 300 x 200 mm to 800 x 600 mm
• Tilt range: -3° to 15°
• Wall distance: 9 cm to 62.8 cm
• Orientation: Landscape and portrait
• Integrated cable management
• Color: Black

To install the mount, first use the provided drilling template to mark and drill the necessary holes in a structurally sound wall. Secure the wall plate using appropriate heavy-duty fixings. Once the wall plate is fixed, attach the interface arms to the back of your display using the included hardware. Finally, hook the screen onto the cantilever arm assembly and tighten the safety screws to lock the display in place. You can then adjust the tilt and swivel to your preferred viewing position.

What to consider before purchase

• Verify that your wall structure is capable of supporting the weight of both the mount and the screen.
• Ensure your screen's VESA pattern falls within the 300x200 mm to 800x600 mm range.
• Check the weight of your display to ensure it does not exceed the 125 kg limit.
• Consider the required range of motion for your specific installation space.

For optimal performance, ensure the screen is perfectly leveled using the built-in 2° leveling adjustment after mounting. Regularly check the safety screws to ensure they remain secure, especially in high-traffic commercial environments.
