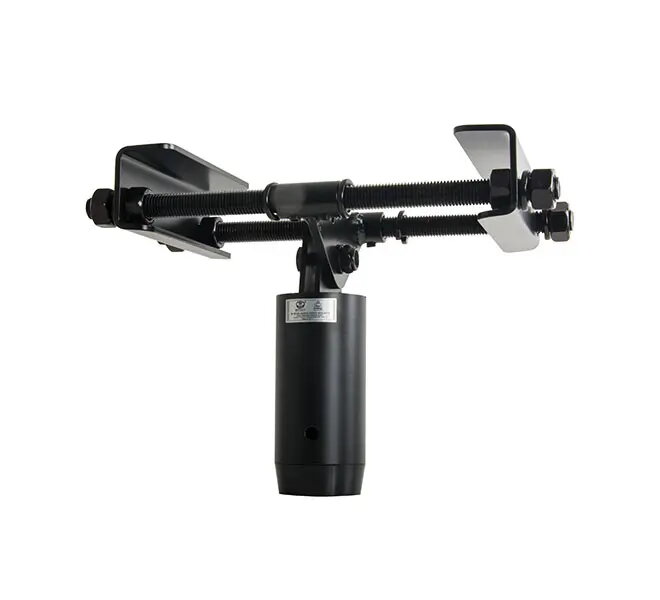

Clamp mount B-TECH SYSTEM 2 I-Beam / Girder for Ø50 mm poles, steel, black

B-TECH SYSTEM 2 I-Beam / Girder mount is a steel clamp designed to attach SYSTEM 2 components to I-beams or girders using Ø50 mm poles. Finished in black, the single-piece clamp provides a robust housing for secure mounting of poles in industrial or AV rigging applications, enabling stable installations and straightforward integration with SYSTEM 2 modular systems.

Advantages

The clamp offers adjustable mounting for I-beams and thick steel sections from 80 mm to 250 mm in width and includes a safety bolt and a locking bolt to secure the pole and set it vertical at any angle up to 40°. Built in steel with integrated cable management, the mount supports loads up to 140 kg and is supplied as a single-piece unit for easy installation.

Suitable for

• Mounting SYSTEM 2 poles (Ø50 mm) to I-beams or girders
• AV rigging, speaker or lighting suspension
• Industrial installations requiring secure pole attachment

Key specifications

• Material: steel
• Finish: black
• Compatible pole diameter: 50 mm
• Beam/girder width range: 80 mm – 250 mm
• Maximum weight capacity: 140 kg
• Includes safety bolt and locking bolt
• Cable management: integrated
• Pack quantity: 1 piece

How to use

Position the clamp over the I-beam or girder within the specified width range, insert and tighten the safety bolt to hold the clamp in place, then fit the Ø50 mm pole into the clamp housing. Use the locking bolt to set and secure the pole vertical angle (up to 40°). Route cables through the integrated cable management features as required. Ensure all bolts are tightened securely before applying load.

Usage recommendations

Use with compatible Ø50 mm SYSTEM 2 poles only; the pole is sold separately. Verify the beam width and the load requirements before installation and follow all site safety procedures when mounting heavy equipment.
