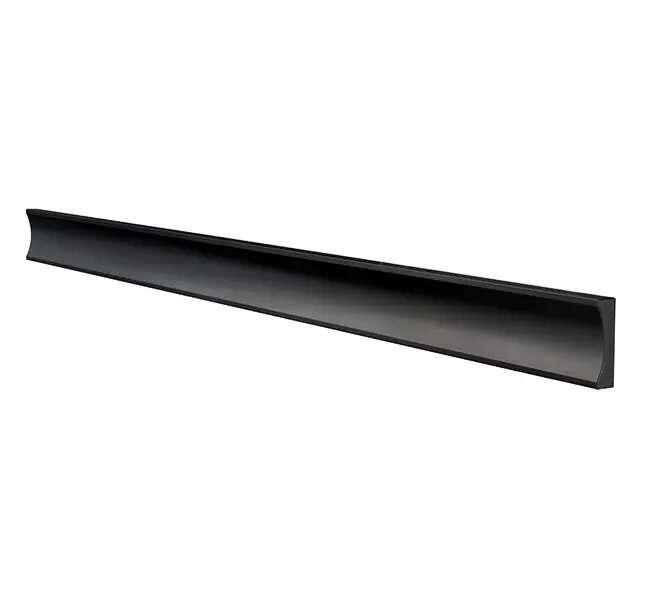

Mounting rail B-TECH BT8390-100/B V2 – aluminium, black, 1000 mm length, 30 mm depth

B-TECH BT8390-100/B V2 mounting rail is an aluminium, black-finished component designed to provide a continuous mounting channel for signage, displays and AV hardware. The rail measures 1000 mm in length, 30 mm in depth and 120 mm in height and is supplied as a single-piece item. As part of the System X range, the BT8390 rail is engineered to support interface arms, brackets and compatible accessory mounts to create configurable display layouts in commercial and retail fit-outs.

Advantages

The aluminium construction offers a balance of strength and low weight, enabling reliable support for single screens or multi-screen video walls while remaining easy to handle during installation. A black finish provides a neutral, high-end aesthetic suitable for visible installations. The rail is compatible with a wide range of interface arms and collar-style mounts, and it can be cut to length or extended with join kits to accommodate longer runs. Supplied end caps and a hook-on mounting method simplify assembly and help achieve a neat final appearance.

Suitable for

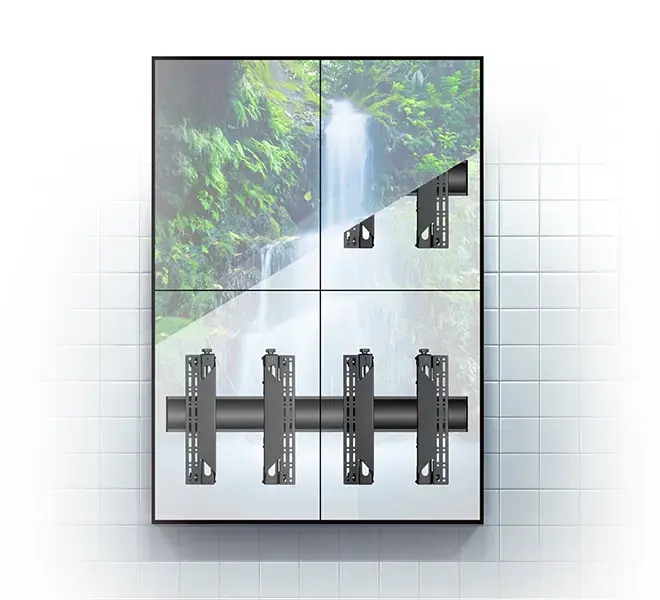

• Video walls and multi-screen arrays
• Menu boards and digital signage in retail and hospitality
• Single-screen premium display installations
• Wall-, pole- or column-mounted AV systems using System X accessories

Key specifications

• Material: Aluminium
• Finish: Black
• Length: 1000 mm
• Depth: 30 mm
• Height: 120 mm
• Supply format: Single-piece rail with plastic end caps
• Compatibility: Works with System X interface arms, collar-compatible mounts and Mode AL columns (accessories and fixing kits sold separately)
• Installation: Hook-on mounting; can be wall-, pole- or column-mounted

How to use

Determine the required mounting position and ensure the supporting surface or column can carry the intended load. If necessary, cut the rail to the required length using appropriate tools and deburr cut edges. Fit plastic end caps for a finished appearance. Attach the rail to the wall, pole or Mode AL column using the appropriate fixing kit (sold separately) and secure according to mounting surface requirements. Once the rail is secured, position compatible interface arms or mounts along the length of the rail and tighten collars or fasteners to secure displays in landscape or portrait orientation.

Usage recommendations

Use appropriate fixing kits and load-rated interface arms for the weight and size of the displays. For long runs, join multiple rails with extension kits and verify lateral adjustment clearance for interfaces. Follow local mounting regulations and, where needed, consult a qualified installer to ensure safe and compliant installation.
