Fixed Mount B-Tech SYSTEM X BT8390 VESA 400 Pop-Out Arms 50kg

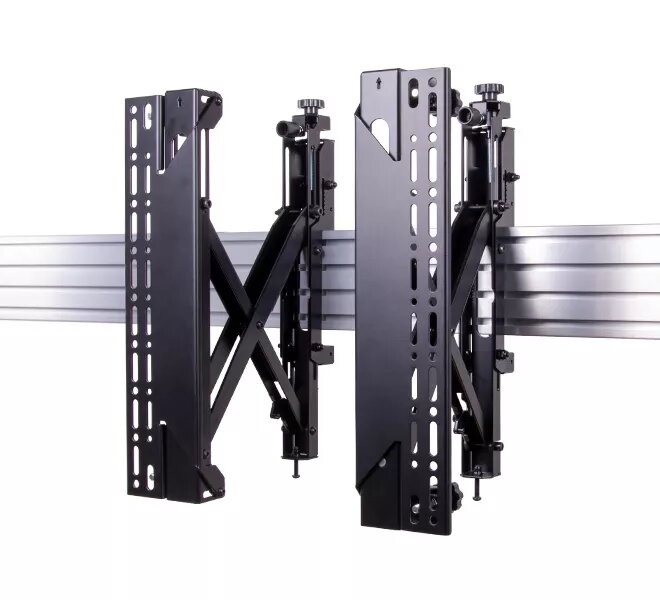

The B-Tech SYSTEM X BT8390 VESA 400 Pop-Out Arms are fixed mount interface arms designed for assembling videowalls and multi-screen installations. Compatible with medium to large screens (up to 50 kg), this mount attaches to System X horizontal rails and provides pop-out access for easier installation, cabling and maintenance. The universal modular design supports landscape and portrait orientations and offers micro-adjustment and a height adjustment range of -20 to +20 mm for precise alignment.

Advantages

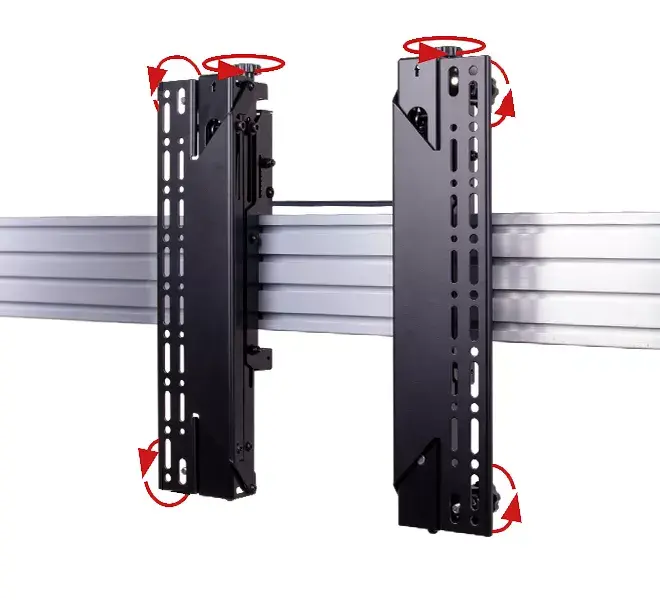

The modular, universal design is compatible with standard videowall screens and allows multiple configurations to be assembled. Tool-less micro-adjustment enables accurate alignment of adjacent displays. A mounted depth of 105.4 mm from the wall provides space for cable and connector access, while pop-out functionality simplifies screen installation and maintenance. The mount supports screens up to 50 kg and fits VESA 400 patterns.

Suitable for

• Videowall assemblies and multi-screen video walls
• Commercial display installations in retail, control rooms and corporate lobbies
• Portrait or landscape oriented displays mounted on System X horizontal rails
• Screens up to 70 inches (up to 50 kg) with VESA 400 mounting

Key specifications

• Model: B-Tech SYSTEM X BT8390 VESA 400 Pop-Out Arms (MPN: BT8390-VESA400MAP/B V2)
• Maximum load: 50 kg per arm
• VESA compatibility: 400 mm pattern
• Mount type: Fixed mount for System X horizontal rails
• Mounted depth from wall: 105.4 mm

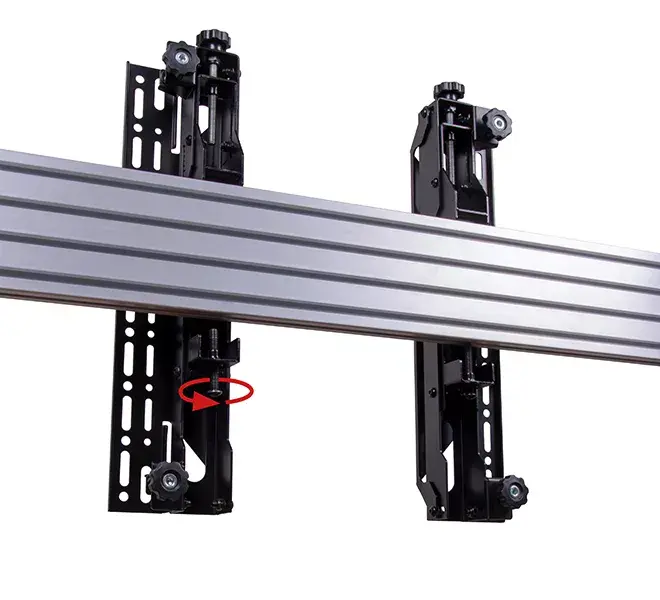

• Height adjustment: -20 mm to +20 mm

How to use

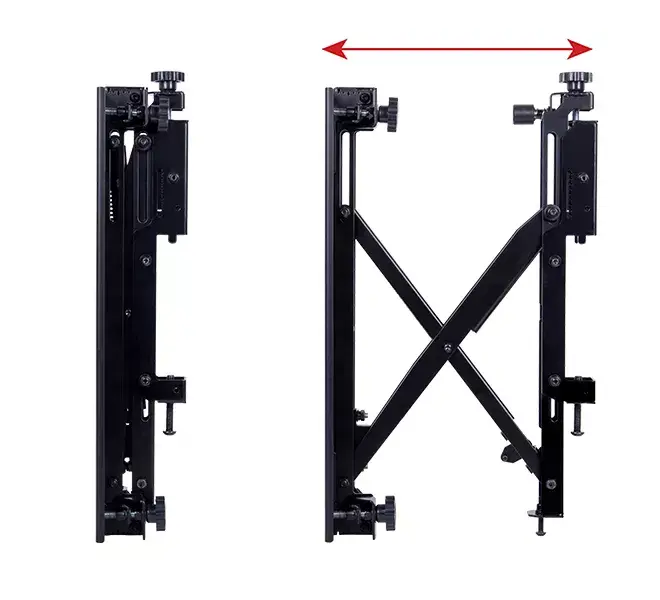

Attach the pop-out arms to System X horizontal mounting rails following the rail manufacturer’s installation instructions. Mount the display to the VESA 400 interface plate, ensuring the screen weight does not exceed 50 kg. Use the tool-less micro-adjustment and the -20 to +20 mm height adjustment to align displays precisely with neighbouring panels. When required, pull the arm into the pop-out position to access rear connections and cabling for installation or maintenance.

Usage recommendations

Verify compatibility of the screen VESA pattern and weight before installation. Ensure horizontal rails are correctly secured to the wall structure and follow local building and safety codes when mounting multiple arms for videowalls.
