B-TECH SYSTEM X VESA 400 tilt arm for BT8390

Name: Flat panel mount arm B-TECH BT8390-VESA400T/B
Brand: B-TECH
SKU: 602992
Price: 91.49 EUR
Availability: InStock

Shop for gifts early

Save time and money with our discounts!

Flat panel mount arm B-TECH SYSTEM X VESA 400 with tilt for BT8390, black, 70 kg capacity

B-TECH SYSTEM X VESA 400 tilt arm for BT8390 Photo 1

B-TECH SYSTEM X VESA 400 tilt arm for BT8390 Photo 2

B-TECH SYSTEM X VESA 400 tilt arm for BT8390 Photo 3

B-TECH SYSTEM X VESA 400 tilt arm for BT8390 Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Offer for legal entity, cashless payment. Why is an item available only for a legal entity?
This is due to long delivery times and limited product warranties.

Short description

Flat panel mount arm B-TECH SYSTEM X VESA 400 with tilt for BT8390 (pair). Designed for single displays up to 70" and a maximum weight of 70 kg, this black VESA 400 interface arm provides tilt adjustment and a slim 42.5 mm width with 430 mm height. It secures flat screens to compatible SYSTEM X fittings and is suited for commercial and residential installations where stable, adjustable mounting is required.

Available at price 91.49 €: 10 pcs.

Total available for order: 13 pcs.

Warranty: 2 Years

SKU: 602992

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

01.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

06.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

06.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay

Available for private customers at price 98.49 €: 3 pcs.

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Flat panel mount arm B-TECH SYSTEM X VESA 400 with tilt for BT8390, black, 70 kg capacity is a slim interface arm designed to secure a single flat screen up to 70" and 70 kg to compatible SYSTEM X horizontal mounting rails. The arm provides a VESA 400 mounting pattern, tilt adjustment up to 20° via thumbwheels, and post-installation levelling using integrated levelling screws. With a slim profile of 42.5 mm width and 430 mm height, the arm supports both landscape and portrait orientations and is intended for commercial and residential installations that require stable, adjustable mounting of small to medium screens.

Advantages

This B-TECH SYSTEM X VESA 400 interface arm offers a high load capacity of 70 kg while maintaining a slim 42.5 mm profile and a 430 mm height for unobtrusive mounting. Tool-less tilt adjustment with thumbwheels allows quick on-site angle changes up to 20°, and levelling screws provide fine vertical adjustment after installation. The universal design supports both landscape and portrait mounting and integrates directly with System X horizontal rails, making it suitable for single-row and multi-screen installations.

Suitable for

Mounting a single flat panel display up to 70" in commercial or residential settings
Single-row video walls or multi-screen runs using System X horizontal rails
Installations requiring tilt adjustment and post-installation levelling
Displays that need either landscape or portrait orientation

Key specifications

Maximum weight capacity: 70 kg
Maximum screen size supported: 70"
Number of displays supported: 1
Product colour: Black
VESA interface: 400 mm pattern

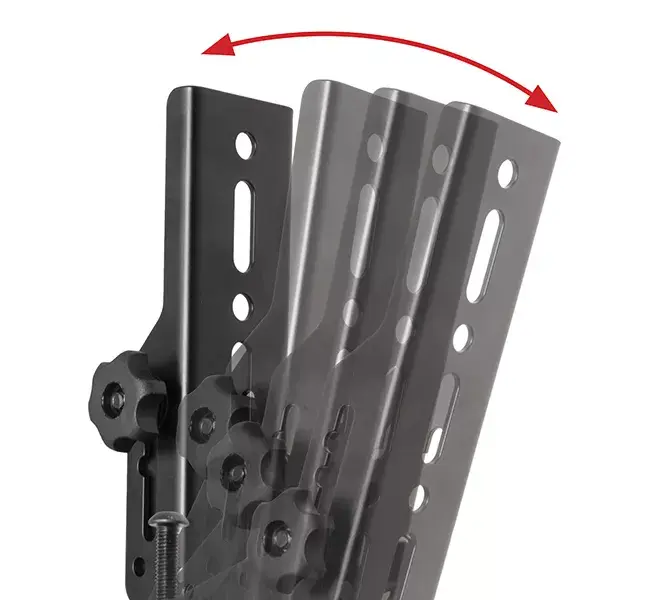

Tilt adjustment: up to 20° using thumbwheels (tool-less)

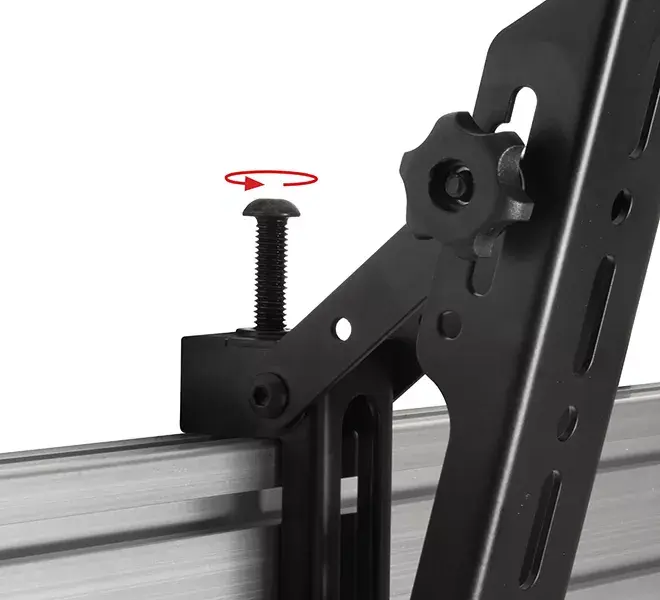

Post-installation levelling: integrated levelling screws
Profile dimensions: 42.5 mm width, 430 mm height

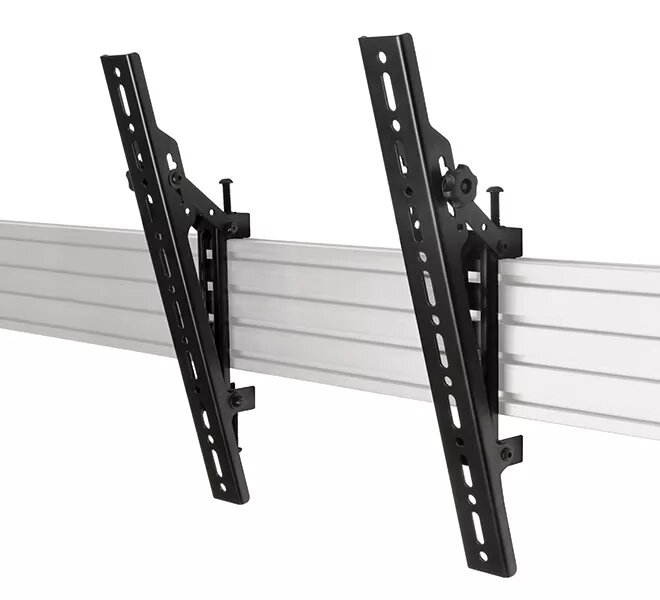

Compatible with: SYSTEM X horizontal mounting rails

How to use

Attach the interface arm to a compatible SYSTEM X horizontal rail according to the rail manufacturer's instructions, ensuring the rail and fixings are rated for the combined weight. Secure the display to the VESA 400 pattern on the arm, using appropriate screws for the screen model. Use the levelling screws to adjust vertical alignment after the screen is mounted. Adjust the tilt angle with the thumbwheels to the desired up to 20° position; thumbwheels allow fine tool-less adjustment and can be re-tightened to maintain angle. Verify all fastenings and the overall stability before leaving the installation.

Usage recommendations

Ensure the supporting SYSTEM X rail and building fixings are rated for at least the weight of the display plus a safety margin. Use manufacturer-recommended hardware for VESA 400 mounting and follow local installation regulations. For repeated adjustments or heavy screens near the 70 kg limit, check fixings periodically and re-tighten levelling screws and thumbwheels as needed.

Specifications

Maximum weight capacity:: 70 kg
Maximum screen size:: 70 "
Number of displays supported:: 1
Product colour:: Black

All features

Mounting

Maximum weight capacity:: 70 kg
Mounting type:: Rail
Minimum screen size:: 42 "
Maximum screen size:: 70 "
Number of displays supported:: 1

Weight & dimensions

Height:: 430 mm
Width:: 42.5 mm

Technical details

Product type:: Flat panel mount arm

Features

Product colour:: Black
Tilt angle range:: -20 - 20

Logistics data

Harmonized System (HS) code:: 83024200
