B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500)

Name: Wall Mount B-TECH VENTRY BTV520/B BTV520/B
Brand: B-TECH
SKU: 1560009
Price: 49.99 EUR
Availability: InStock

Aquaphor

Filters you can trust. Pure water every day.

Wall Mount B-TECH VENTRY BTV520/B — universal flat screen bracket, VESA up to 825×500 mm, 70 kg, for up to 65" displays, black

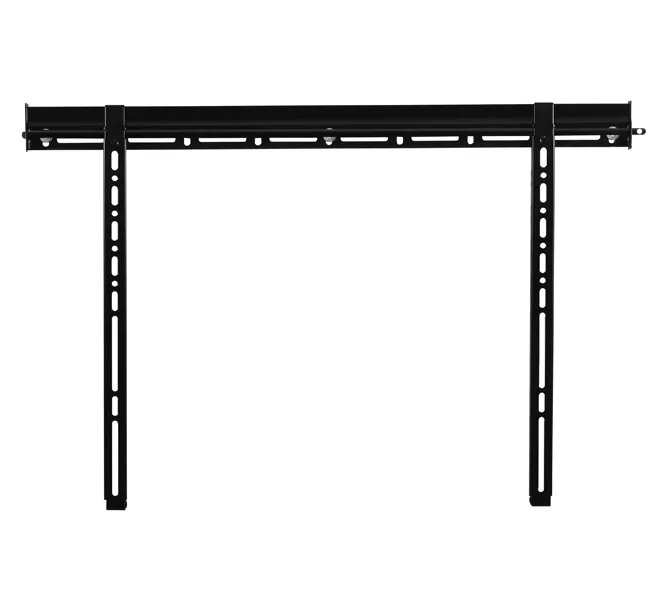

B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500) Photo 1

B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500) Photo 2

B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500) Photo 3

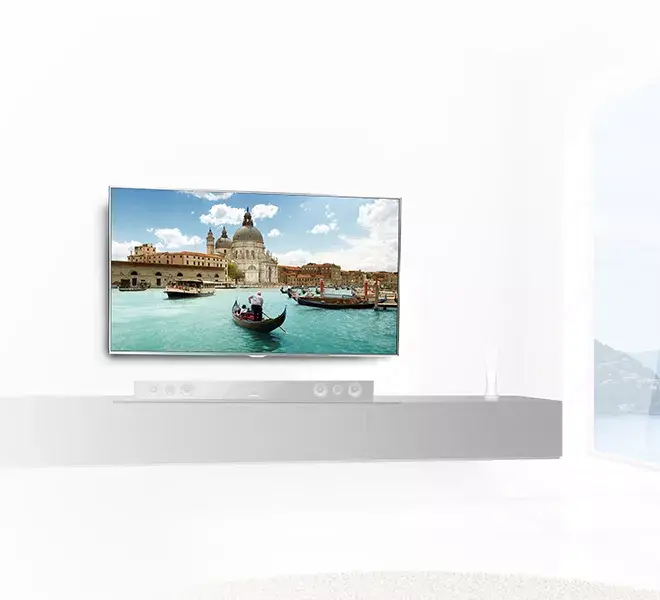

B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500) Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

B-TECH VENTRY BTV520/B is a universal flat screen wall mount for one display with VESA compatibility up to 825×500 mm. It supports screens up to 165.1 cm (65") and a maximum weight of 70 kg. The bracket sits 2 cm from the wall, offers secure steel construction and a black finish, suitable for TV or monitor installation in homes, offices or public spaces.

Available for order: 1 pcs.

Warranty: 2 Years

SKU: 1560009

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

03.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

08.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 €

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

08.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

B-TECH VENTRY BTV520/B is a universal flat screen wall bracket designed for a single display with VESA compatibility up to 825×500 mm. The mount supports screens up to 165.1 cm (65") and a maximum weight of 70 kg. With a low-profile design that positions the screen approximately 20 mm from the wall and a black steel finish, this bracket is suitable for TVs and monitors in homes, offices and public spaces. The product includes all mounting hardware, a security locking bar to deter unauthorised removal and a hook-on installation method with post-installation alignment to simplify final positioning.

Advantages

The bracket offers a compact, low-profile appearance that keeps the display close to the wall while providing robust steel construction capable of safely supporting up to 70 kg. Compatibility with large VESA patterns up to 825×500 mm makes it suitable for a wide range of modern TVs and monitors. Included mounting hardware and a security locking bar reduce the need for additional parts and improve installation security. The hook-on fitting and post-installation alignment enable faster, simpler mounting and precise screen positioning.

Suitable for

Mounting 55"–65" TVs and large monitors with VESA up to 825×500 mm
Home living rooms and bedrooms where a low-profile look is required
Office meeting rooms and classrooms using fixed-position displays
Public spaces such as reception areas, retail or hospitality displays

Key specifications

Maximum VESA mounting pattern: 825 x 500 mm
Maximum supported weight: 70 kg
Number of displays supported: 1
Maximum screen size supported: up to 65" (165.1 cm)
Distance from wall (low-profile): approx. 20 mm
Material and finish: steel, black finish
Installation type: fixed wall mount with hook-on fitting and post-installation alignment
Includes mounting hardware and security locking bar

How to use

Select a suitable mounting location on a solid surface such as concrete, brick or a stud wall (up to 32" stud spacing). Use the included hardware to secure the wall plate at the recommended height and ensure it is level. Attach the display brackets to the display following the VESA pattern, hook the display onto the wall plate, then perform the post-installation alignment for precise positioning. Secure the display with the supplied security locking bar to help prevent unauthorised removal. Verify all fastenings before use and confirm that the display is safely supported.

Usage recommendations

For safety and optimal performance, check the display weight and VESA pattern before installation, use appropriate fixings for the wall material, and, if uncertain, consult a qualified installer. Regularly inspect mount fixings and the security lock for wear or loosening.

Specifications

Maximum VESA mount:: 825 x 500
Maximum weight capacity:: 70 kg
Number of displays supported:: 1
Maximum screen size:: 65 "
Product colour:: Black

All features

Logistics data

Master (outer) case gross weight:: 16750 g
Products per master (outer) case:: 6 pc(s)
Master (outer) case volume:: 0.049 cm³
Harmonized System (HS) code:: 83024200

Mounting

Maximum weight capacity:: 70 kg
Panel mounting interface:: 75 x 75, 800 x 400, 600 x 400, 400 x 400, 400 x 200, 300 x 200, 300 x 300, 200 x 200, 200 x 100, 100 x 100, 50 x 50
Mounting type:: Wall
Maximum screen size:: 65 "
Number of displays supported:: 1
Maximum VESA mount:: 825 x 500

Weight & dimensions

Height:: 583 mm
Width:: 891 mm
Depth (max):: 20 mm

Ergonomics

Distance to the wall (max):: 20 mm

Features

Product colour:: Black

Hide Show all

Instructions

mmo_18588294_1564754354_1381_18211.pdf

B-1560009.pdf

Description

Instructions

mmo_18588294_1564754354_1381_18211.pdf

B-1560009.pdf

Machine translation. Load original

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

How much does the B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500) cost, and is it available for purchase?

The price is 49.99 € (valid at the time of publication and already includes all taxes). The item is available for order — 1 pcs. are in stock, and you can place your purchase right now with delivery across Latvia and Europe or choose pickup at the Riga collection point. We offer favorable purchase terms, including the option to split the payment into convenient monthly installments. Availability and price are updated in real time, so we recommend placing your order in advance.

If I order this product today, when will I receive my order?

If you place your order today, delivery will be as fast and convenient as possible. You will be able to pick up your order on 03.07.2026 at the Riga pickup point or choose delivery across Latvia and Europe. We carefully inspect every purchase and pack it securely for safe transportation.

What payment options are available?

AiO.lv offers several payment methods: Bank transfer, Bank cards on-line, Apple Pay, Google Pay. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All B-TECH products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized B-TECH service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: maximum vesa mount, maximum weight capacity, number of displays supported, maximum screen size, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for B-TECH VENTRY BTV520/B wall mount for 65" (VESA 825×500)?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.

Show all questions
