HDMI Keystone Jack Bachmann 918.0411 — HDMI 2.0 module for keystone wall plates and patch panels

Bachmann HDMI Keystone Jack 918.0411 is an HDMI 2.0 keystone module designed for installation into compatible wall plates and patch panels. It provides a standard HDMI interface for audio and video connections, enabling tidy, modular installations in residential and commercial AV environments. The module supports the HDMI 2.0 feature set for high-definition video and multichannel audio, and is intended to simplify cable routing between displays, projectors, AV receivers and media players while maintaining a professional finish.

Advantages

The keystone module form factor allows quick snap-in mounting into standard keystone wall plates and rack-mounted patch panels. As an HDMI 2.0-compatible module, it supports higher bandwidth video signals and multichannel audio while reducing cable strain at the connection point. The compact design enables flexible placement in living rooms, conference rooms, classrooms and server racks, and facilitates straightforward replacement or reconfiguration without altering wall wiring.

Suitable for

• Fixed wall installations for TVs and home theater systems
• AV racks and patch panels in professional or corporate environments
• Projector connections in meeting rooms and classrooms
• Media player and game console connections where a clean wall outlet is preferred

Key specifications

• Interface: HDMI female keystone module compatible with standard keystone openings
• HDMI version support: HDMI 2.0 feature set (supports high-bandwidth video and multichannel audio)

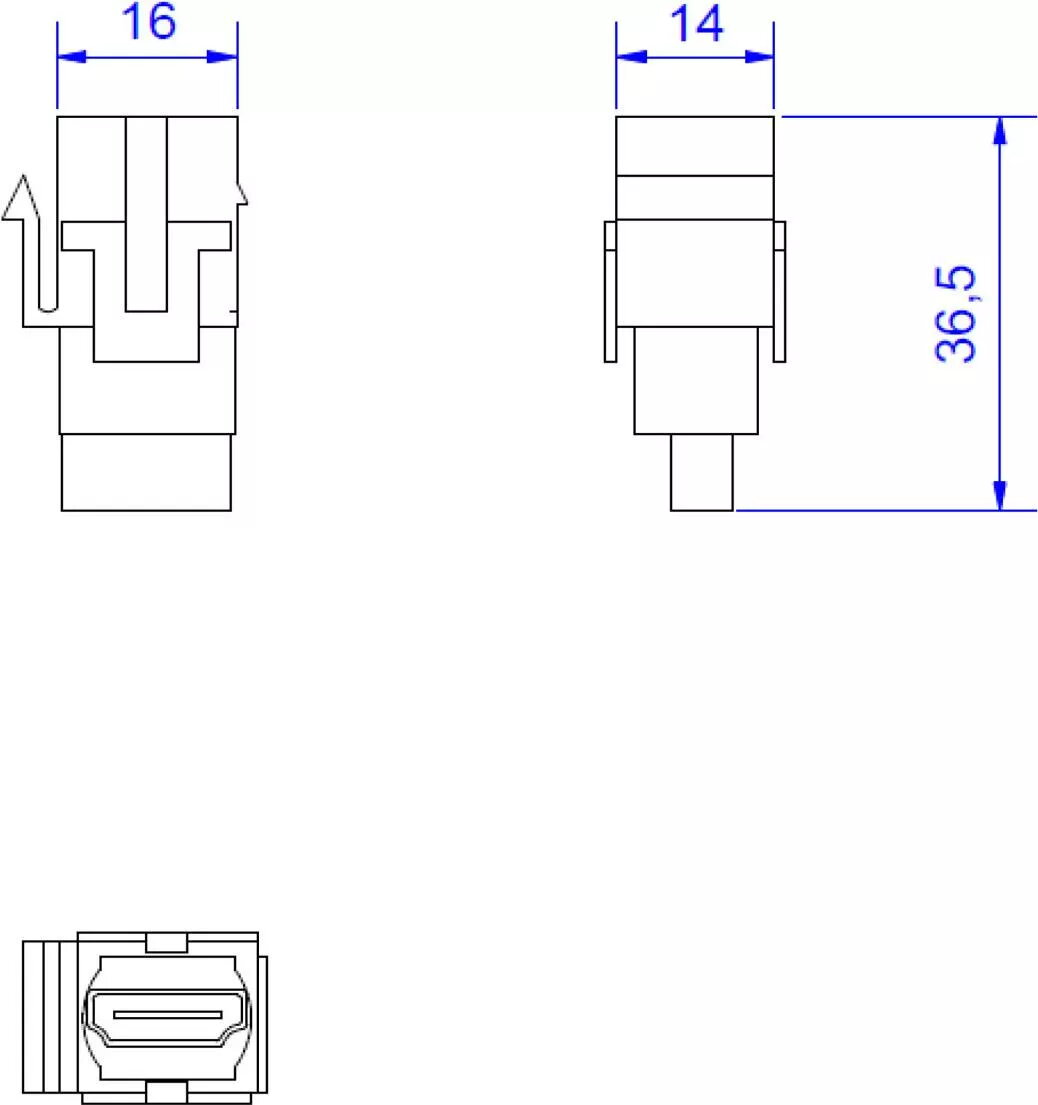

• Form factor: single-gang keystone module size for wall plates and patch panels
• Connection type: rear termination suitable for HDMI cable solder/connector or pigtail assembly (compatible with standard installation practices)
• Use environment: indoor installation for residential, office and AV rack applications

How to use

Install the Bachmann HDMI keystone module into a compatible keystone opening in a wall plate or patch panel by inserting the module until it snaps into place. Terminate the rear connection according to the installation method you use (rear-mounted connector, pigtail or soldered cable) and secure any strain relief provided by the plate or panel. After wiring, attach the wall plate or panel to the mounting box or rack and connect HDMI cables between the module and your display or source devices. Verify signal transmission and, if necessary, check cable quality and HDMI settings on connected devices.

Usage recommendations

Use high-quality HDMI cables rated for the same or higher bandwidth as supported by HDMI 2.0 to ensure reliable 4K/60Hz signals and multichannel audio. When installing into patch panels or wall plates, follow local electrical and building codes and apply appropriate strain relief and cable management to prevent connector stress. For long runs or complex AV systems, consider signal testing and the use of certified extenders or amplifiers where required.
