Connector hinge for cable tray Baks LGJH50 H50 1mm model 152400

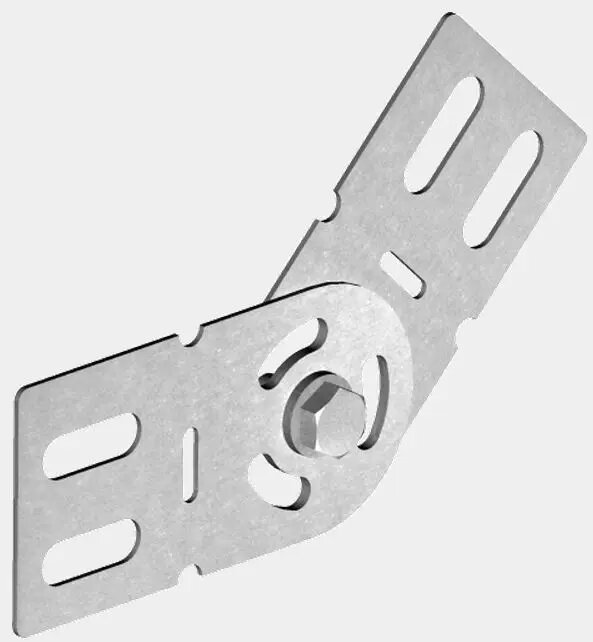

Baks connector hinge for cable tray LGJH50 H50 (model 152400) is a metal joint made in 1 mm thickness designed to link and articulate sections of LGJH50/H50 cable trays. It provides a mechanical connection that allows for controlled angular movement between tray segments, enabling flexible routing of cables while maintaining structural continuity along industrial and commercial cable management runs.

Advantages

The 1 mm steel construction offers a balance of rigidity and slight flexibility suited for connecting LGJH50/H50 tray sections. Its hinge design permits angular adjustment between segments without requiring separate brackets for each joint, which can simplify installation in runs that change direction. Manufactured by Baks to be compatible with LGJH50/H50 profiles, the connector hinge supports secure fastening and maintains alignment of tray edges to reduce stress on mounted cables.

Suitable for

• Connecting and articulating LGJH50/H50 cable tray segments in straight runs and changes of direction
• Electrical installations in commercial buildings, workshops, and light industrial environments
• Cable management systems where occasional angle adjustment between tray sections is required

When it may not be suitable

This hinge is designed for LGJH50/H50 profile cable trays and may not fit other tray series or profiles. It is manufactured from 1 mm metal, so it is intended for standard cable loads and moderate mechanical stress; it is not suitable where heavy structural loads, significant bearing forces, or extreme vibration are present. For environments requiring corrosion resistance beyond standard metal finishes, consider verifying material treatment or selecting a corrosion-resistant alternative.

Key specifications

• Material thickness: 1 mm
• Compatible tray profile: LGJH50 / H50
• Function: connector hinge for articulated joint between tray sections
• Application area: indoor commercial and light industrial cable routes

How to use

Align the connector hinge with the mating edges of two LGJH50/H50 tray sections so that the hinge pin axis allows the required articulation. Secure the hinge to each tray section using appropriate fasteners through the provided holes or attachment points, following the tray manufacturer's torque and fastening recommendations. After installation, check alignment and ensure the hinge moves smoothly within the intended angle range while cables are not pinched. Periodically inspect fastenings and hinge movement as part of routine cable management maintenance.

What to consider before purchase

• Confirm compatibility with LGJH50 or H50 tray profile dimensions
• Verify that 1 mm material thickness meets the mechanical load and durability requirements of your installation
• Assess environmental conditions for corrosion and select appropriate surface finish or alternative if needed

Usage recommendations

Use the connector hinge primarily for standard cable loads and moderate-duty tray runs. For each installation, follow the tray system's assembly guidelines, use recommended fasteners, and allow for periodic inspection to ensure continued secure articulation and alignment of tray segments.
