Trójnik korytka Baks TKJ200H50 200 mm (model 156620)

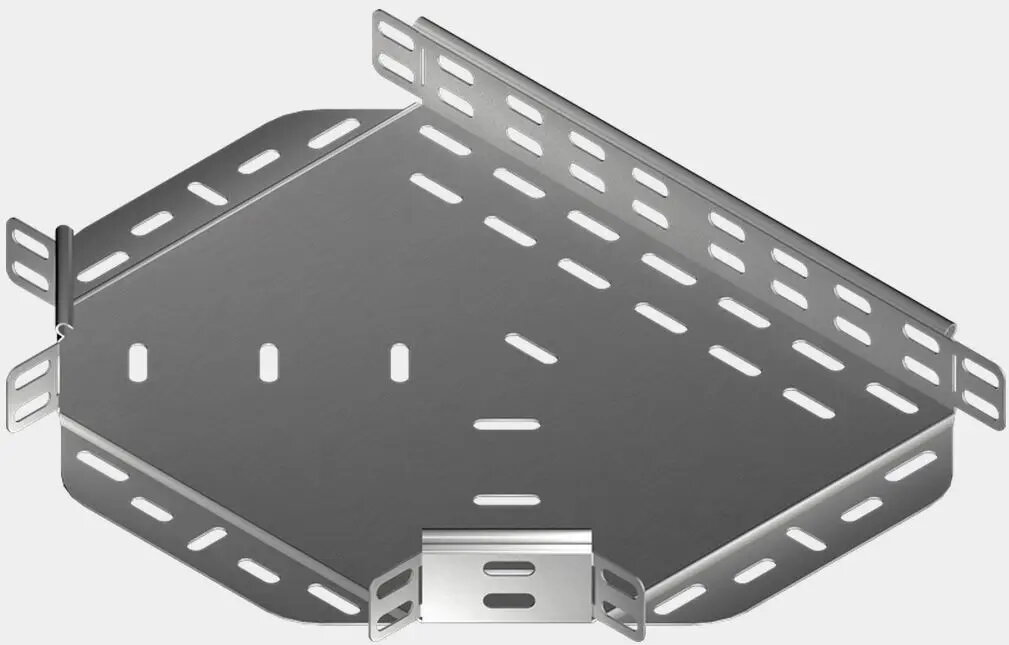

Trójnik korytka Baks TKJ200H50 200 mm is a cable tray tee designed to split or join three sections of a 200 mm cable tray system. Manufactured by Baks, this component maintains dimensional compatibility with other 200 mm routing elements and provides a stable mounting point for routing electrical and low-voltage cables in residential, commercial, and light industrial installations. The part is intended for use inside buildings and during upgrades or modifications to existing cable routes.

Advantages

This tee element is made to fit standard 200 mm cable trays, ensuring consistent alignment and easy integration with straight runs and bends. Its geometry supports secure positioning of cables and reduces the chance of cable crowding at junctions. The product is suited to installation methods common in building wiring and allows technicians to create three-way branches without fabricating custom connectors.

Suitable for

• Creating three-way branches in 200 mm cable tray runs
• Indoor electrical and data cabling routes in residential and commercial buildings
• Renovation and expansion of existing tray systems where a 200 mm diameter is used

When it may not be suitable

This component is designed specifically for 200 mm tray systems; it will not be suitable for cable trays of other widths or for outdoor installations exposed to direct weather without appropriate protection. It also does not provide built-in sealing or fire-stopping features, so additional accessories or measures may be required to meet specific fire or ingress protection requirements.

Key specifications

• Tray diameter / nominal width: 200 mm
• Type of element: three-way tee for cable tray systems
• Application environment: indoor cable routing, building installations
• Material and finish: compatible with standard metal or coated tray systems (refer to supplier for exact material)
• Function: split or join three cable tray sections with aligned mounting

How to use

Position the tee between the selected incoming and outgoing 200 mm tray sections, aligning bolt holes or fastening points according to the tray system practice. Secure the tee with appropriate fasteners and clamps used for the rest of the tray layout, ensuring mechanical stability and correct cable support. Route cables through each branch, maintaining recommended fill ratios and separation of power and data cables if required by local wiring rules.

What to consider before purchase

• Confirm that your existing tray system uses a 200 mm nominal width to ensure compatibility
• Check material and finish requirements for corrosion resistance or coating compatibility with your trays
• Ensure you have matching fasteners, clamps, and any required earthing or bonding hardware
• Verify local regulations for fire-stopping, segregation, and cable fill limits that may affect installation

Usage recommendations

Install the tee during planned tray layout works and secure all connections before loading cables. Keep cable fill within recommended limits for 200 mm trays and provide additional supports near the tee if heavy cable bundles are expected. For installations with specific environmental or fire-safety requirements, consult a qualified installer to select compatible accessories and ensure compliance.
