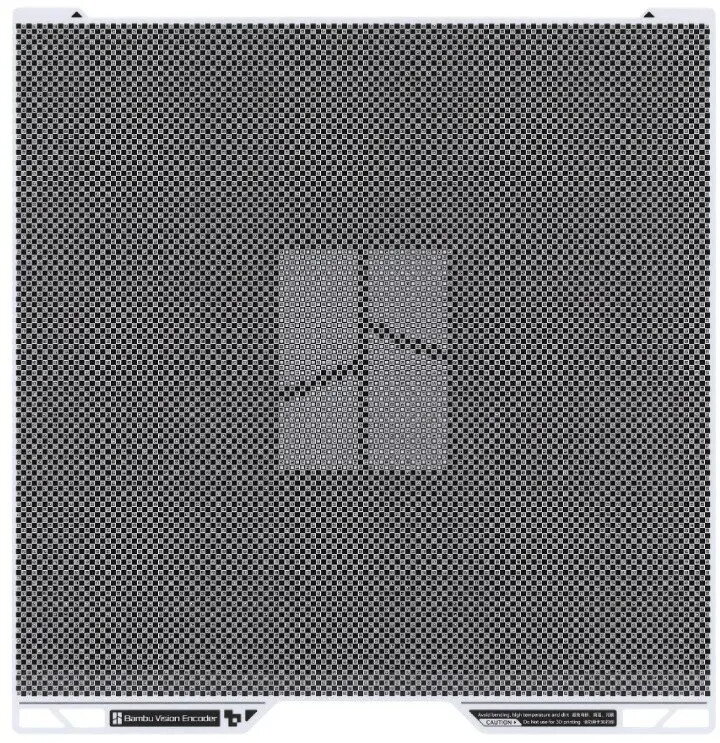

Calibration Plate (Vision Encoder) for BambuLab H2 Series 3D Printers, BambuLab BML-26701

The Calibration Plate (Vision Encoder) for BambuLab H2 Series 3D Printers is an optical reference surface used by the printer's vision system to perform positioning and motion-tracking calibration. Designed for use with BambuLab H2 series machines, the plate provides a stable, consistent pattern that the onboard sensors read to verify alignment and encoder accuracy. This accessory is intended for maintenance, setup, and routine checks following hardware changes or transport to help restore or maintain precise layer registration and reliable sensor performance.

Advantages

This calibration plate offers a reliable reference for automated vision-based calibration routines, reducing variability in position detection compared with generic surfaces. It supports improved print repeatability by enabling the printer to correct for minor misalignments and ensuring the vision encoder consistently reads positional markers. The plate is compact and easy to handle, enabling technicians and end users to integrate it into standard maintenance workflows without specialized tools.

Suitable for

• Routine vision encoder calibration and maintenance
• Printer setup after component replacement or transportation
• Verifying and restoring layer alignment and positional accuracy
• Diagnostic checks of the vision system and motion-tracking performance

Key specifications

• Optical reference surface with patterned markers readable by vision sensors
• Compatible form factor for BambuLab H2 series vision system
• Durable, flat construction to maintain consistent sensor readings
• Lightweight and portable for workshop use

How to use

Place the calibration plate on the printer bed or the designated mounting location as described in the printer manual so that the vision camera or encoder can clearly view the pattern. Initiate the vision calibration routine from the printer's interface or connected software; the system will detect the plate's markers and adjust positional parameters accordingly. Repeat the calibration after any hardware changes, carriage adjustments, or if diagnostic results indicate drift in encoder readings. Store the plate on a flat, clean surface when not in use to preserve the reference pattern.

Usage recommendations

Handle the plate by its edges to avoid smudges on the patterned surface, and clean only with a lint-free cloth and mild, non-abrasive cleaner if necessary. Perform calibration in consistent lighting conditions to ensure accurate sensor detection, and follow the printer manufacturer's sequence for vision routines to achieve optimal results.
