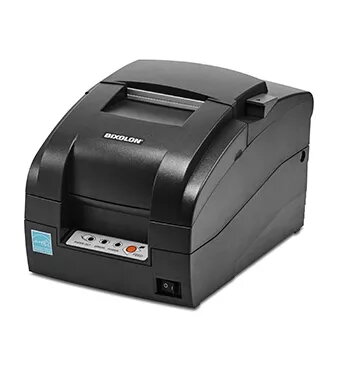

Dot matrix POS printer BIXOLON SRP-275III — 80 x 144 DPI, 76.5 mm paper width, wired, 64 MB RAM

BIXOLON SRP-275III is a wired dot matrix POS printer designed for reliable, high-uptime printing of receipts, tickets and reports. The printer delivers 80 x 144 DPI resolution and supports paper rolls up to 76.5 mm wide with a maximum roll diameter of 83 mm, offering a maximum printing width of 63.5 mm. Built with 64 MB RAM and 16 MB flash memory and multiple sensors for paper end, paper near end, rear cover open and black mark detection, the SRP-275III is suited to continuous retail, hospitality and ticketing environments where robust mechanical performance and predictable output are required.

Advantages

The SRP-275III provides a durable printing mechanism rated for high duty cycles and long service life, plus fast line speed up to 5.1 lines per second at 40 columns. It supports two-color printing and clear rendering of fonts and graphics for receipts and tickets. Multiple interface options including combinations of USB 2.0, serial, parallel and Ethernet (DHCP enabled) make integration with existing POS, CAT and data terminal systems flexible. Practical design features such as anti-jam technology, drop-in paper loading, internal SMPS and optional wall-mounting improve uptime and ease of maintenance.

Suitable for

• POS customer receipts and end-of-day reports
• Restaurant guest checks, kitchen and bar orders
• Ticketing: admission tickets and parking stubs
• Credit card authorization terminals and multi-copy retail prints
• Data terminals, service reports and data loggers

Key specifications

• Printing technology: dot matrix
• Resolution: 80 x 144 DPI
• Maximum paper width: 76.5 mm
• Maximum printing width: 63.5 mm
• Maximum paper roll diameter: 83 mm
• Memory: 64 MB RAM, 16 MB flash
• Printing speed: up to 5.1 lines per second (at 40 columns)
• Colors: two-color printing support
• Sensors: paper end, paper near end, rear cover open, black mark detection
• Mounting options: stand-alone and wall-mount

How to use

Install the SRP-275III on a stable surface or mount it on a wall using the provided mounting points. Connect the printer to your POS or terminal using the chosen interface (USB, serial, parallel or Ethernet) and configure network settings if using Ethernet (DHCP supported). Load paper with the simple drop-in mechanism, ensure the sensors detect the roll and close the rear cover. Configure printer settings and fonts through the device drivers or POS software to match receipt layouts; two-color settings and print density can be adjusted as needed. Regularly check ribbon/ink and paper status indicators to avoid interruptions.

Usage recommendations

Use standard thermal-compatible or recommended impact paper rolls within the specified width and maximum diameter to ensure consistent print quality and to avoid sensor or feed issues. For kitchen or bar environments, enable the internal buzzer for immediate notification of completed prints. Schedule preventative checks of the print head and platen, and keep the paper path free of debris to maximize the rated mechanism life.
