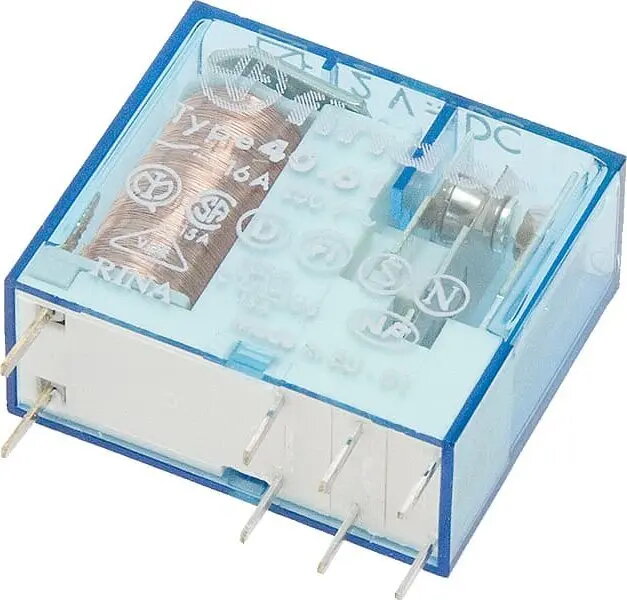

Relay BLOW 1258# (Finder F4.061.9.024) 16 A, 24 V coil, electromechanical

The BLOW 1258# (Finder F4.061.9.024) is an electromechanical relay with a 24 V coil and a 16 A contact rating, intended for switching AC and DC circuits in control panels, automation systems and industrial equipment. It combines a compact design with a mechanical switching mechanism to provide reliable operation for both signal-level and load-level switching tasks where a 16 A capacity and 24 V coil activation are required.

Advantages

This relay offers a defined 16 A switching capacity suitable for moderate loads and common industrial applications. The 24 V coil voltage enables straightforward integration with standard control circuits and PLC outputs. As an electromechanical device, it provides clear mechanical separation of contacts and predictable switching behaviour, supporting easy troubleshooting and replacement in maintenance operations.

Suitable for

• Switching AC and DC control circuits in automation systems
• Load switching for motors, solenoids and indicator circuits within the 16 A rating
• Control panels and relay boards requiring a 24 V coil activation
• Signal switching and interfacing between PLC outputs and field devices

Key specifications

• Contact current rating: 16 A
• Coil nominal voltage: 24 V (DC)
• Type: electromechanical relay with mechanical contacts
• Designed for AC and DC switching applications
• Form factor: compact module suitable for panel or socket mounting

How to use

Install the relay into the appropriate socket or mounting location in the control panel following the manufacturer's mounting and wiring guidelines. Connect the coil to a stable 24 V control source, observing polarity if specified for DC coils. Wire the load and supply conductors to the relay contacts according to the intended switching function, ensuring that current through the contacts does not exceed 16 A. Verify correct operation by activating the coil and observing contact switching; perform insulation and continuity checks after installation and before commissioning.

Usage recommendations

To maximise service life and safe operation, use the relay within its 16 A contact rating and maintain clean, corrosion-free connections. Avoid frequent switching at maximum load where possible, and fit appropriate protective devices such as fuses, circuit breakers or suppression components for inductive loads. Follow local wiring standards and the equipment manufacturer's instructions during installation and maintenance.
