Connector BLOW 43-006# insulated fork terminal with screw for 4.3 mm cable

The BLOW 43-006# insulated fork terminal with screw is designed for fastening electrical conductors with a 4.3 mm fork connection. The connector combines an insulated sleeve to protect against accidental contact and a screw-mounted fork for secure mechanical and electrical contact. It is suitable for general wiring tasks where a screw-secured fork terminal is required, including panel connections, appliance wiring and vehicle electrical repairs.

Advantages

The insulated sleeve provides basic electrical insulation and strain relief while the metal fork ensures stable conductivity and easy access for screw terminals. The screw fastening allows a firm mechanical connection that resists vibration and loosening under typical operating conditions. The compact fork shape enables installation in confined terminal blocks and on screw-type posts without the need to fully remove the screw.

Suitable for

• General electrical wiring and maintenance
• Control panels and terminal blocks
• Automotive and vehicle electrical repairs
• Household appliance connections and replacements

Key specifications

• Connector type: insulated fork (spade) terminal with screw fastening

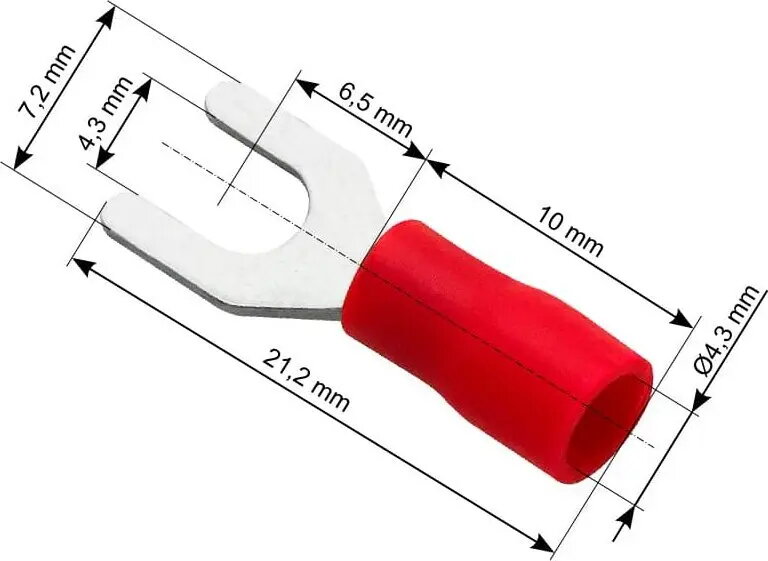

• Cable/fork size compatibility: designed for 4.3 mm fork connection
• Insulation: plastic insulated sleeve for touch protection and strain relief
• Contact material: tin-plated or similar conductive metal for reliable conductivity
• Mounting method: screw-mounted onto threaded posts or terminal screws

How to use

Strip the conductor to the appropriate length, insert the bare wire into the barrel of the fork terminal, and crimp or crimp-solder according to standard practice for insulated terminals. Position the fork under the terminal screw or post and tighten the screw to the manufacturer-recommended torque to ensure a secure electrical and mechanical connection. Verify there is no exposed conductor beyond the insulation that could cause accidental contact.

Usage recommendations

Use the terminal with appropriately sized screws and posts for 4.3 mm forks, and select crimping tools rated for insulated terminals to achieve a reliable crimp. Avoid over-tightening screws to prevent deformation of the fork or damage to the conductor. For high-vibration or high-current applications, inspect connections periodically and use additional locking or protective measures where necessary.
