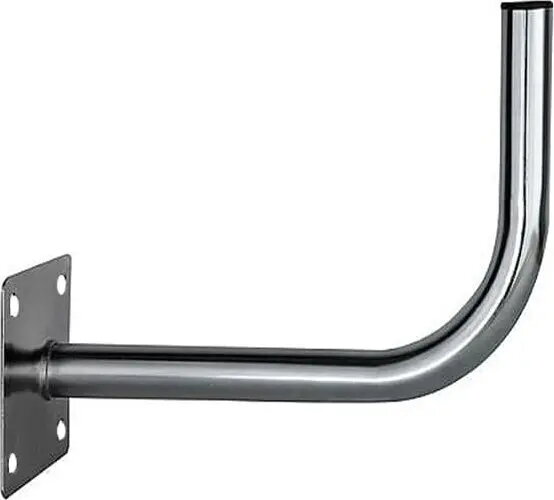

Wall Mount Bracket BLOW 76-911# angled 500 mm for pipes and conduits

Wall Mount Bracket BLOW 76-911# angled 500 mm for pipes and conduits is a metal support designed to secure pipes, conduits and similar cylindrical elements to vertical surfaces. Its 500 mm angled profile creates an offset from the wall, allowing safe routing of lines and preventing direct contact with the mounting surface. The bracket is suitable for fixed installations in plumbing, HVAC and electrical systems where a stable, load-bearing wall attachment is required.

Advantages

The angled design provides consistent clearance between the pipe and the wall, reducing heat transfer and facilitating access for maintenance. Manufactured from durable metal, the bracket offers stable support and long service life under standard indoor and sheltered outdoor conditions. Its simple shape allows straightforward mounting and integration with common pipe clamps and conduit supports.

Suitable for

• Mounting water, gas and drainage pipes at a fixed offset from walls
• Supporting electrical conduits and cable trays where wall clearance is needed
• HVAC duct and refrigerant line installations that require separation from building surfaces
• Light industrial and workshop applications with cylindrical components

Key specifications

• Type: angled wall mount bracket for pipes and conduits
• Material: metal construction designed for load-bearing support
• Length: 500 mm offset from the mounting surface
• Profile: bent/angled to provide clearance and routing offset
• Finish: protective coating suitable for indoor and sheltered outdoor use

How to use

Position the bracket on the vertical surface at the required height and mark mounting points. Use appropriate anchors or fasteners for the wall material and affix the bracket securely. Attach pipes or conduits to the bracket using compatible clamps or straps, ensuring the load is evenly distributed along the support and that fasteners are tightened to specification. Verify alignment and clearance after installation and make adjustments as needed to maintain proper routing and stability.

Usage recommendations

For safe and durable performance, choose fasteners and anchors rated for the wall substrate and expected load. Inspect mounting points periodically and replace any corroded hardware. Use compatible pipe clamps and avoid overtightening to prevent deformation of pipes or conduits.
