Smart Plug Brennenstuhl 1507050 White

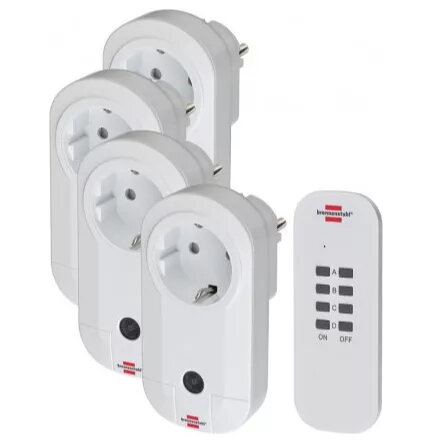

The Brennenstuhl 1507050 Smart Plug in white is a set of four indoor radio-frequency receivers with a matching 4-channel hand-held transmitter for remote switching of lamps and electrical appliances up to 1000 W. Designed for indoor use (IP20), the system uses self-learning coding (433.92 MHz) with permanent code storage and supports simultaneous control of single or multiple receivers from a distance of up to 25 meters. The package includes four receivers and one transmitter with a CR2032 battery; sockets have child protection.

Advantages

The kit provides simple and flexible installation through self-learning coding with more than 65,000 different codes to avoid interference. The receiver shows switch status and can be operated manually. Coding is stored permanently, even after long power failures. Child-protected sockets and a compact, color sales box complete the delivery.

Suitable for

• Remote switching of lamps and household appliances up to 1000 W
• Controlling multiple receivers simultaneously from one transmitter
• Indoor rooms such as living rooms, bedrooms, kitchens and offices (IP20)

Key specifications

• Product name: Smart Plug Brennenstuhl 1507050 White
• Switching capacity: 1000 W per receiver
• Frequency / range: 433.92 MHz / up to 25 m
• Coding: self-learning, >65,000 codes, permanent storage
• Included battery: 1 × 3 V (CR2032) for the hand-held transmitter
• Ingress protection: IP20 (indoor use)
• Contents: 4 × radio-frequency receiver, 1 × 4-channel hand-held transmitter
• Colour: White

How to use

Plug each receiver into a standard indoor socket and connect the appliance or lamp to the receiver. Use the included 4-channel hand-held transmitter to pair with receivers by following the self-learning coding procedure (pairing sequence available in the supplied manual). The transmitter allows switching each receiver individually or controlling several receivers at once; the receiver also has a manual switch and a status indicator.

Usage recommendations

Use the receivers only indoors (IP20) and within the specified switching capacity of 1000 W. Keep the transmitter within the effective range (up to 25 m) and replace the CR2032 battery when the signal weakens. Do not expose the devices to moisture or outdoor conditions.
