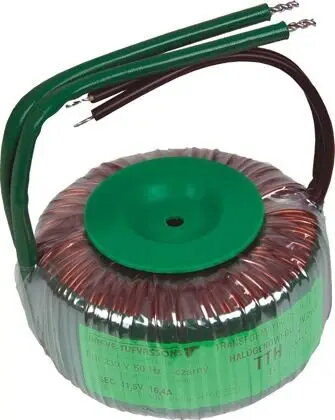

BREVE TTH 60 Toroidal Transformer 230/11.5V

The BREVE TTH 60 toroidal transformer is a high-performance component engineered for precise voltage conversion from 230V AC to 11.5V AC. Built with a compact toroidal core, this transformer provides a stable and reliable power supply for sensitive electronic equipment. Its design minimizes magnetic field interference and energy loss, ensuring consistent operation in demanding environments.

Advantages

The primary benefit of the BREVE TTH 60 is its toroidal construction, which offers significantly higher efficiency compared to traditional laminated transformers. This design results in a smaller physical footprint and reduced weight, making it easier to integrate into space-constrained enclosures. Furthermore, the transformer operates with minimal acoustic noise and low magnetic leakage, which is essential for maintaining signal integrity in audio or precision control systems.

Suitable for

• Powering low-voltage halogen lighting systems
• Supplying power to control electronics and automation modules
• Integration into compact industrial power supplies
• Use in audio equipment requiring stable AC voltage

When it may not be suitable

This transformer is not intended for applications requiring DC output, as it provides an AC voltage. It is also not suitable for high-power industrial machinery that exceeds its rated capacity or for outdoor environments without appropriate protective housing.

Key specifications

• Input voltage: 230V AC
• Output voltage: 11.5V AC
• Design: Toroidal core
• Application: Professional and industrial electronic systems

How to use

Installation should be performed by a qualified technician. Connect the primary 230V input leads to the appropriate power source, ensuring that all connections are properly insulated and secured. The secondary 11.5V output leads should be connected to the load device. Ensure that the total power consumption of the connected load does not exceed the rated power capacity of the transformer to prevent overheating or failure.

What to consider before purchase

• Verify that the required output voltage of your device matches the 11.5V specification.
• Ensure the total wattage of your load is within the transformer's rated capacity.
• Check the available space in your enclosure to ensure the physical dimensions are compatible.
• Confirm that the input voltage of your local power grid is compatible with the 230V rating.

Usage recommendations

Always install the transformer in a well-ventilated area to allow for proper heat dissipation. Ensure that the input and output circuits are protected by appropriate fuses or circuit breakers to prevent damage in the event of a short circuit.
