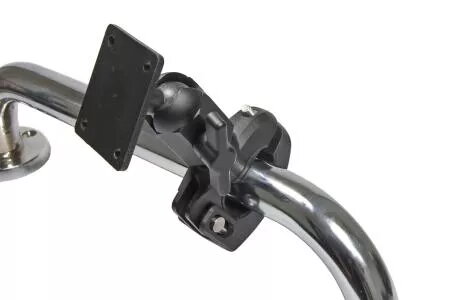

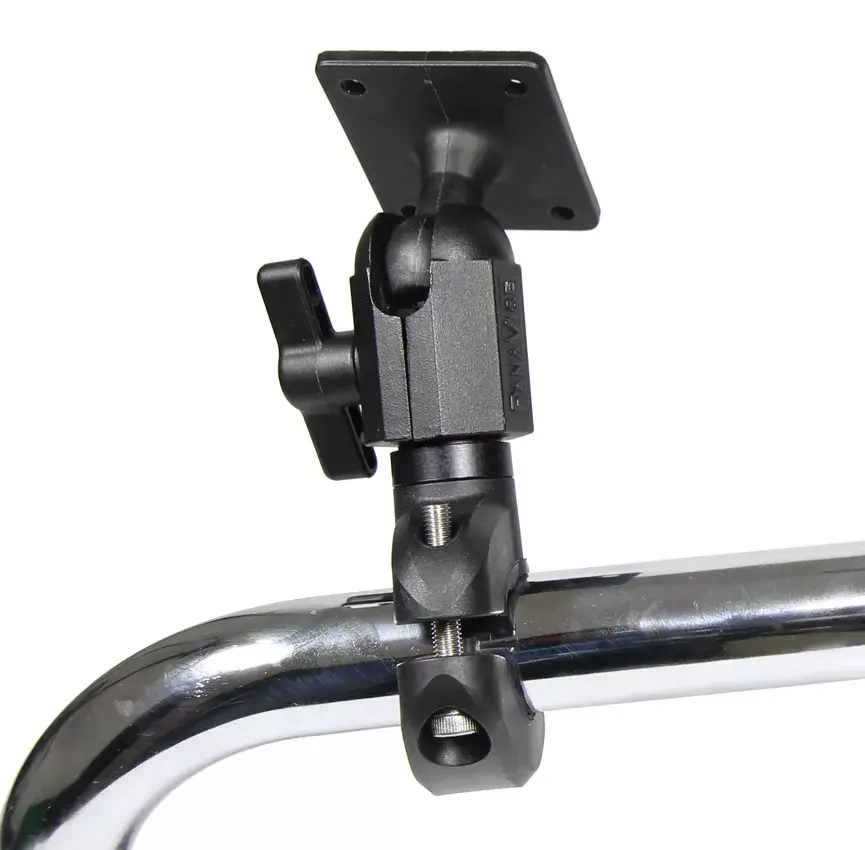

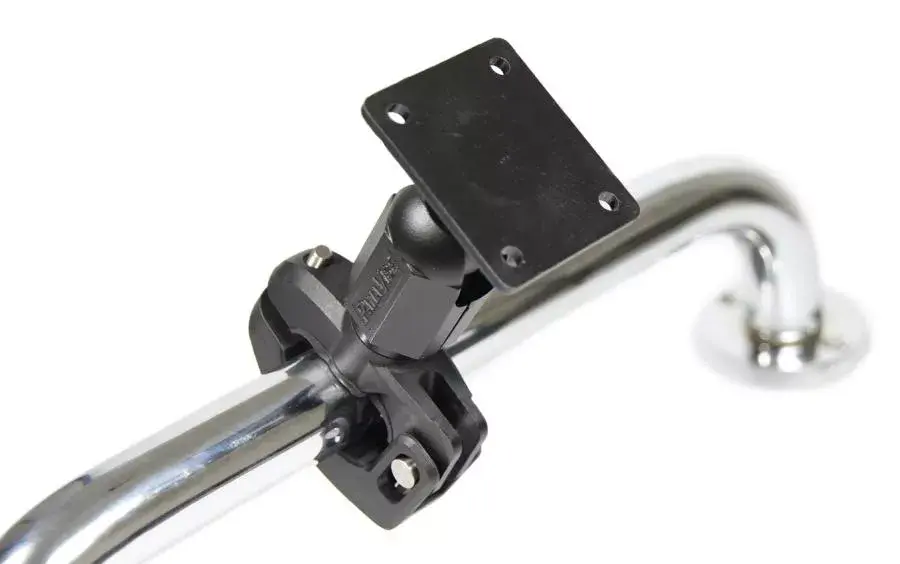

Brodit 215792 pipe mount with mounting plate for 22-31 mm rails Black Plastic

The Brodit 215792 pipe mount with mounting plate is a robust and practical accessory designed to secure devices firmly onto rails, tubes, and bars. Constructed from durable black plastic, this reliable mounting solution provides a stable platform for equipment in various transport and industrial environments. It features a versatile clamp mechanism and an integrated mounting plate equipped with pre-drilled AMPS holes, making it compatible with a wide range of device holders and equipment configurations.

Advantages

This pipe mount offers exceptional versatility through its adjustable design, fitting round bars with diameters between 22 and 31 mm as well as oblong bars ranging from 19x25 to 22x35 mm. The integrated mounting plate measures 50x42 mm and is mounted on a functional tilt swivel that allows 210 degrees of tilt and full 360-degree rotation, ensuring optimal viewing and operating angles for installed devices. The pre-drilled AMPS hole pattern facilitates quick and straightforward installation of compatible holders without the need for additional drilling. Built from sturdy black plastic, the mount withstands daily wear and tear while maintaining a secure grip on supporting rails.

Suitable for

• Installing communication devices and terminals on vehicle handlebars or roll cages
• Mounting equipment on motorcycles, bicycles, and ATVs
• Attaching holders and accessories on boats and marine vessels

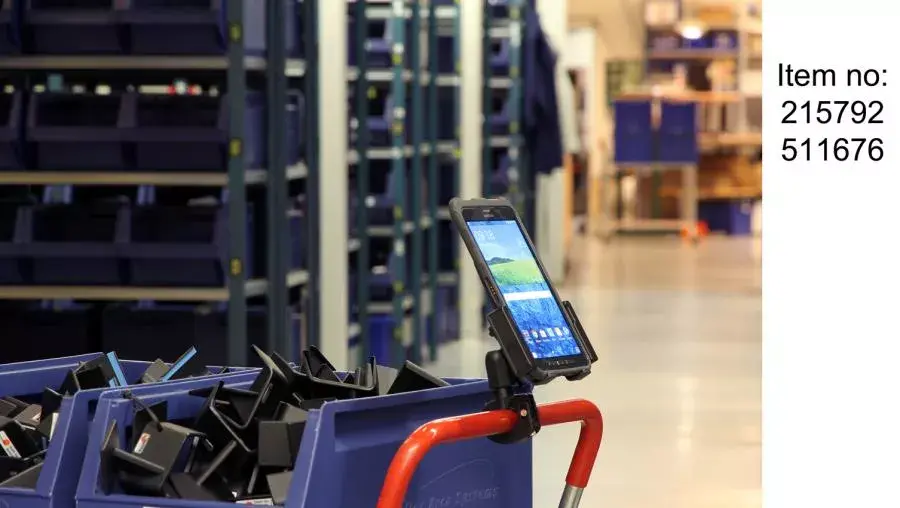

• Securing devices on industrial carts, warehouse equipment, and mobile stands
• Mounting gear on wheelchairs and mobility aids
• Setting up equipment on aircraft rails and specialized stands

When it may not be suitable

This pipe mount is not designed for surfaces other than compatible round and oblong rails within the specified diameter ranges, meaning it cannot be attached directly to flat walls or dashboards without an appropriate adapter. It may also be unsuitable for extremely heavy industrial machinery that exceeds the intended load capacity of standard plastic pipe mounts.

Key specifications

• Fits round bars with a diameter of 22 to 31 mm
• Fits oblong bars with dimensions of 19x25 to 22x35 mm
• Mounting plate dimensions: 50x42 mm
• Tilt swivel range: 210 degrees tilt, 360 degrees rotation
• Pre-drilled AMPS hole pattern
• Material: Durable black plastic

How to use

To install the pipe mount, select an appropriate section of a round or oblong rail that falls within the compatible dimensions of 22 to 31 mm or 19x25 to 22x35 mm. Position the clamp around the rail and secure it firmly using the provided hardware to ensure a stable grip. Attach your compatible device holder to the 50x42 mm mounting plate using the pre-drilled AMPS holes. Adjust the angle of the mounting plate by loosening the tilt swivel mechanism, positioning your device for optimal visibility and access, and then tightening the mechanism to lock it securely in place.

What to consider before purchase

• Measure the diameter or dimensions of your target rail or bar to confirm it falls within the 22-31 mm or 19x25-22x35 mm range
• Verify that your device holder features a matching AMPS hole pattern for direct compatibility with the 50x42 mm mounting plate
• Assess the operating environment to ensure plastic construction meets your durability requirements
• Check available space around the mounting location to ensure the tilt swivel range of 210 degrees and rotation of 360 degrees will not be obstructed

Usage recommendations: Regularly check the tightness of the clamp and tilt swivel mechanism to ensure the mount remains securely fastened during movement. Avoid overtightening screws to prevent damage to the plastic components. Ensure that installed devices do not obstruct operational controls or the field of vision.
