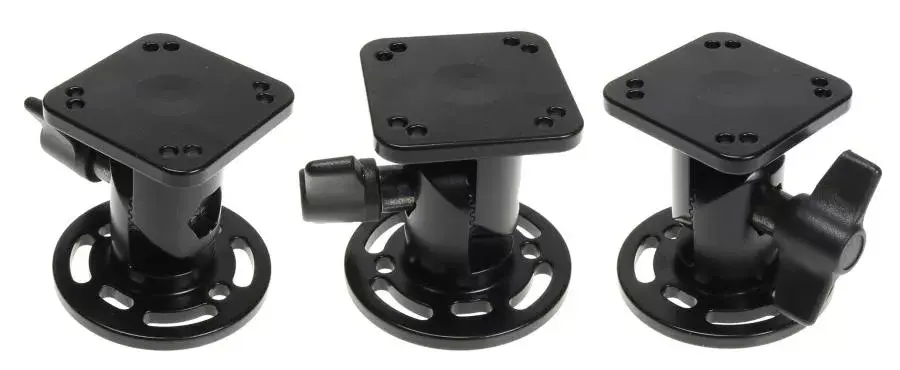

Brodit 215836 mounting kit in black with a length of 62 mm, round base, and a 50x50 mm square mounting plate featuring a wing nut

The Brodit 215836 mounting kit in black is designed for secure and stable installations in vehicles or on various surfaces. Featuring a compact length of 62 mm, a sturdy round base, and a 50x50 mm square mounting plate equipped with a convenient wing nut, this pedestal mount allows for reliable device positioning during everyday professional and personal use.

Advantages

This mounting kit offers exceptional stability and durability for holding devices firmly in place. The integrated wing nut in the interlocking joint enables quick and effortless angle adjustments without requiring complex tools. With extensive rotational and angular flexibility, users can easily position connected equipment for optimal viewing angles and operational convenience.

Suitable for

• Mounting electronic devices securely in vehicles
• Setting up displays or terminals on flat surfaces
• Professional fleet installations requiring adjustable positioning
• Personal navigation and communication device mounting

When it may not be suitable

This mounting kit may not be suitable for extremely heavy equipment that exceeds the weight capacity typical of standard pedestal mounts. Additionally, applications requiring permanent, non-adjustable fixed positioning without any articulation joints may benefit from alternative mounting solutions.

Key specifications

• Color: Black
• Total length: 62 mm
• Round base diameter: 64 mm with multiple holes for radial adjustment
• Square mounting plate dimensions: 50x50 mm with two sets of AMPS holes
• Angle adjustment range: Sideways in steps of 11.25 degrees up to a maximum of 180 degrees across 16 different positions
• Features an integrated wing nut in the interlocking joint

How to use

Begin by securing the round base to a suitable flat surface using the multiple radial adjustment holes for optimal alignment. Attach your compatible device or holder to the 50x50 mm square mounting plate using the AMPS hole pattern. Loosen the wing nut located in the interlocking joint to adjust the angle to your preferred position, moving it sideways in the specified steps up to 180 degrees. Once the desired viewing angle is achieved, tighten the wing nut firmly to lock the position in place.

What to consider before purchase

• Verify that your device or holder is compatible with the 50x50 mm square plate and AMPS hole pattern
• Ensure the selected mounting surface can safely support the base dimensions and weight
• Check the available clearance for the 62 mm length and articulation range in your intended installation area

Usage recommendations: Regularly check the wing nut and mounting screws to ensure they remain tightly fastened, especially when used in mobile environments subject to continuous vibration and movement.
