Wire Connector METZ CONNECT 1401100810MI Metallic

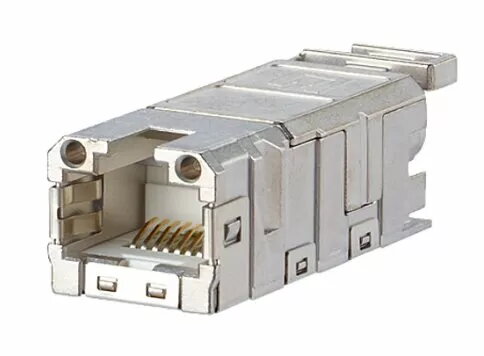

The METZ CONNECT 1401100810MI Metallic wire connector is an RJ45 Cat.6 (class EA) field-assembled jack designed for mounting in compatible IP67 flange housings (variants 1, 4, 5 and 14). It provides 10 Gbit Ethernet performance per IEEE 802.3an and complies with ISO/IEC 11801 Ed.2.2:2011-06 and DIN EN 50173-1:2011-09. The connector supports Power over Ethernet (PoE, PoE+ and UPoE) and is built with a solid zinc die-cast housing for mechanical durability.

Advantages

This metallic RJ45 jack meets Cat.6 class EA requirements and delivers 10 Gbit transfer rates while allowing easy field assembly without special tools. Its two-part design simplifies installation and reconnection, while four spring-loaded shield plates increase resistance to vibration and shock. The connector includes two FS 2.8 mm grounding connections for equipotential bonding at the cable end and offers multiple pin assignment variants (T568A, T568B, PROFINET). Compatible AWG conductor ranges are AWG 26/7 to 22/7 and optionally AWG 26/1 to 22/1. The design avoids protruding contours, facilitating flush mounting in housings.

Suitable for

• Outdoor and industrial network installations requiring IP65/IP67 protection when mounted in appropriate flange housings
• High-speed Ethernet links up to 10 Gbit (Cat.6 class EA)
• Power over Ethernet deployments (PoE, PoE+, UPoE)
• Field termination and maintenance where quick reconnection is needed

Key specifications

• Type: RJ45 jack, Cat.6 class EA
• Standards: ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, IEEE 802.3an
• Data rate: up to 10 Gbit
• PoE support: PoE, PoE+, UPoE
• AWG range: 26/7–22/7; optionally 26/1–22/1
• Grounding: 2 × FS 2.8 mm equipotential bonding points
• Housing: solid zinc die‑cast
• Assembly: 2 parts, no special tools required

How to use

Assemble the two-part RJ45 jack onto the prepared cable conductors following the chosen pin assignment (T568A, T568B or PROFINET). Mount the assembled jack into a compatible IP67 flange housing variant (1, 4, 5 or 14). Ensure equipotential bonding by connecting the cable end to the two FS 2.8 mm grounding points. When installed in the correct housing and sealed as specified, the combination provides ingress protection up to IP65. No special tools are required for assembly; reconnecting or servicing can be performed easily due to the simple two-part design.

Usage recommendations

Use the connector within the specified AWG conductor range and select the appropriate pin assignment for your network. For outdoor or harsh environments, always install the jack into a compatible IP67 flange housing and verify sealing to achieve the intended ingress protection. Regularly check grounding connections and shield contact springs for reliable long-term performance.
