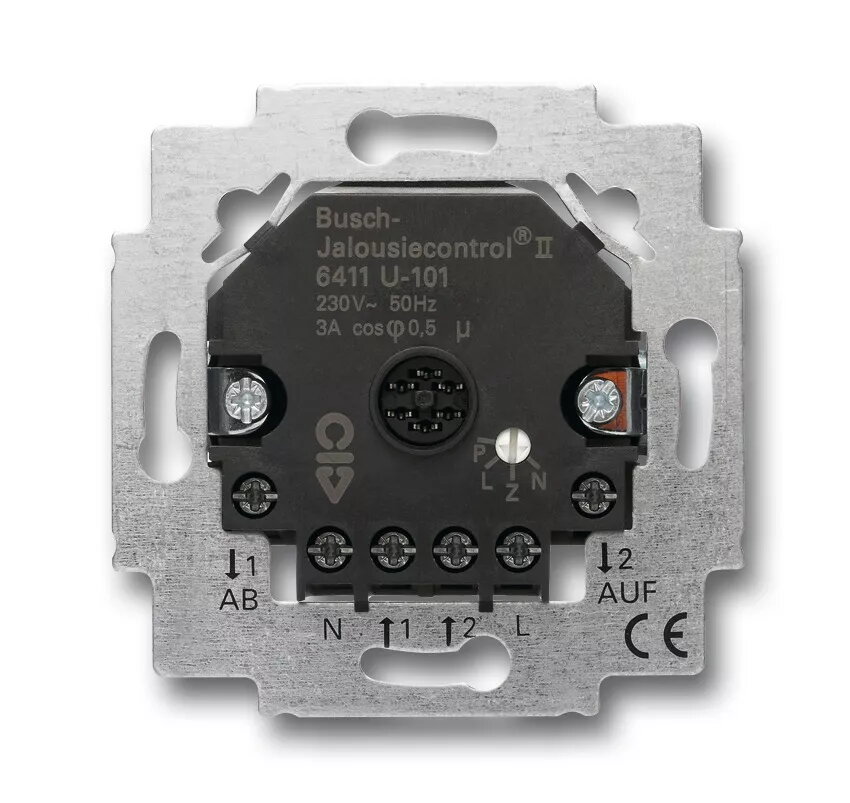

Flush-mounted blind/shutter actuator Busch-Jaeger 6411 U-101, 2 channels, 230 V, 690 W, 71×71×33 mm

Busch-Jaeger 6411 U-101 is a flush-mounted blind and shutter actuator with two independent channels designed for controlling roller blinds, shutters and awnings. It fits standard flush boxes (71×71×33 mm) and works with motors that use mechanical or electronic limit switches. The device supports group control via two 230 V multi-way input terminals and offers multiple operating modes including normal, louvre, base station and position. It is compatible with several Busch-Jaeger control covers and control elements and has a running time of 3 minutes.

Advantages

The actuator provides two normally open outputs and supports a rated current of 3 A (cos φ 0.5) with a rated power of up to 690 VA, allowing reliable control of common blind and awning motors. Compact dimensions allow installation in standard flush-mounted boxes. Built-in mode switch and party function provide flexible local and central control options, and extension inputs accommodate wind alarm and cleaning functions.

Suitable for

• Roller blinds with mechanical or electronic limit switches
• Exterior or interior awnings and shutters
• Group control installations using 230 V multi-way inputs

Key specifications

• Rated voltage: 230 V~, +10 % / -10 %
• Rated frequency: 50 Hz
• Outputs: 2 normally open contacts
• Rated current: 3 A, cos φ 0.5
• Rated power: 690 VA
• Running time: 3 min
• Operating temperature (device): 0 °C to 35 °C
• Dimensions: 71 × 71 × 33 mm
• Compatibility: compatible with types 6411 U/x and Busch-Jaeger control covers 6430-xx-xxx; IR control element 6066-xx-xxx; comfort timer 6455-101-500

How to use

Install the flush-mounted actuator in a standard flush box and connect motor lines and the two 230 V multi-way input terminals (Up/Down) according to the installation instructions. Select the required operating mode using the built-in mode switch (normal, louvre, base station, position). When used with the appropriate control cover and control elements, enable the party function if temporary disabling of local control is needed. Use extension input for wind alarm or cleaning functions where required.

Usage recommendations

Use the actuator only with compatible motors that have mechanical or electronic limit switches and ensure the total load does not exceed the rated power of 690 VA. For safe and correct installation, follow Busch-Jaeger wiring diagrams and local electrical regulations; mounting and commissioning by a qualified electrician is recommended.
