Cable Gland (Dławnica czopowa) Busch Polska AM 90 for Pipes with Internal Diameter 86–100 mm

Busch Polska AM 90 is a pin-type cable gland engineered for installation in pipes with an internal diameter of 86–100 mm. It provides a sealed, mechanically secure passage for cables through pipe walls, delivering strain relief and protection against dust and moisture where the mating materials and seals are compatible. The design targets industrial and infrastructure cabling applications requiring a robust pipe-to-cable transition and simple, reliable installation.

Advantages

The AM 90 cable gland offers a compact solution for routing and securing cables in conduits with a defined internal diameter range. Its pin-type configuration facilitates a stable mechanical connection that reduces stress on cable conductors and terminations. The component is intended to form a reliable barrier against ingress when combined with appropriate sealing elements, minimizing potential contamination and supporting maintenance of cable integrity. Installation is straightforward, making it suitable for repeated use in retrofit or new-build projects.

Suitable for

• Industrial cable runs in conduits with internal diameters of 86–100 mm
• Infrastructure and utility installations requiring protected pipe-to-cable transitions
• Situations needing mechanical strain relief for medium to large cables
• Retrofit and new installations where a threaded or pin-type gland is preferred

When it may not be suitable

This cable gland is designed specifically for pipes with internal diameters between 86 and 100 mm; it may not provide an adequate fit or seal in smaller or significantly larger conduits. It is also dependent on compatible sealing materials and correct installation to achieve dust- and moisture-resistant performance, so it may not be appropriate where full ingress protection cannot be achieved or where integrated multi-cable sealing systems are required.

Key specifications

• Type: pin‑type (dławnica czopowa) cable gland

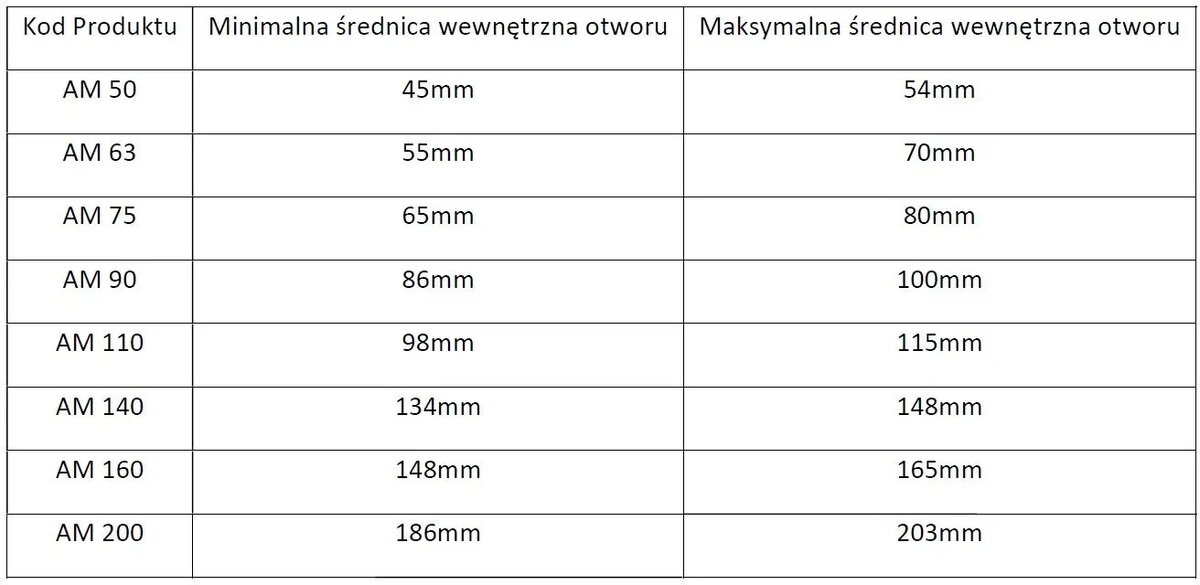

• Compatible pipe internal diameter: 86–100 mm
• Main function: cable securing, strain relief and entry sealing support
• Typical application: industrial and infrastructure conduit installations
• Mounting: designed for installation in conduit walls or pipe openings

How to use

Prepare the pipe opening ensuring the internal diameter falls within the 86–100 mm range and that edges are free of burrs or debris. Insert the AM 90 gland into the pipe wall or opening according to the mounting orientation required, and position the cable through the gland pin. Apply any required sealing or compression elements specified for the given cable diameter and environmental conditions. Tighten or secure the gland per the installer’s guidance to achieve mechanical strain relief and the intended sealing performance. Verify the installation visually and, if applicable, with ingress protection or continuity tests.

What to consider before purchase

• Confirm the internal diameter of the conduit is between 86 and 100 mm.
• Check cable outer diameter and compatibility with the gland’s sealing or compression elements.
• Ensure required environmental protection levels can be achieved with the selected seals and installation method.
• Verify material compatibility with the conduit and cable sheathing to avoid corrosion or degradation.

Usage recommendations

Use the AM 90 with appropriate sealing inserts or grommets matched to cable diameter, and follow local electrical and installation codes. For environments with high moisture or dust exposure, confirm sealing materials and installation technique meet the necessary ingress protection standards before commissioning.
