POS system accessory Capture CA-DC-134 VESA mount 75 x 75 mm, 800 g

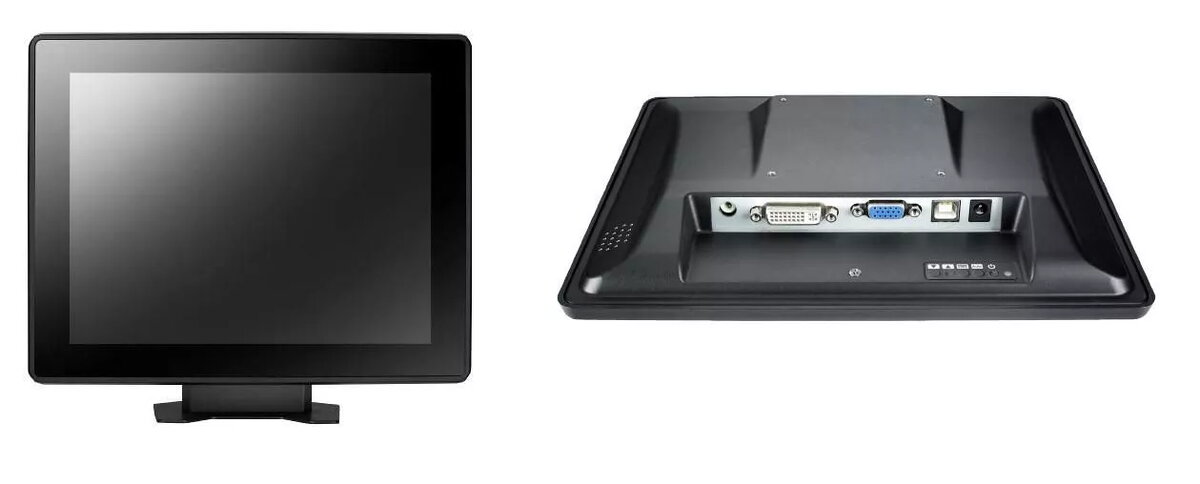

Capture CA-DC-134 is a POS system accessory with a VESA 75 x 75 mm mounting pattern, designed to support compact POS displays and peripherals. The unit features a 1024 x 768 resolution VA LCD panel with a 4:3 aspect ratio and a projected capacitive multi-touch interface supporting up to 10-point touch. The design is slim and robust with a metal back cover for improved thermal dissipation, sealed touch protection against dirt and splashes, and LED backlighting for energy efficiency. The product is made in Taiwan and packaged using recyclable corrugated fiberboard.

Advantages

The Capture CA-DC-134 combines a wide viewing-angle VA panel and LED technology to provide clear visuals with lower power consumption. Its sealed touch surface and durable metal back cover increase reliability in retail and POS environments. Installation is flexible with support for portrait, landscape, and tabletop orientations, an aluminum stand with VESA 75 x 75 mm mounting and an adjustable angle up to 90 degrees. Individual OSD control buttons are key-lockable and the unit includes a power indicator and multiple I/O ports. Optional surface treatments (AR, AG, AF, AS) are available to match different application requirements.

Suitable for

• Mounting compact POS displays or peripherals requiring VESA 75 x 75 mm
• Retail checkout and point-of-sale counters
• Self-service kiosks and table-top terminals
• Environments needing a sealed touch surface against dust and splashes

Key specifications

• Model: Capture CA-DC-134 (MPN CA-DC-134, EAN 5704174819011)
• VESA mounting: 75 x 75 mm
• Weight: 800 g (net), package weight approx. 1 kg
• Display resolution: 1024 x 768, aspect ratio 4:3
• Panel type: VA LCD with wide viewing angle
• Touch: Projected capacitive, 10-point multi-touch
• Protection: Sealed touch screen against dirt, dust, and splashing water
• Stand: Aluminum desktop stand with adjustable angle up to 90°
• Materials: Metal back cover for thermal dissipation
• Backlight: LED for energy saving
• Optional coatings: AR, AG, AF, AS
• Packaging: Recyclable corrugated fiberboard
• Country of origin: Taiwan

How to use

Attach the Capture CA-DC-134 to a compatible VESA 75 x 75 mm mount or use the included aluminum desktop stand. Adjust the display orientation to portrait, landscape or table-top and set the viewing angle up to 90 degrees as needed. Connect required I/O ports to your POS system and use the individual OSD control buttons for display adjustments; buttons can be key-locked to prevent unintended changes. Follow standard safety and mounting instructions provided with your POS hardware when installing.

Usage recommendations

For reliable long-term operation, install the unit in environments that meet the device’s protection level against dust and splashes, use the metal back cover to maintain adequate ventilation for heat dissipation, and choose optional AR/AG/AF/AS coatings based on your application’s glare and cleanliness requirements.
