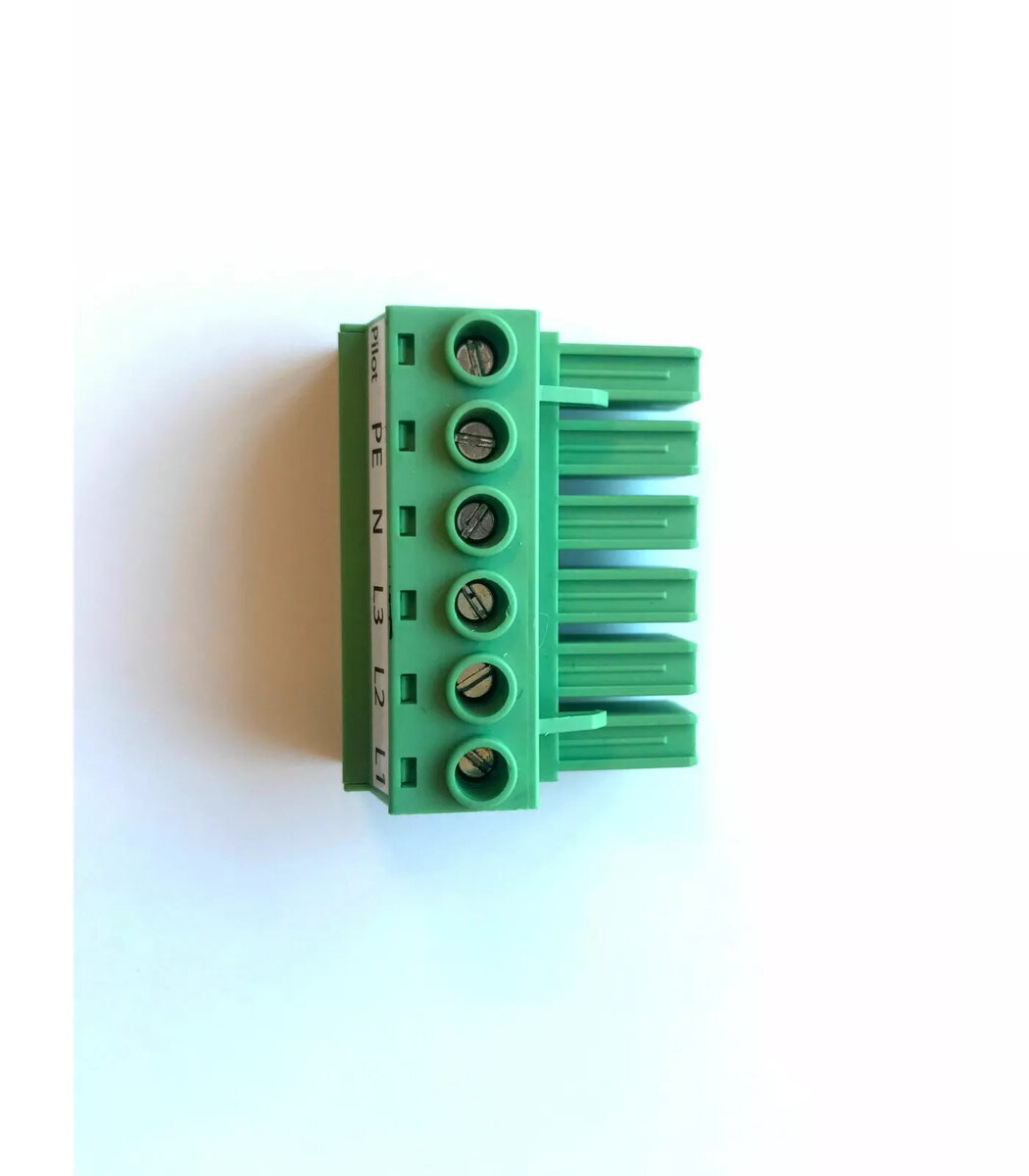

Terminal block plug-in Charge Amps CA-101005 for 16–32 A connections

The Charge Amps terminal block plug-in CA-101005 is designed for reliable electrical connections within charging equipment and related installations. Intended for conductor termination in the 16–32 A current range, this compact removable connector supports maintenance and rapid replacement without altering fixed wiring. The product fits applications where a secure, serviceable connection point is required for charging stations, distribution panels, or modular electrical assemblies.

Advantages

This plug-in terminal block offers compact dimensions for installations with limited space while maintaining rated current capacity for 16–32 A circuits. The removable design simplifies replacement and servicing, reducing downtime during maintenance. A standardized plug-in interface ensures consistent contact pressure and reliable electrical continuity, and the construction is suitable for repeated mating cycles typical in professional service environments.

Suitable for

• Wiring and conductor termination in EV charging stations
• Modular distribution panels and switchgear
• Serviceable connections in commercial and industrial electrical installations
• Applications requiring quick replacement or modular assembly

Key specifications

• Rated current range: 16–32 A
• Type: plug-in terminal block (removable connector)
• Connection style: conductor termination suitable for stranded and solid wires
• Typical use environment: charging equipment and electrical distribution assemblies
• Mechanical design: repeated mating capability for maintenance and replacement

How to use

Mount the plug-in terminal block into the matching socket or rail provided in the charging station or panel assembly, ensuring the connector is fully engaged. Prepare conductors by stripping insulation to the recommended length for the terminal type, insert wires into the termination points, and secure according to the installer’s torque settings or clamping mechanism specified for the terminal. For service or replacement, disconnect power, unplug the terminal block from its socket and replace or inspect contacts before reinstallation. Follow applicable national electrical codes and the equipment manufacturer’s installation instructions.

Usage recommendations

Use the terminal block within its rated current range and in environments consistent with the equipment’s specifications. Verify conductor size compatibility and torque values during installation, and perform routine inspections during scheduled maintenance to confirm secure connections and absence of corrosion or damage.
