Chief LVSXU ConnexSys Video Wall Landscape Mounting System for 42 to 80 Inch Screens with 700x400 VESA Max Weight 68.04 kg Black

The Chief LVSXU ConnexSys Video Wall Landscape Mounting System is a professional wall-mounted solution designed to securely support large flat-panel screens in multi-display configurations. Engineered for reliability and precision, this mounting system accommodates displays ranging from 42 to 80 inches with a maximum weight capacity of 68.04 kg. It features a versatile black finish and is built to solve common installation challenges such as alignment, speed, and serviceability in commercial and professional environments.

Advantages

The Chief LVSXU ConnexSys mounting system provides exceptional structural rigidity, ensuring that displays remain securely in place even when extended for maintenance or subjected to accidental bumps. Its innovative design allows installers to achieve precise multi-display alignment quickly and efficiently. The system utilizes tool-free latching for secure display attachment and incorporates accessible adjustment points to simplify fine-tuning during and after installation. By shipping without rails, it allows installers to source local strut channels for flexible multi-unit setups.

Suitable for

• Professional video wall installations in corporate lobbies and boardrooms
• Monitoring and control rooms requiring multi-display setups

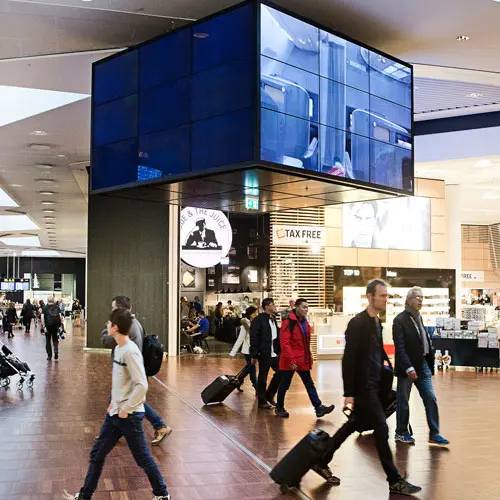

• Digital signage displays in retail environments and public spaces
• Control centers needing reliable service access for large screens

When it may not be suitable

This mounting system is not designed for ceiling or mobile cart installations, as it is strictly intended for secure wall mounting. It may also be unsuitable for screens smaller than 42 inches or larger than 80 inches, as well as displays exceeding the maximum weight capacity of 68.04 kg.

Key specifications

• Supports screen sizes from 42 to 80 inches
• Maximum weight capacity of 68.04 kg
• Compatible with VESA mounting standards from 200 x 100 mm to 700 x 400 mm
• Tilt angle range from -2.5 to 4 degrees
• Wall mounting type with landscape orientation
• Durable black finish

How to use

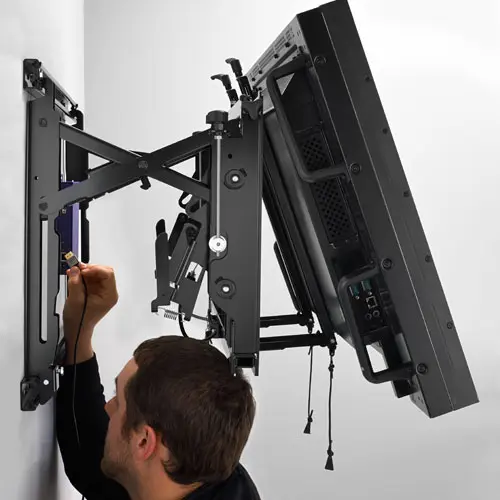

To install the Chief LVSXU ConnexSys Video Wall Landscape Mounting System, securely attach the wall brackets using locally sourced compatible strut channels to ensure proper row leveling and structural support. Adjust the mounting position using the integrated adjustment points to achieve the desired tilt and depth alignment. Mount the compatible display screen onto the system, ensuring the tool-free latches engage securely. Utilize the extension mechanism when maintenance or cable servicing is required, and return the display to its locked home position once service is complete.

What to consider before purchase

• Verify that your display screen falls within the 42 to 80 inch size range
• Check that the total weight of the screen does not exceed 68.04 kg
• Confirm that your display matches the VESA mounting pattern between 200 x 100 mm and 700 x 400 mm
• Ensure the installation wall is structurally capable of supporting the combined weight of the mount and displays
• Note that rails are not included and must be sourced locally if required

Usage recommendations

Always verify wall structural integrity and consult a professional installer to ensure safe mounting of multi-display video wall configurations. Periodically check all adjustment points and latches to maintain optimal alignment and display security over time.
