Short description

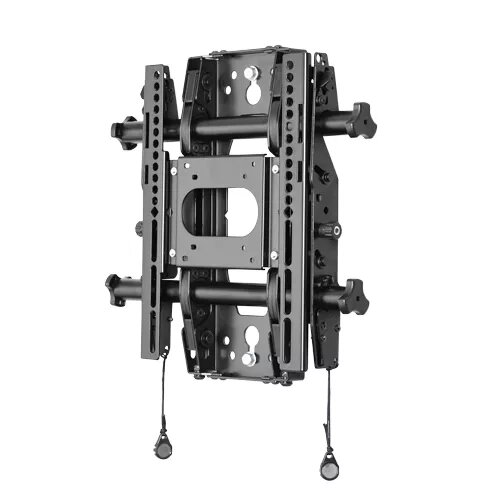

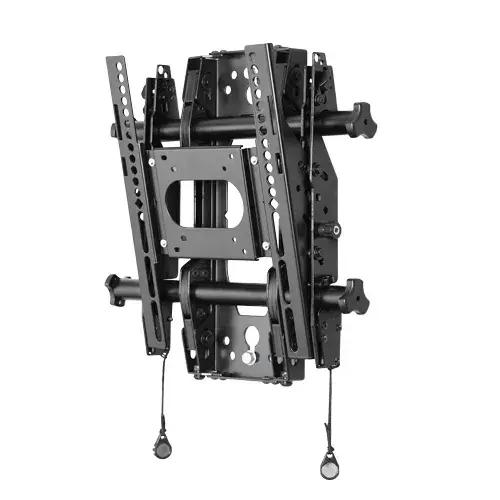

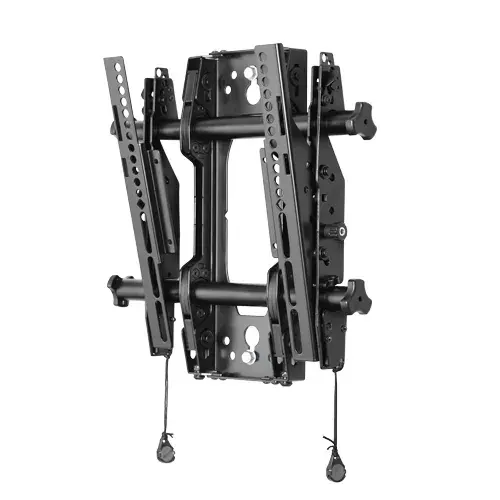

The Chief STMS1U is a small tilt wall mount designed for screens ranging from 24 to 32 inches. It supports a maximum weight of 34 kg and offers a height adjustment range of 0 to 25 mm. The mount is compatible with VESA sizes from 75 x 75 mm to 300 x 300 mm and allows a tilt angle adjustment from -12 to 2 degrees. Its sleek black design ensures a modern look while providing sturdy support for your display.

Available for order: 4 pcs.

Warranty: 2 Years

SKU: 4153780

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

20.07.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

23.07.2026 {{selectedOffer.courierDeliveryString}}

From 6.46 € (Weight: 7.10 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

23.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Chief STMS1U tilt wall mount is designed for 24–32" flat-panel displays, providing a low-profile and installer-friendly mounting solution. It supports displays up to 34 kg, fits VESA patterns from 75 x 75 mm to 300 x 300 mm, and offers a small range of tilt and height adjustment to achieve precise positioning for narrow-bezel screens.

Advantages

The single-stud Fusion-inspired design conceals the mount behind slim displays and includes Centris low-profile tilt that balances the screen around its center of gravity. ControlZone leveling enables post-installation height and leveling fine-tuning, while ClickConnect Latching produces an audible click when the display engages. Additional features include lockable tilt positions (0°, -6°, -12°), post-installation lateral positioning, stackable nesting spacers to set depth, integrated security, Quick-Store magnetic cord management, set screws for long-term rigidity, and a custom hardware kit for staged installations.

Suitable for

Installing 24–32" flat-panel TVs or monitors with narrow bezels
Retail displays, corporate meeting rooms, and digital signage
Installations requiring low-profile mounting and concealed hardware

Key specifications

Compatible screen size: 24–32 inches
Maximum load: 34 kg
VESA compatibility: 75 x 75 mm to 300 x 300 mm
Tilt range: -12° to 2° (lockable at 0°, -6°, -12°)
Height adjustment: 0–25 mm
Finish: Black
Model / MPN: Chief STMS1U
EAN: 0841872147413

How to use

Mount the STMS1U to a single stud following the included hardware kit and hang the display on the mount rails. Use ClickConnect to audibly confirm the display is engaged, then apply set screws for permanent stability. Use ControlZone adjustments to level and fine-tune height after hanging, and select the required tilt lock position (0°, -6° or -12°). Stack nesting spacers if additional clearance is needed and route cords to the Quick-Store magnetic holders for tidy cable management.

Usage recommendations

Ensure the supporting stud and wall structure can handle the display weight (up to 34 kg). Verify VESA compatibility with your display before installation, and use the provided hardware kit. For staged installations, hang the hardware from the mount rails as supplied and perform final leveling and tilt locking after the display is in place.

Specifications

Maximum VESA mount:: 300 x 300
Maximum weight capacity:: 34 kg
Number of displays supported:: 1
Maximum screen size:: 32 "
Product colour:: Black

All features

Weight & dimensions

Height:: 359 mm
Width:: 362 mm
Depth:: 51 mm
Height adjustment:: Yes
Height adjustment range:: 0 - 25

Logistics data

Harmonized System (HS) code:: 85299097

Other features

Certification:: UL Listed

Features

Product colour:: Black
Tilt angle range:: -12 - 2

Mounting

Maximum weight capacity:: 34 kg
Depth (min):: 51 mm
Mounting type:: Wall
Minimum screen size:: 24 "
Maximum screen size:: 32 "
Number of displays supported:: 1
Minimum VESA mount:: 75 x 75
Maximum VESA mount:: 300 x 300
